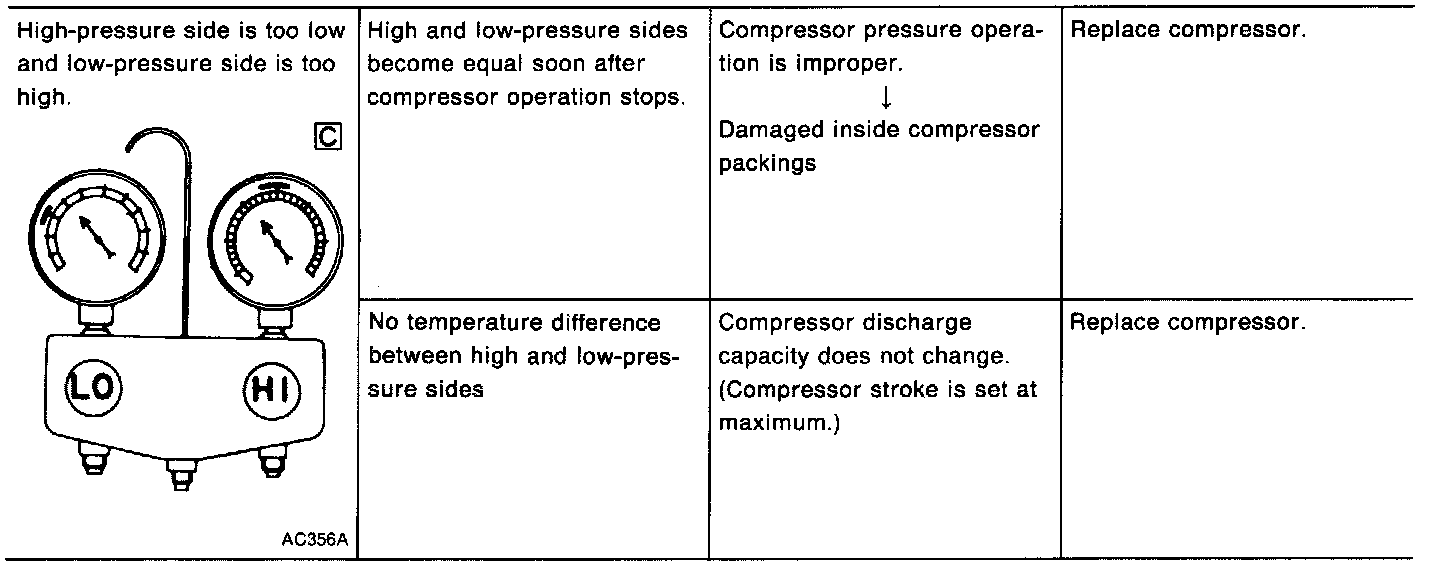

Chart C - High Pressure Too Low and Low Pressure Too High
Chart C - High Pressure Too Low and Low Pressure Too High
Performance Test Diagnosis:
