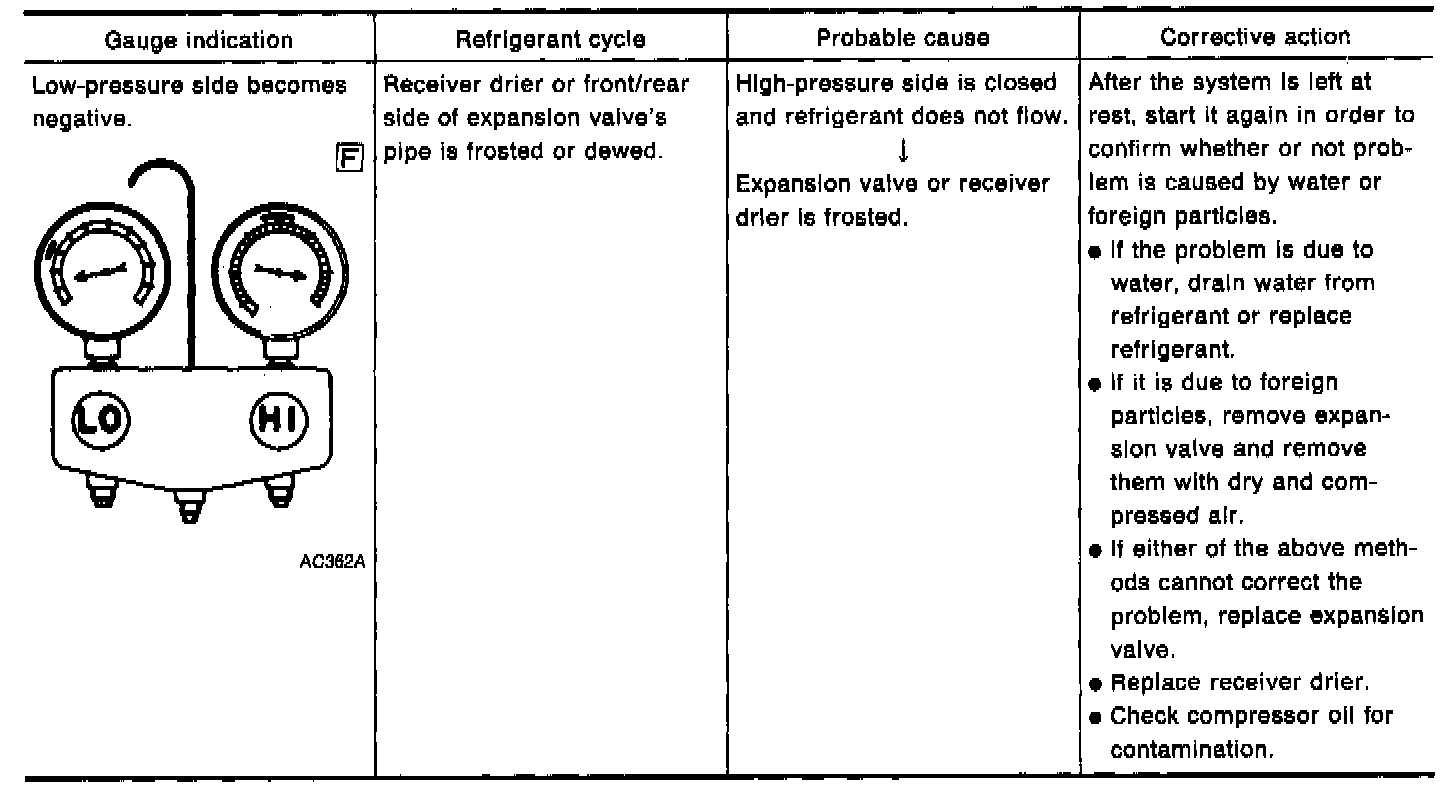

Chart F - Low Pressure Becomes Negative
Chart F - Low Pressure Becomes Negative
Performance Test Diagnosis:
