Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
M Connectors, Main
M Connectors, Main

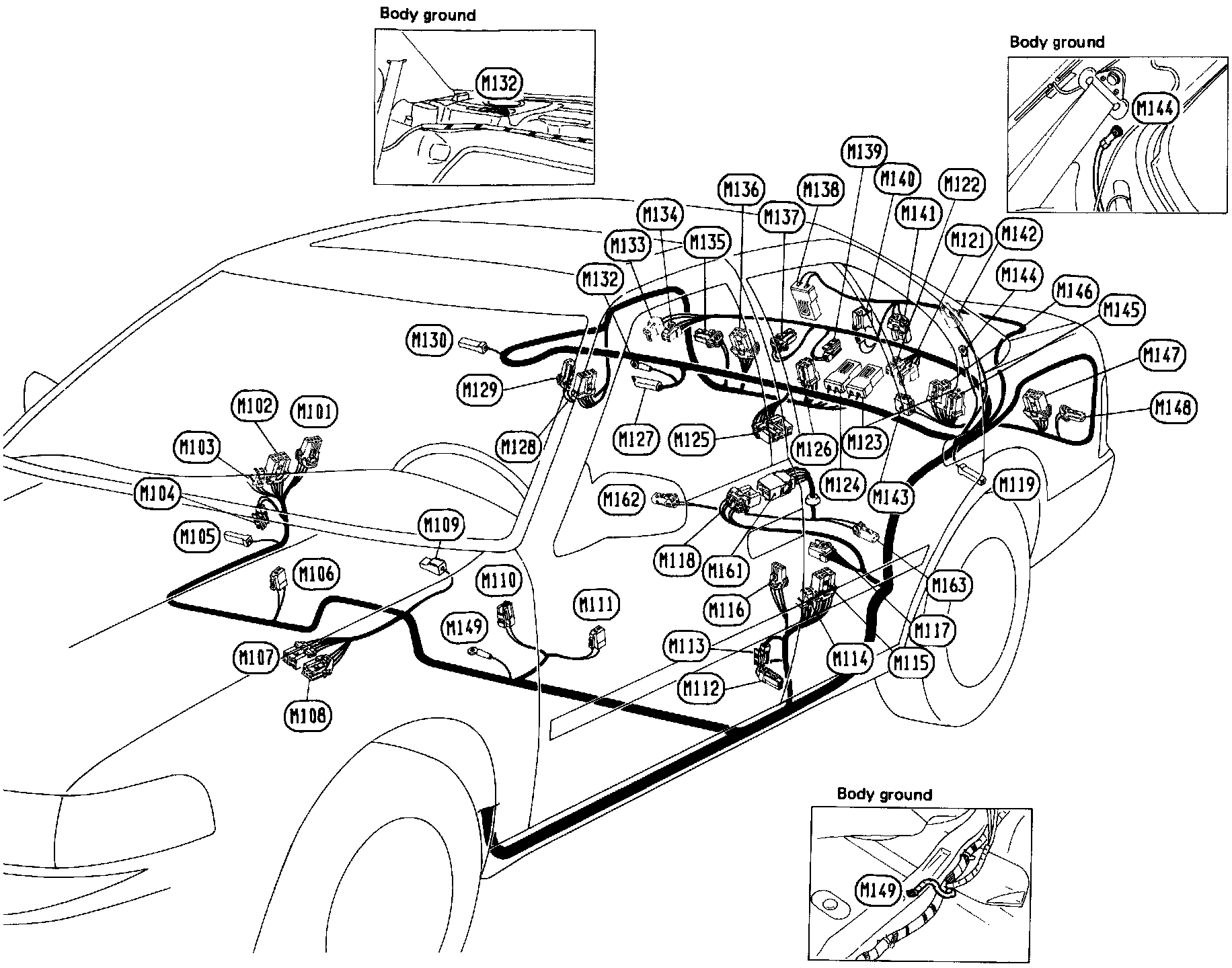

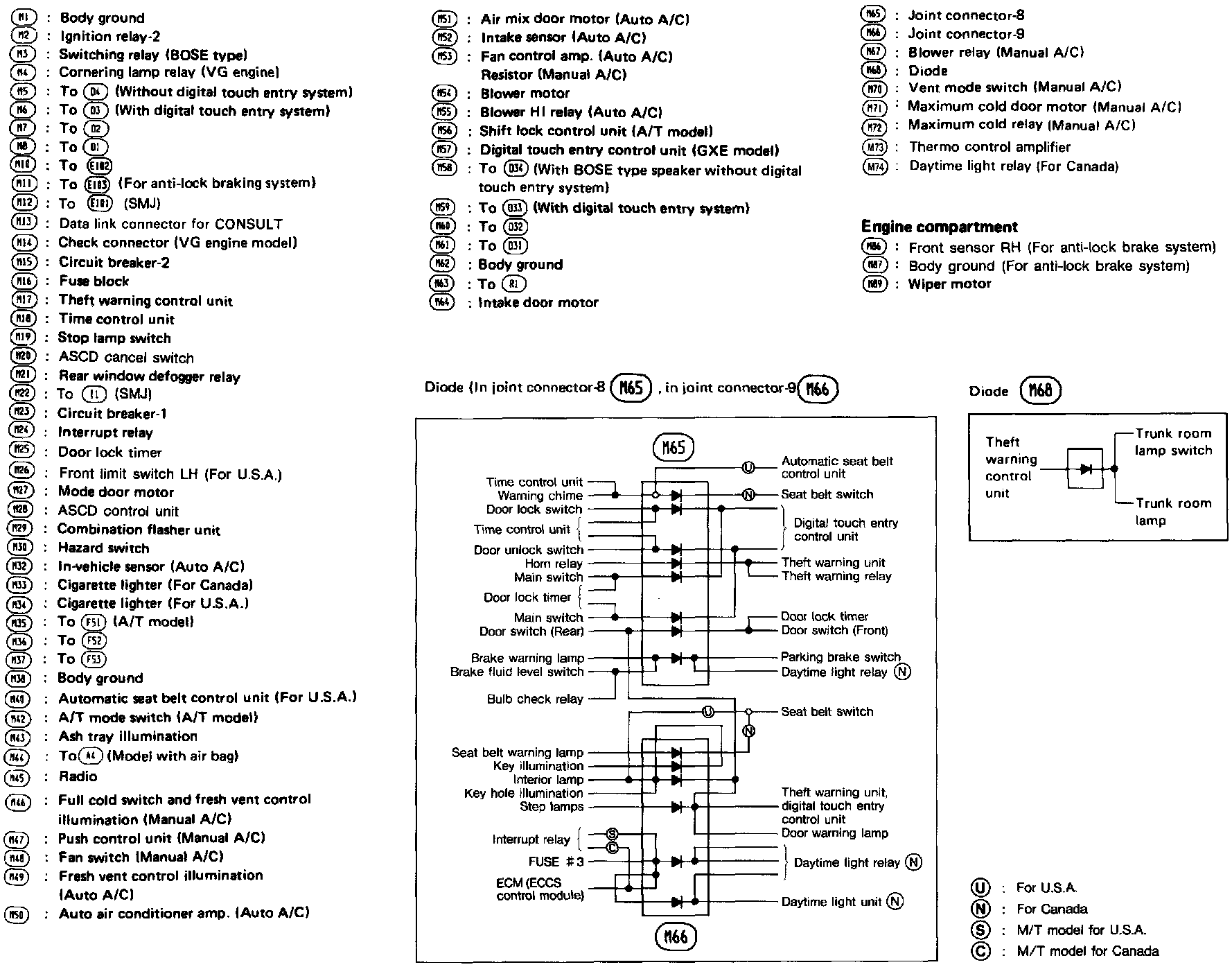

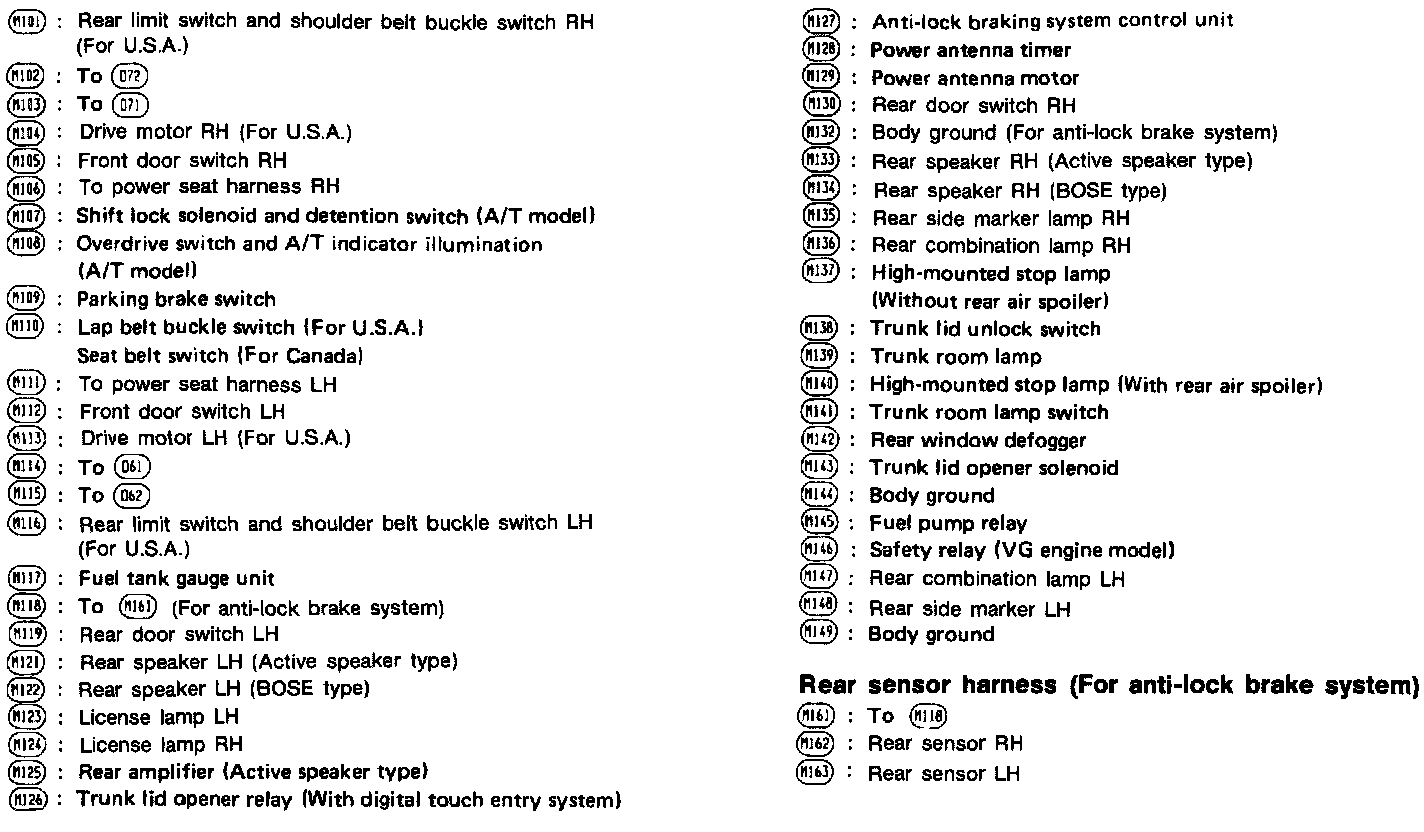

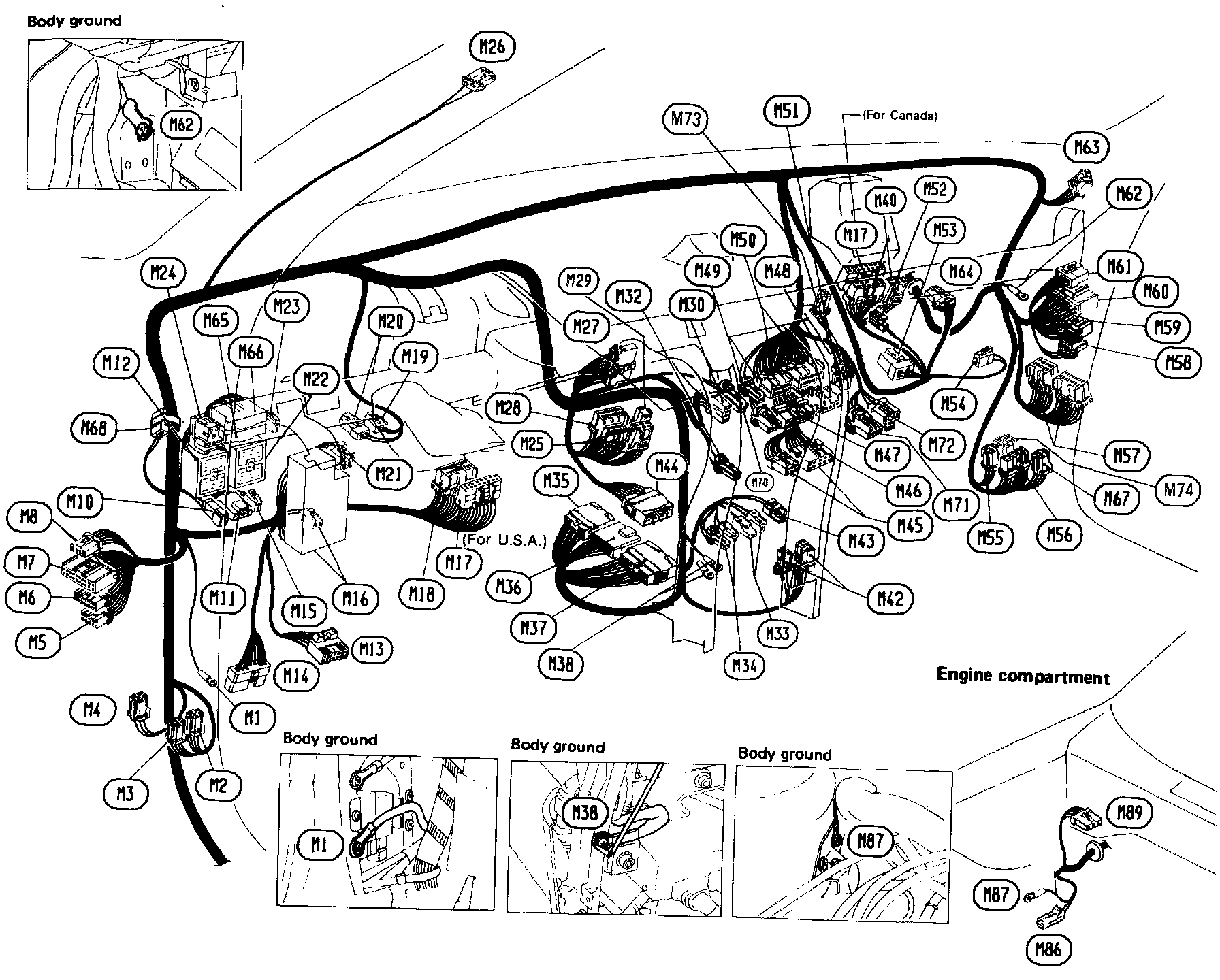

Main Harness:
Main Harness:
Main Harness:
Main Harness:
