A/T Only

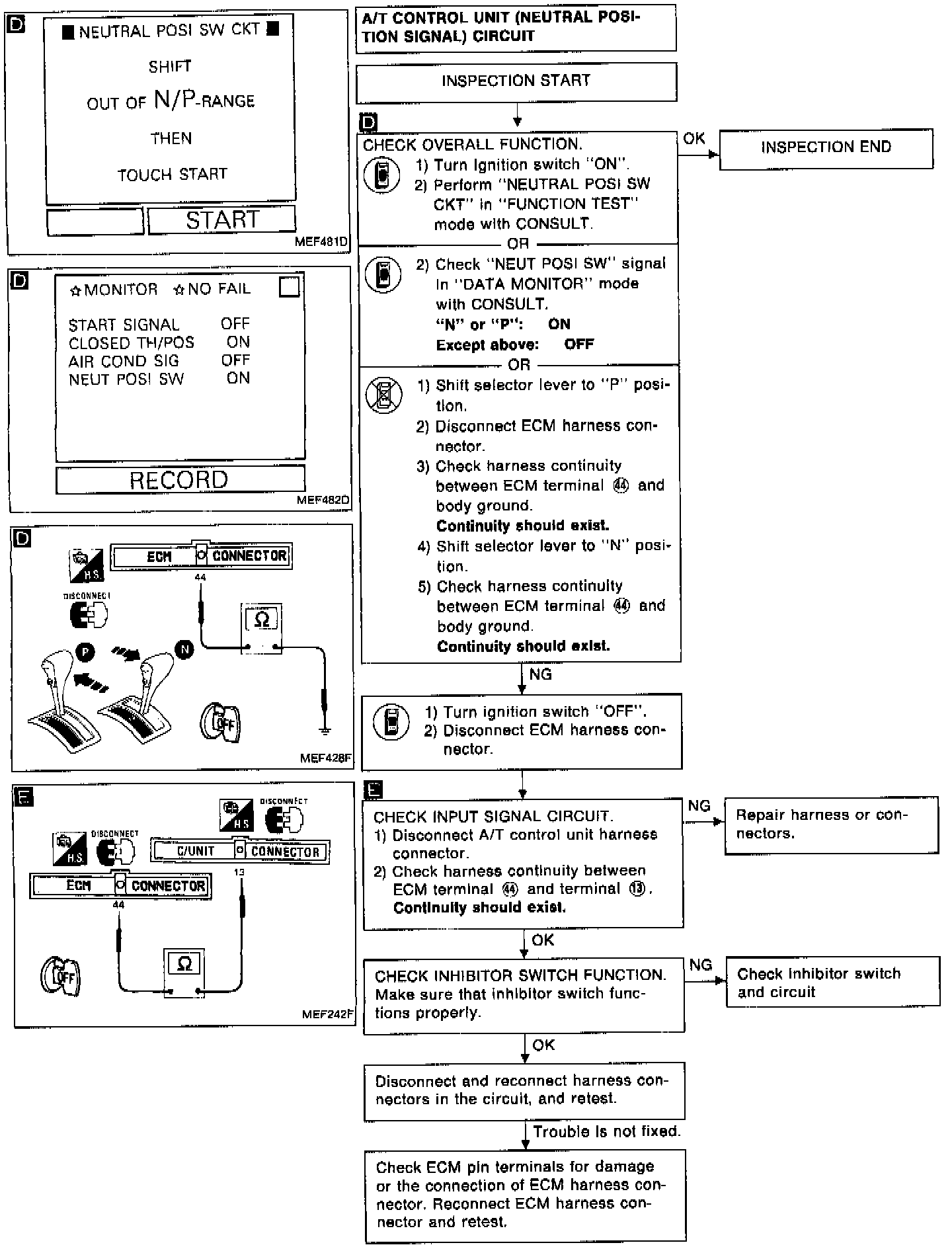

A/T Control Unit (Neutral Position Signal) Circuit Diagnostic Chart:

DIAGNOSTIC CHART

Neutral Position Switch/AT Control Unit (Neutral Position Signal) Circuit:

CIRCUIT DIAGRAM

Harness Layout:

HARNESS LAYOUT
