Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Diagrams
>>
Vacuum Routing
Vacuum Routing

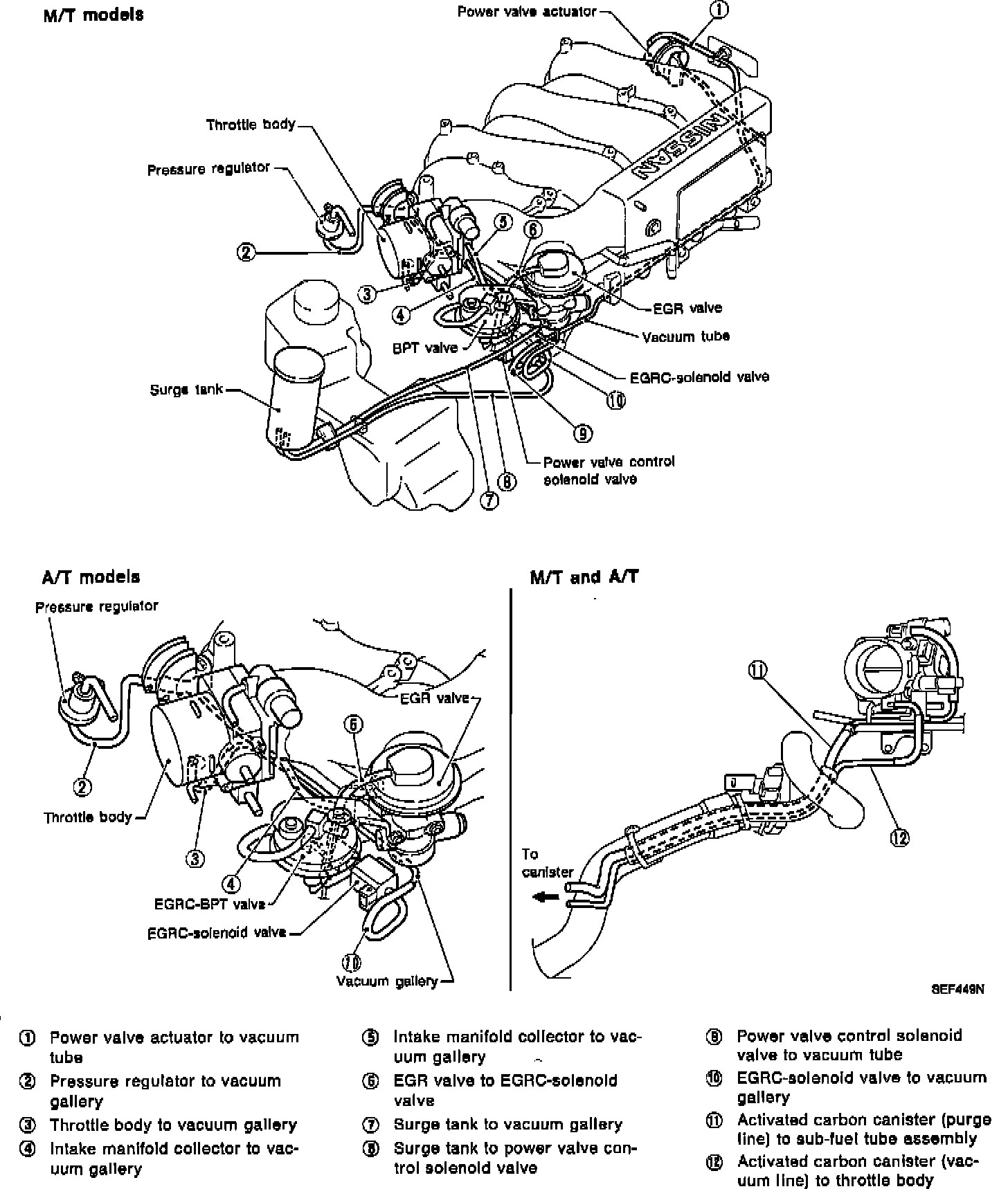

Vacuum Hose Routing And Connections:
