Component Testing Procedures

Fuel Pump Testing:

1. Remove upper and lower portions of rear seat.

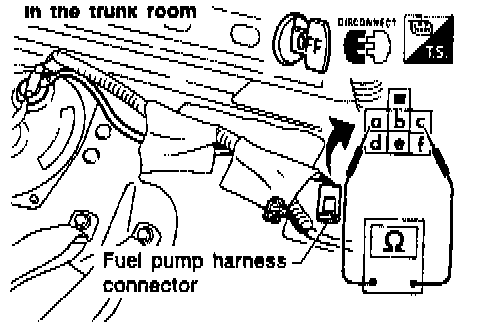

2. Remove round fuel pump access panel.
3. Remove fuel pump electrical connector.
4. Using an ohm meter check the resistance between terminals A and C. Replace the pump if measurement is not approximately 0.5 ohm.
