RE4F02A Transmission
RE4F02A Transmission

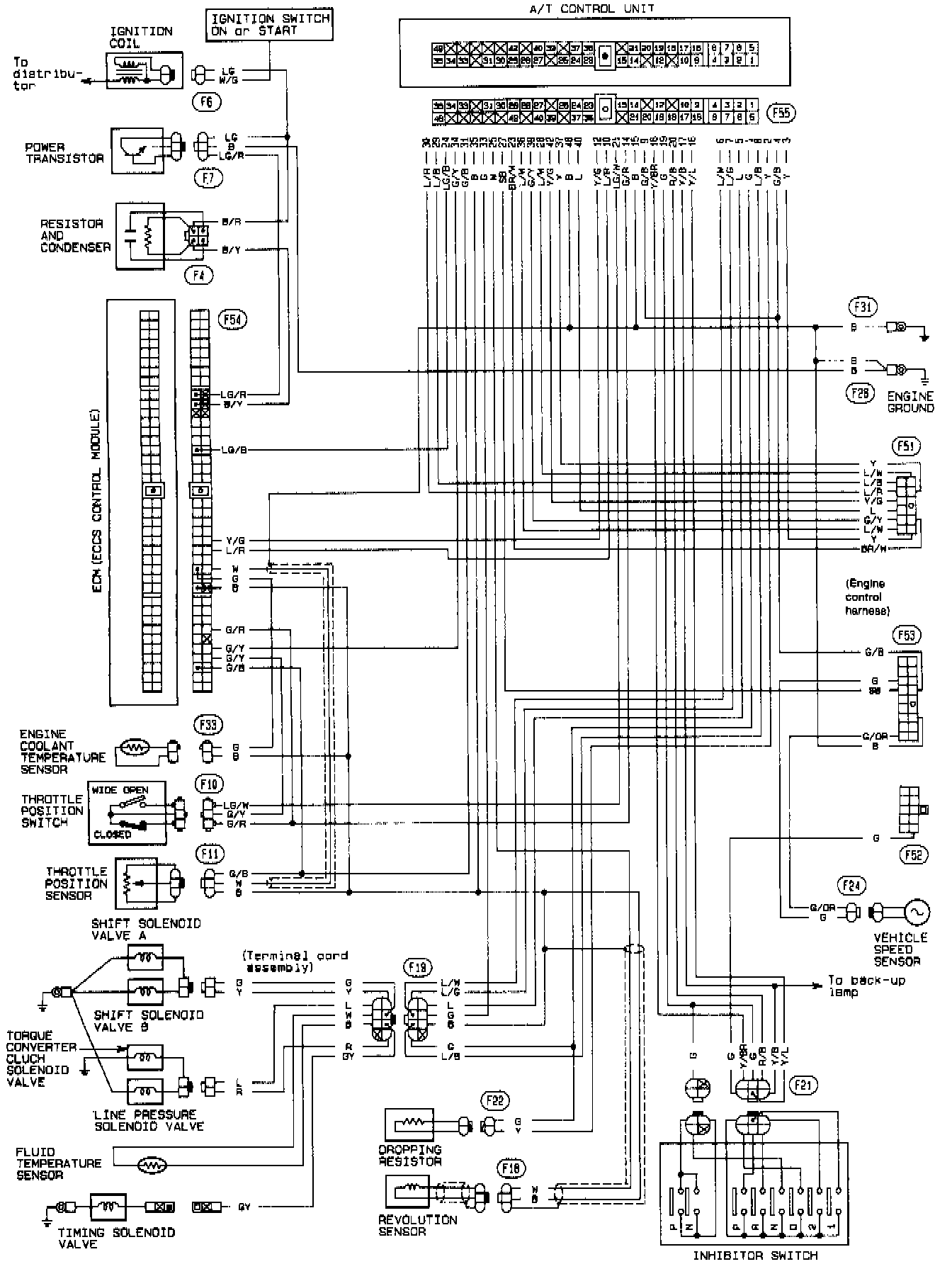

RE4F02A - Automatic Transmission:

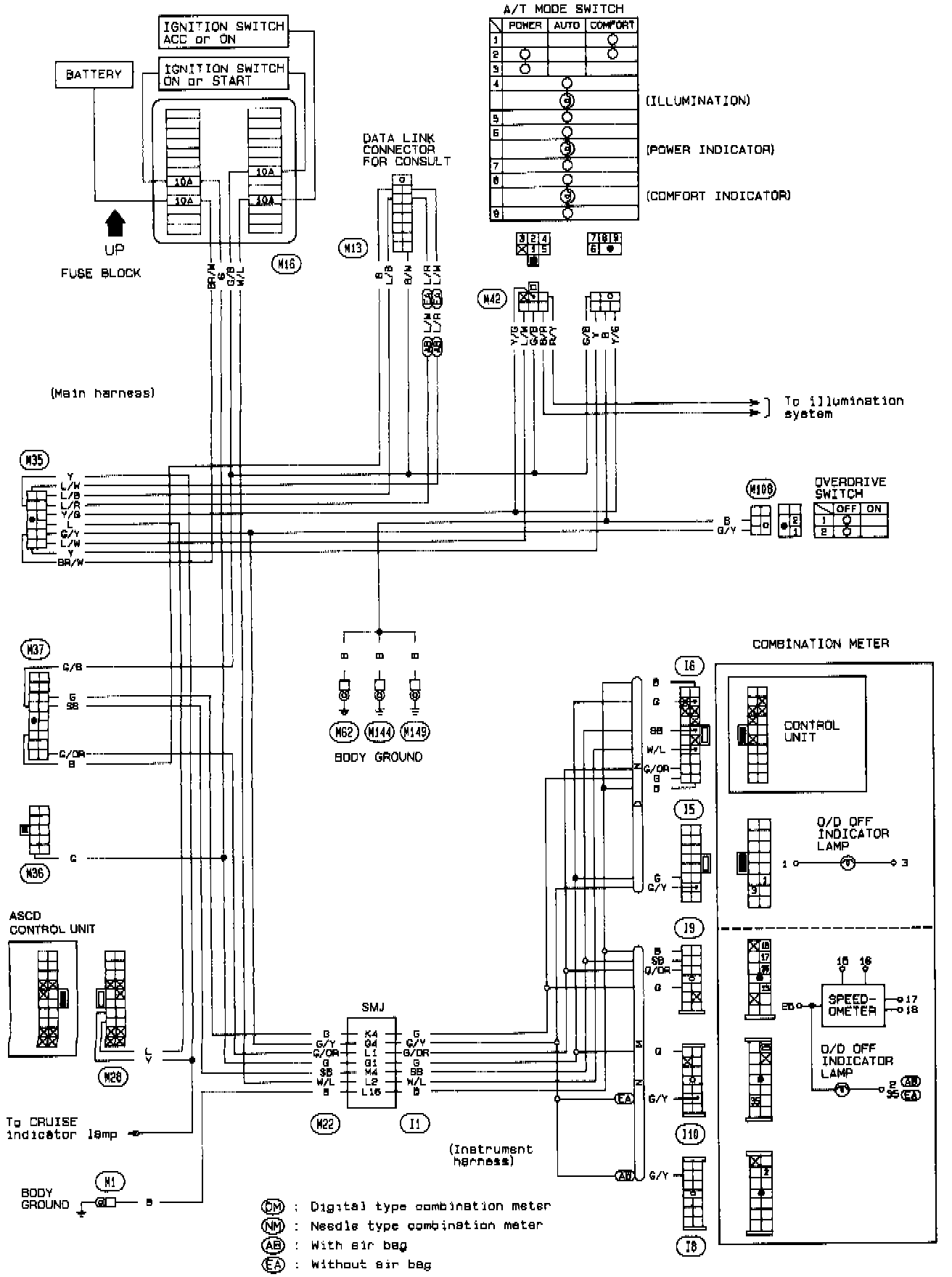

RE4F02A - Automatic Transmission:
