Hi-Speed Relay (Auto Temp A/C)

Hi Relay:

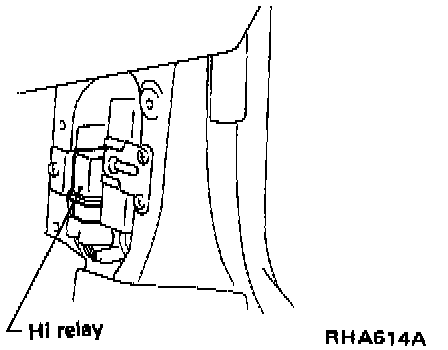

The Hi Relay is located on the intake unit, behind the right side kick panel. It receives a signal from the auto amplifier to operate the blower motor at high speed.
