Home >> Nissan-Datsun >> 1994 >> Maxima V6-2960cc 3.0L DOHC (VE30DE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations

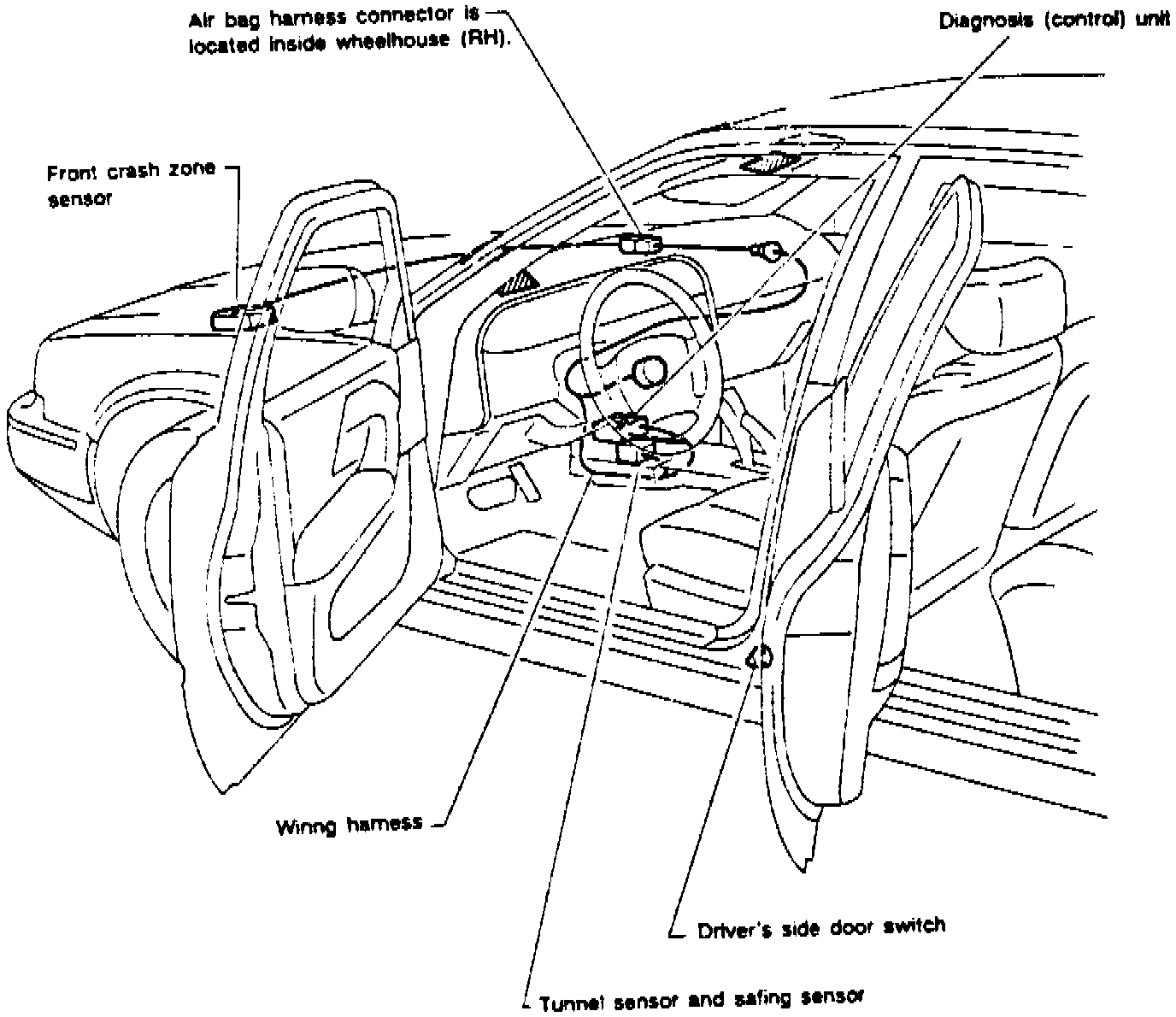

Refer to image for SRS component locations.
