Dropping Resistor: Testing and Inspection

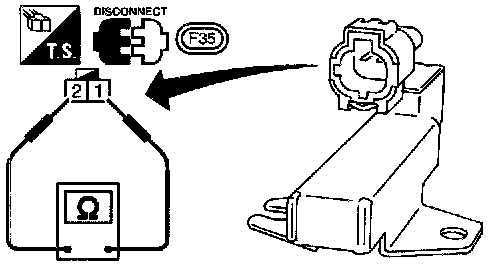

COMPONENT INSPECTION
Dropping Resistor




- Check resistance between two terminals.

Resistance: 11.2 - 12.8 ohms
