Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Trouble Diagnosis - Basic Inspections
>>
Road Test
>>
Shifting Operation
>>

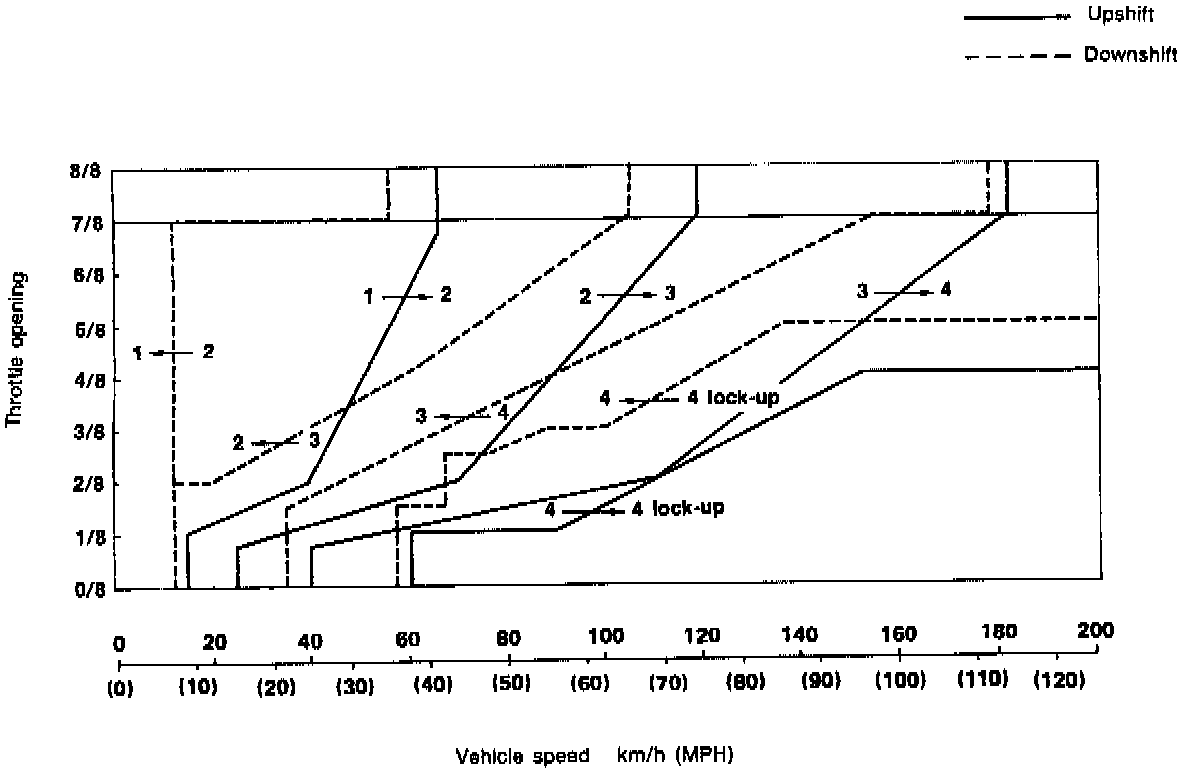

Shift Schedule Power Pattern
Shift Schedule Power Pattern
Shift Schedule (Power Pattern):
