DTC 13

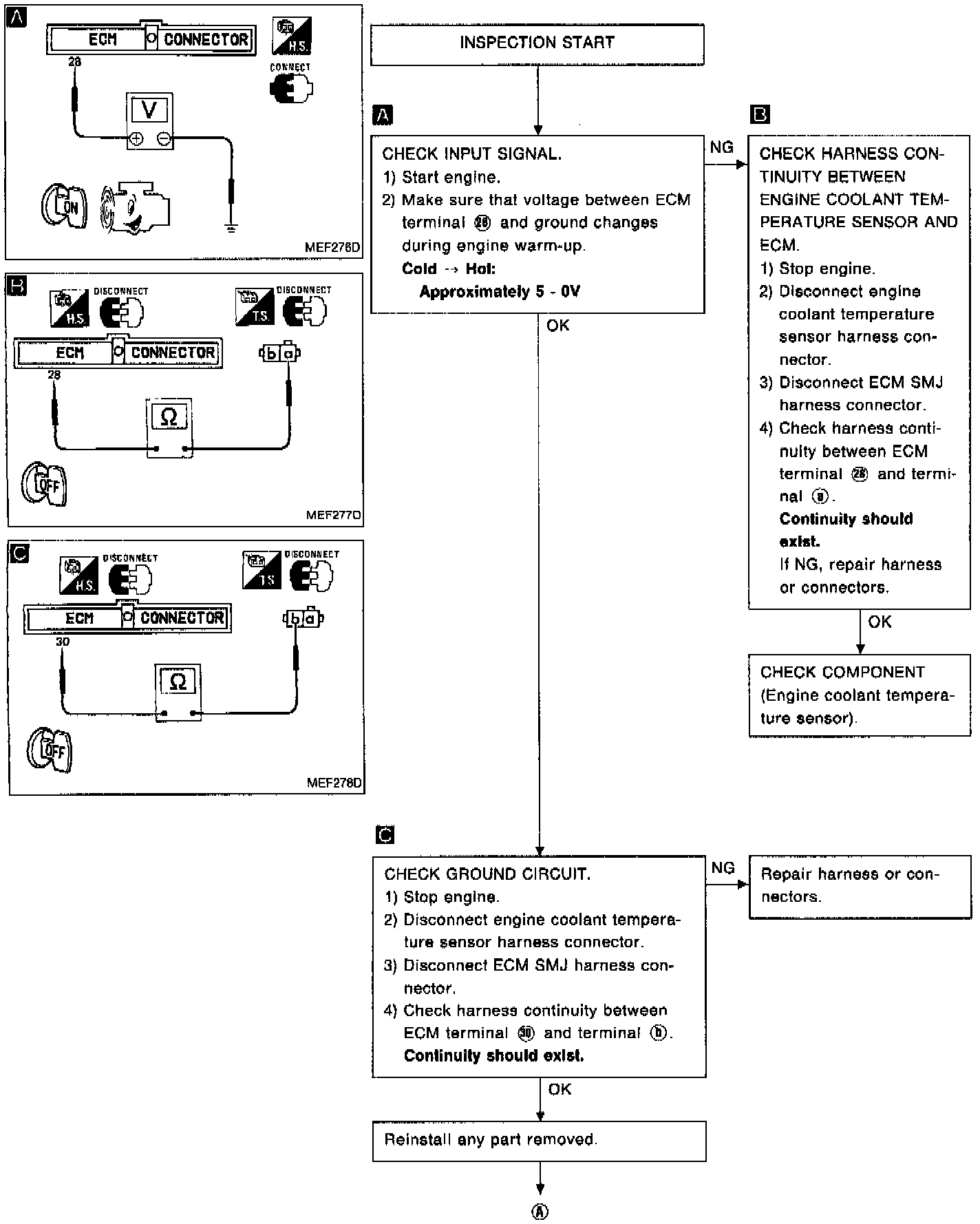

DTC 13 Engine Temperature Sensor Diagnostic Chart:




DTC 13 Engine Temperature Sensor Diagnostic Chart:

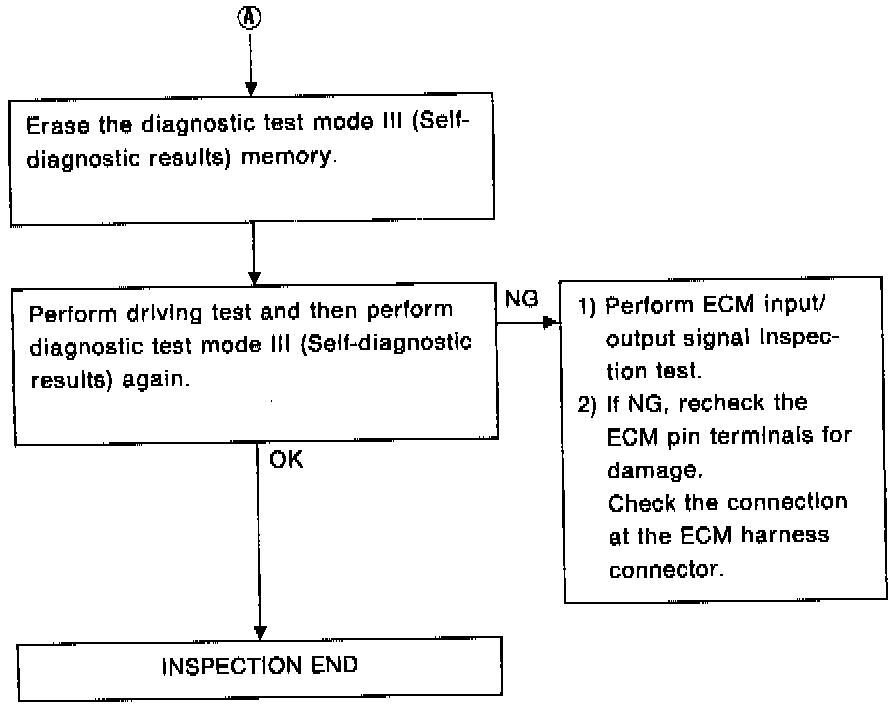

DIAGNOSTIC CHART

Engine Temperature Sensor Circuit:





CIRCUIT DIAGRAM

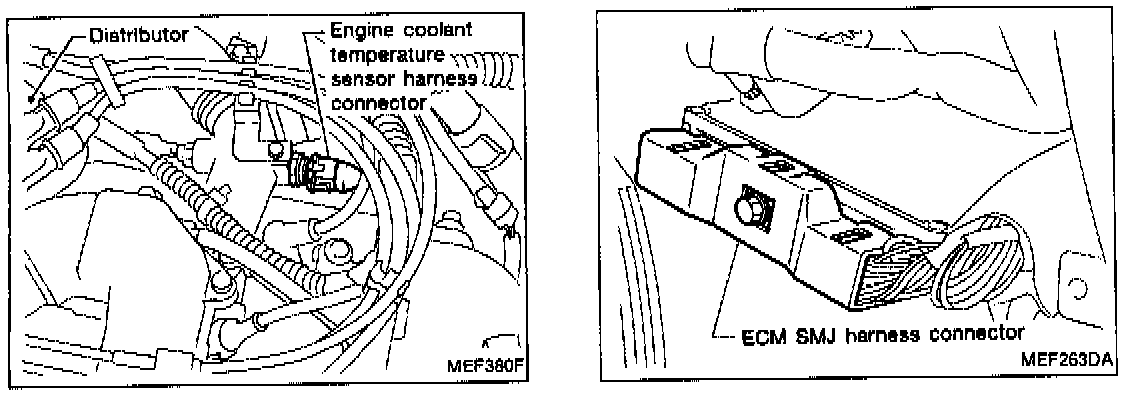

Harness Layout:





HARNESS LAYOUT
