Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L SOHC MFI (VG30E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T

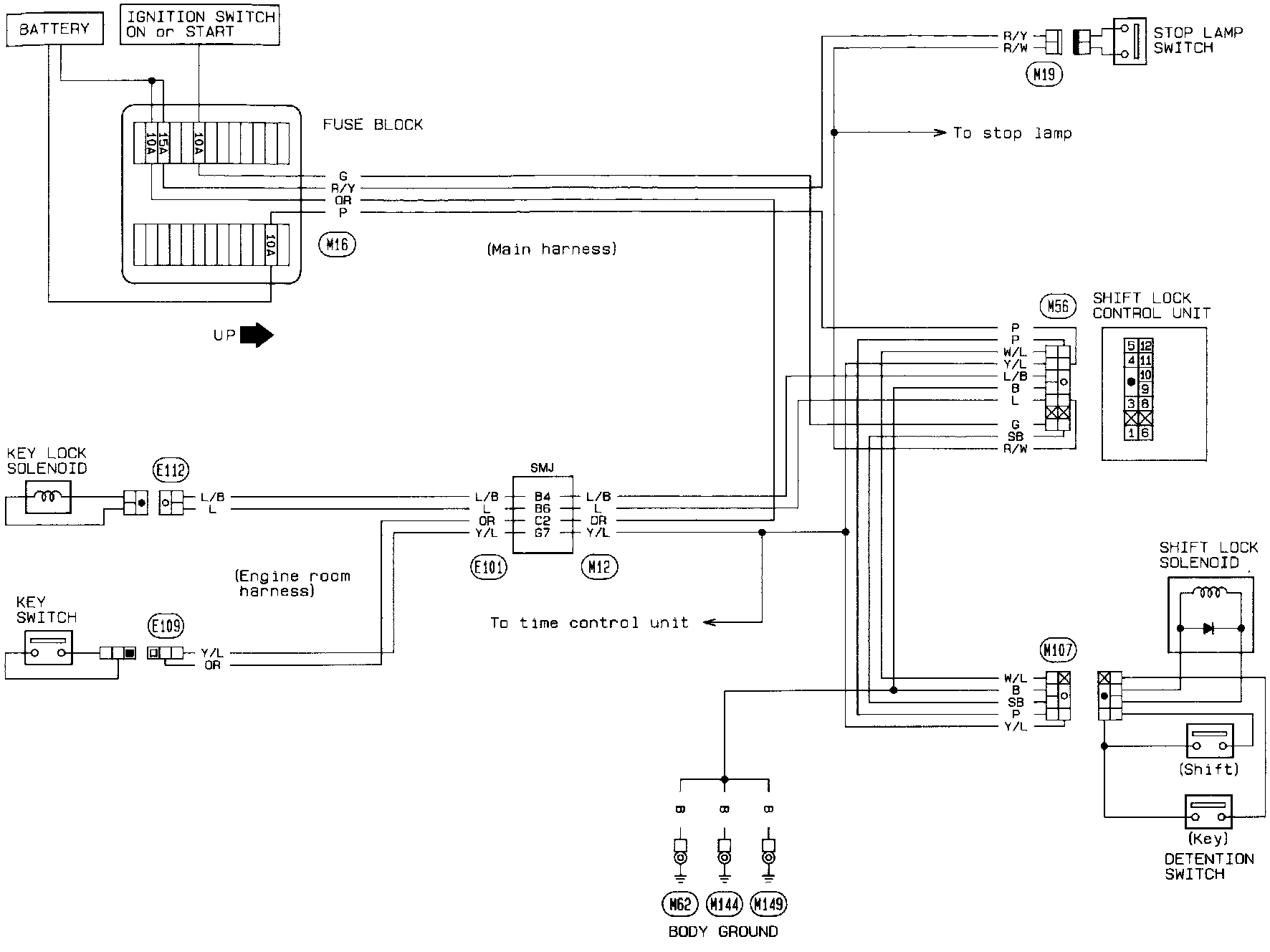

Shift Interlock, A/T
A/T Shift Lock System:
