Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L SOHC MFI (VG30E)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

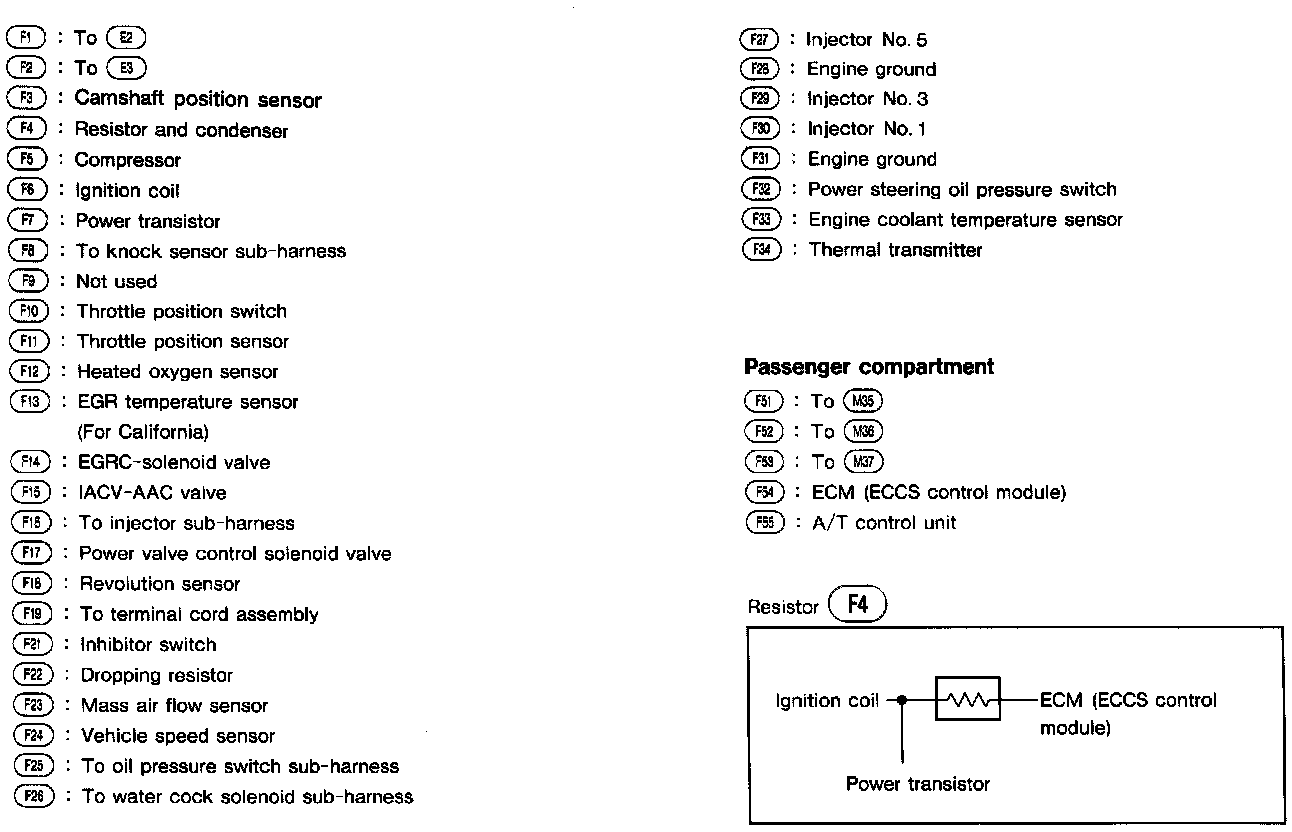

F Connectors, E.F.I.
F Connectors, E.F.I.
Engine Control Harness:
Engine Control Harness:
