Power Steering Pressure Switch: Locations

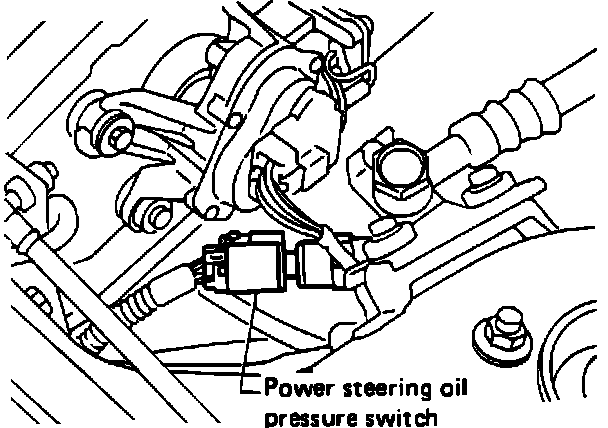

Fig. 65 Power Steering Load Switch:






POWER STEERING LOAD SWITCH
Located in the high pressure line near the passenger's side strut tower
