Radiator Fan Control

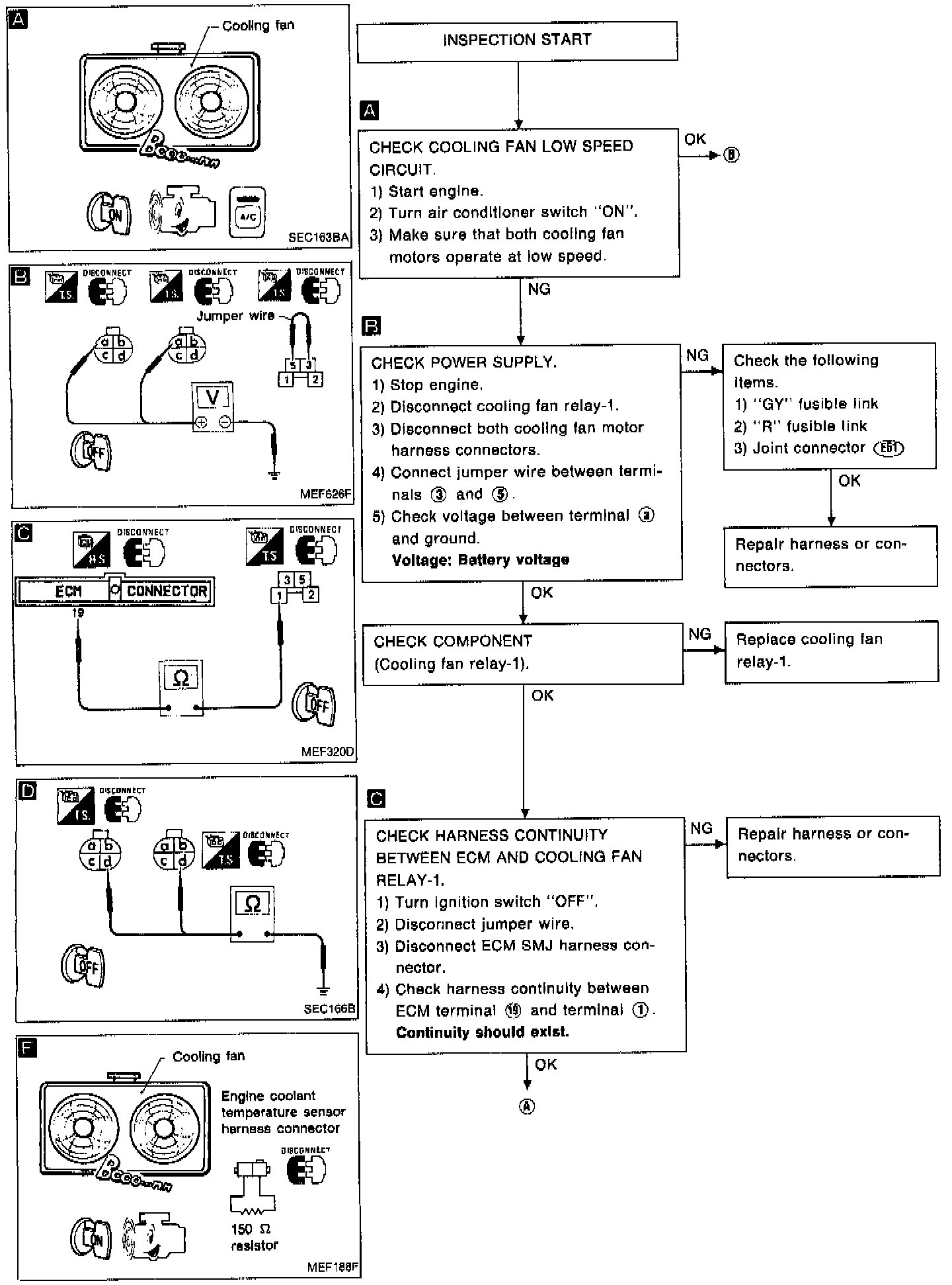

Cooling Fan Control Circuit Diagnostic Chart:

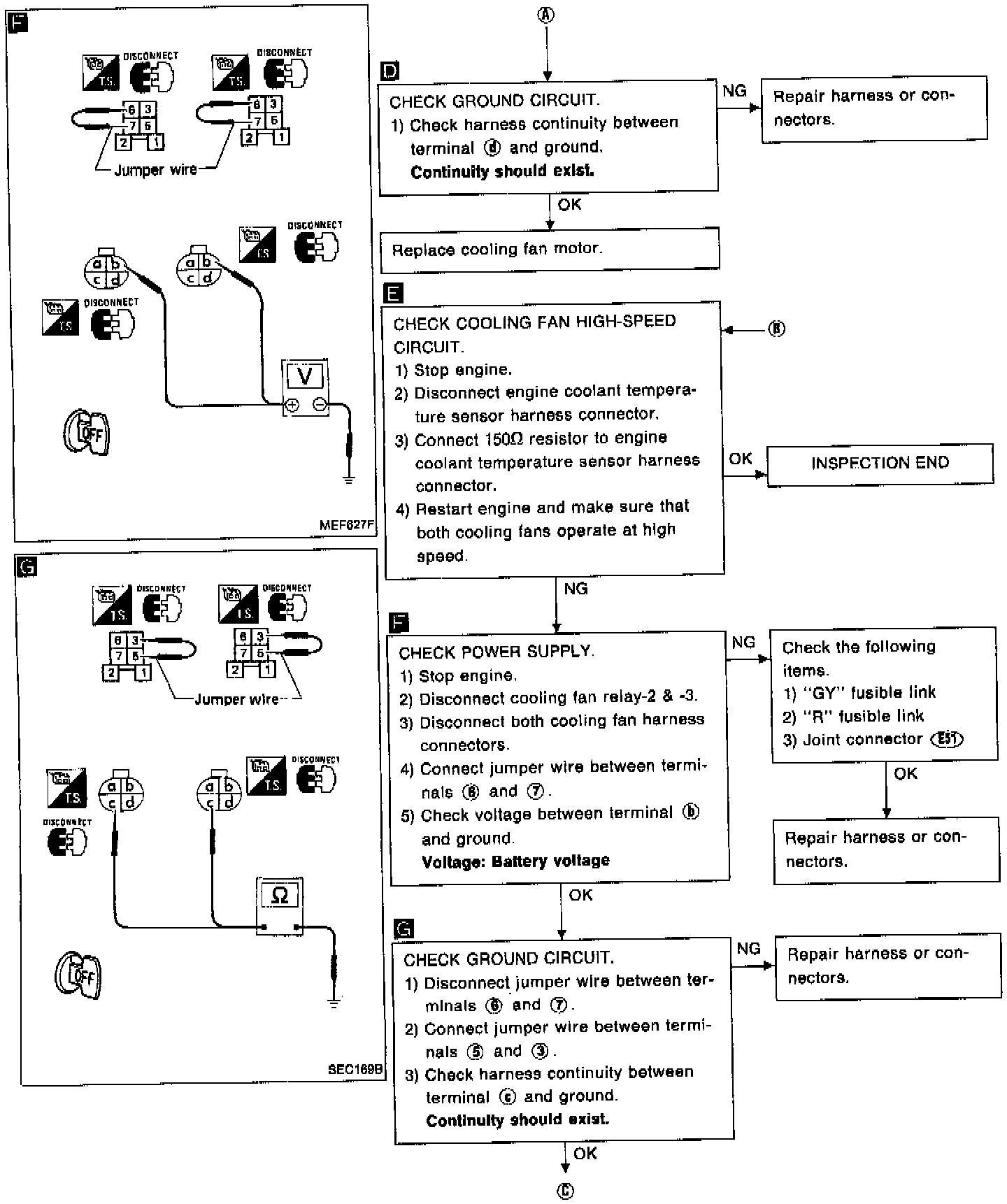

Cooling Fan Control Circuit Diagnostic Chart:

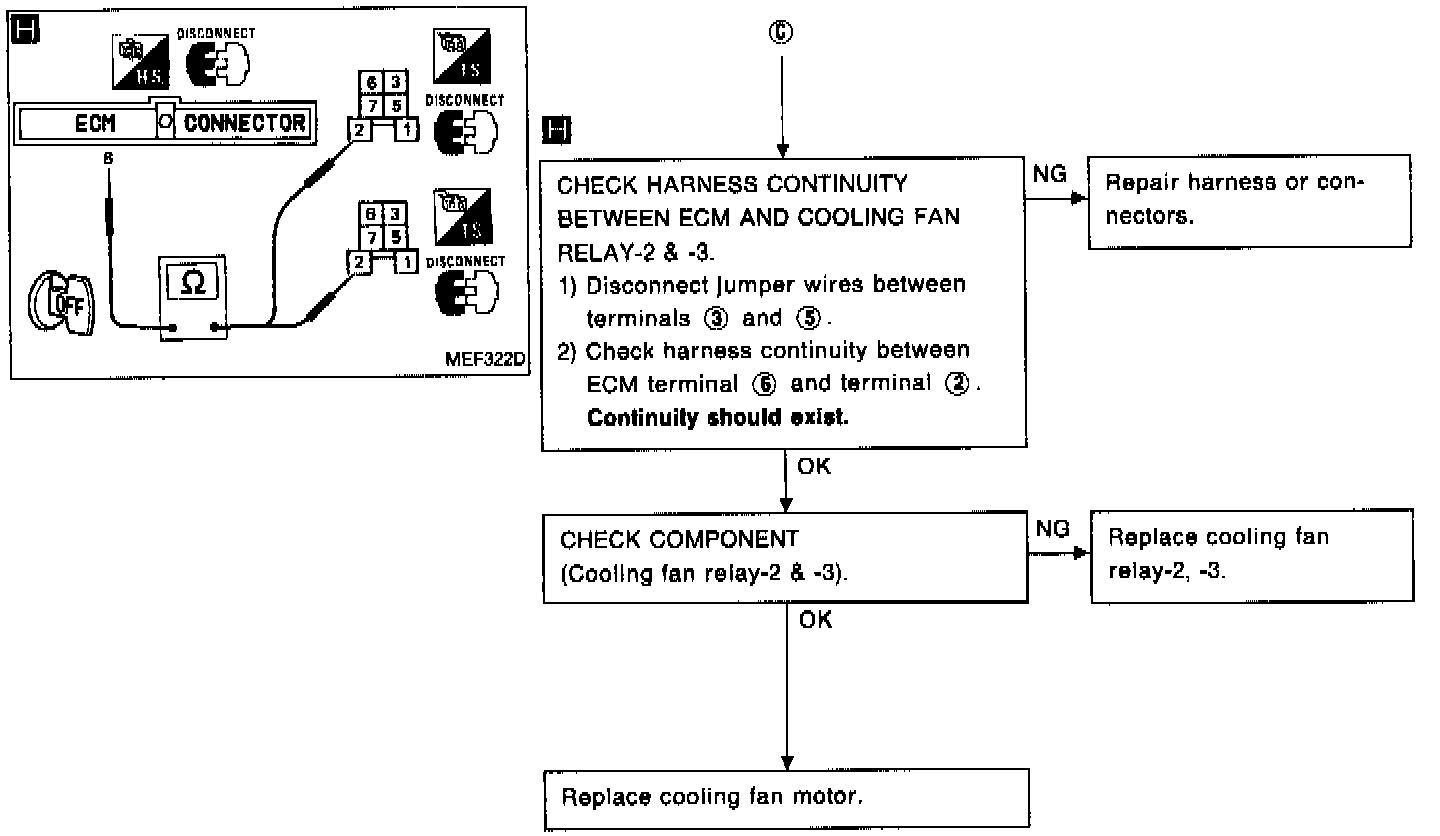

Cooling Fan Control Circuit Diagnostic Chart:

DIAGNOSTIC CHART

Cooling Fan Control Circuit:

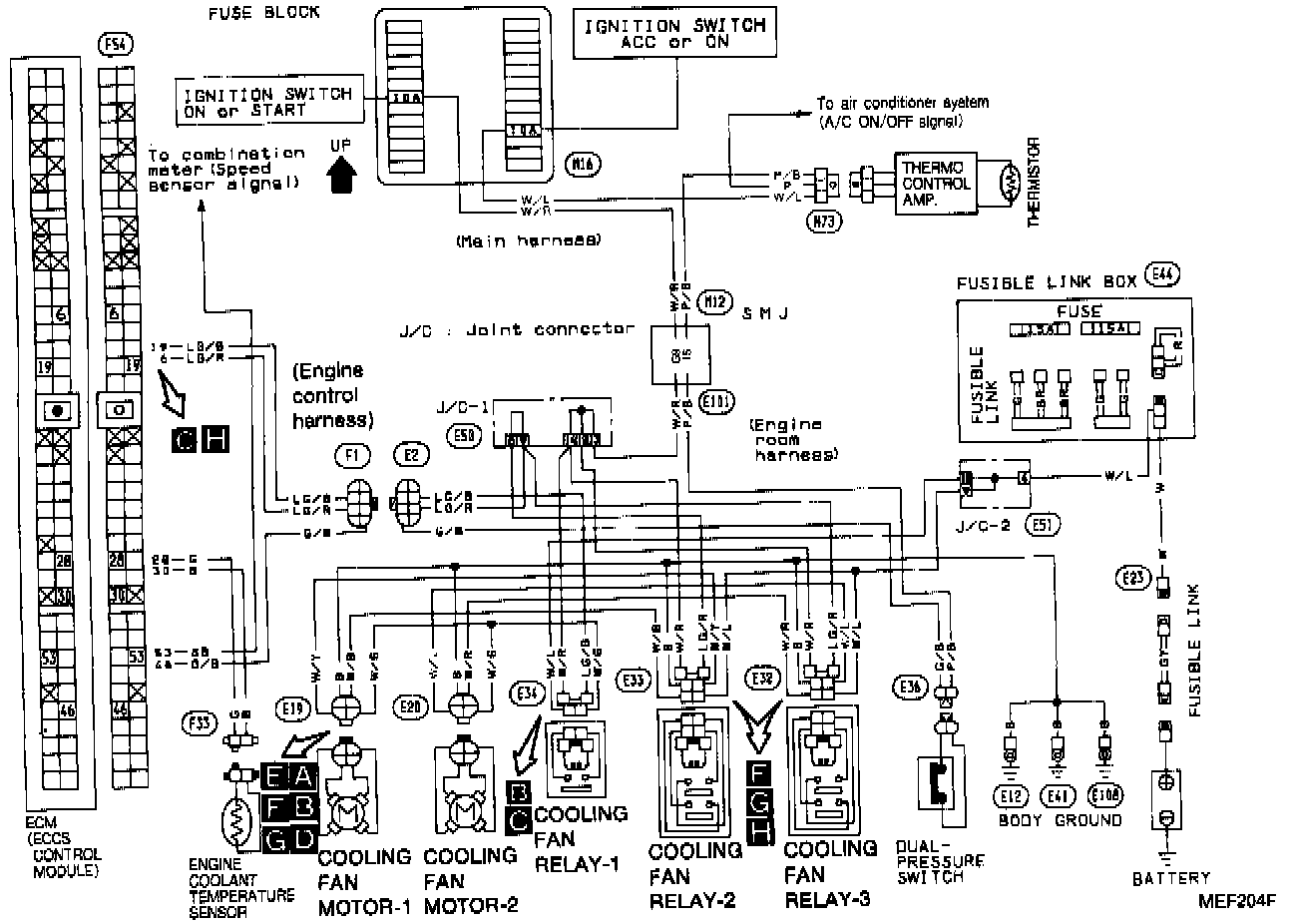

CIRCUIT DIAGRAM

Harness Layout:

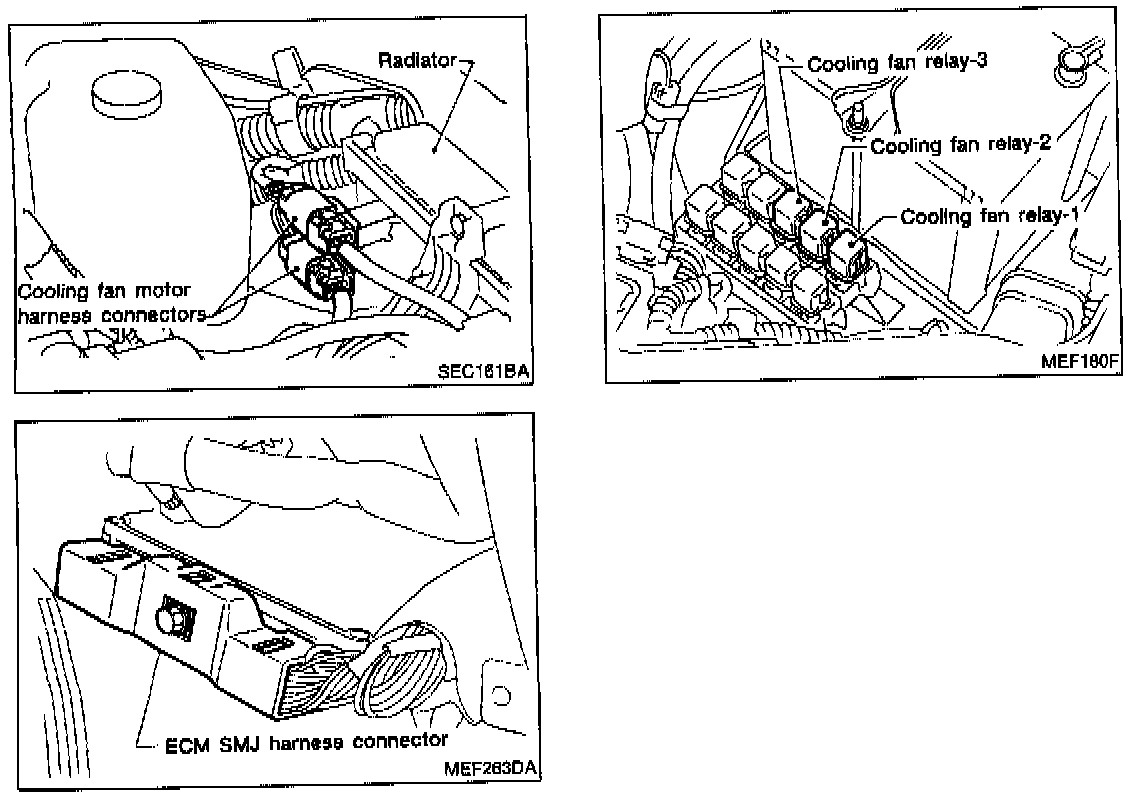

HARNESS LAYOUT
