Band: Service and Repair

BRAKE BAND AND BAND SERVO






Inspection

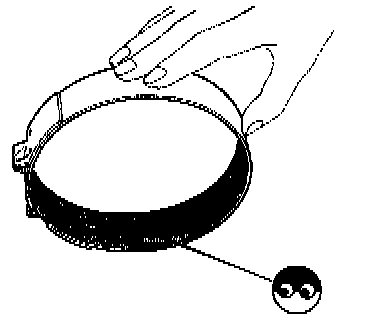

^ Inspect band friction material for wear. If cracked, chipped or burnt spots are apparent, replace the band.

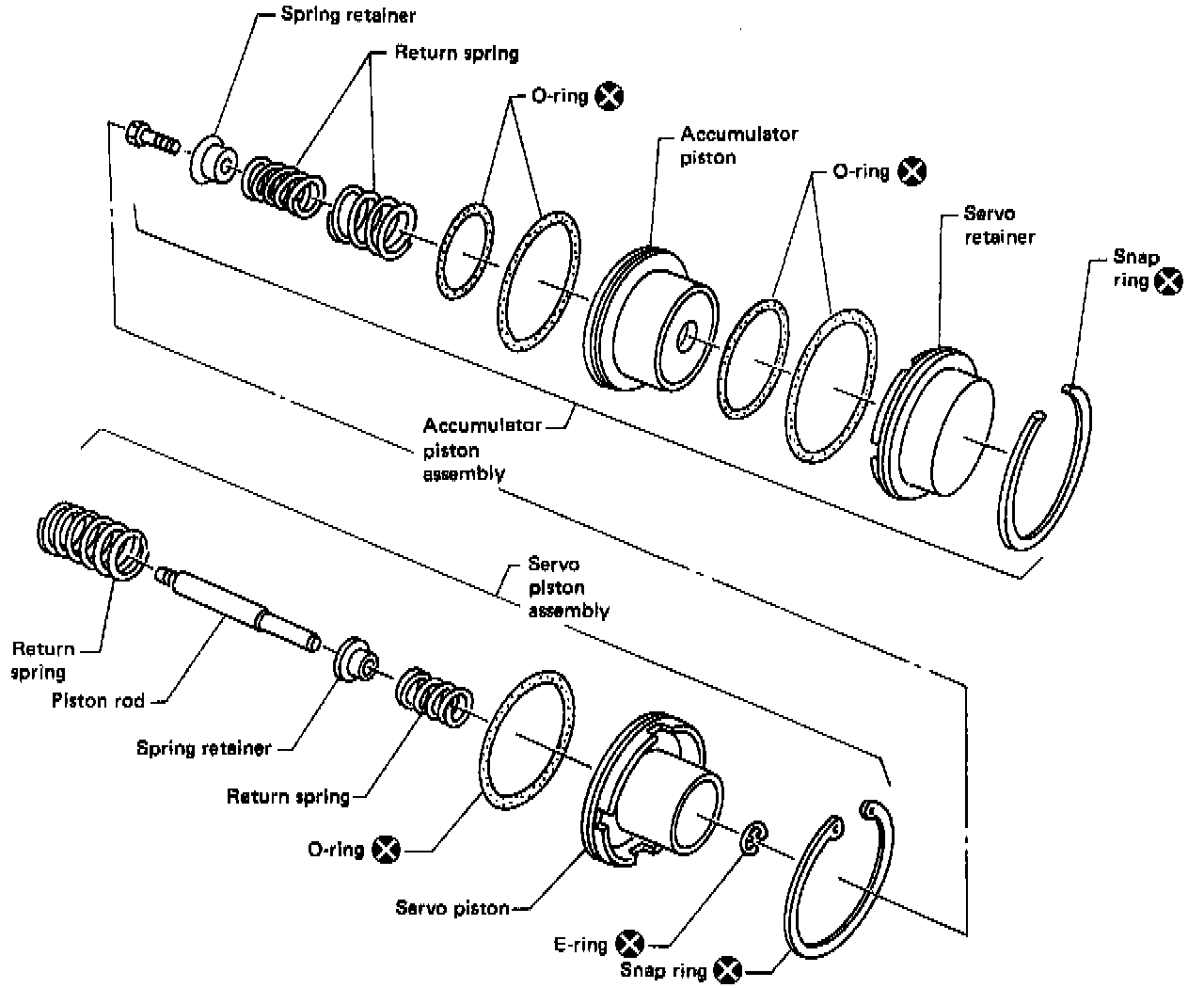

^ Check band servo components for wear and scoring.
