Seals and Gaskets: Service and Repair

Differential Side Oil Seal Replacement




1. Remove drive shaft assembly. Refer to section FA

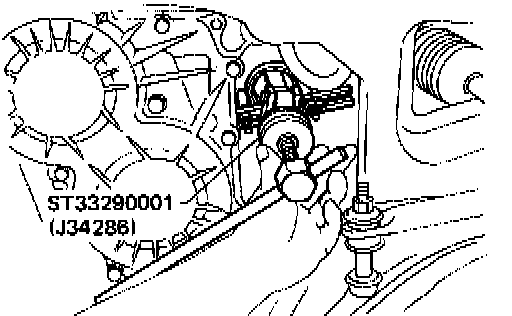

2. Remove oil seal.

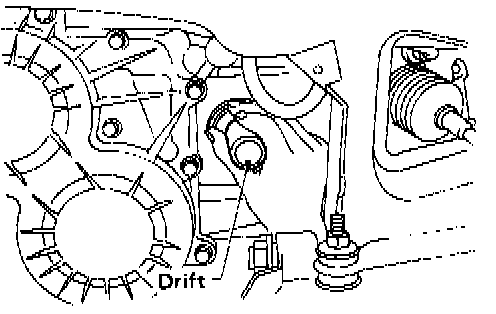

3. Install oil seal.
- Apply A.T.F. before installing.
4. Reinstall any part removed.
