Shift Cable: Adjustments

Control Cable Adjustment

Move selector lever from "P" range to "1"range You should be able to feel the detents In each range.

If the detents cannot be felt or the pointer indicating the range is improperly aligned, the linkage needs adjustment.




1. Place selector lever in "P" range.

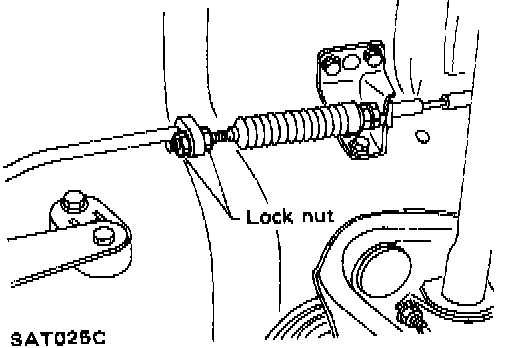

2. Loosen lock nuts.

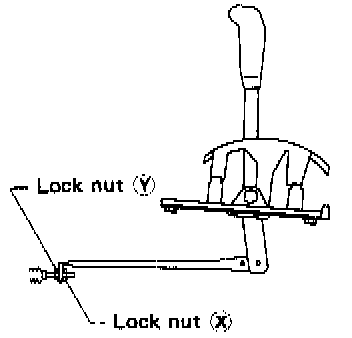

3. Screw lock nut (X) until it touches select rod end while holding select rod horizontal and tighten lock nut (Y).
4. Move selector lever from "P" range to "1" range again. Make sure selector lever moves smoothly.
