Disassembly

CONTROL VALVE ASSEMBLY






Disassembly




1. Remove solenoids.
a. Remove timing solenoid
b. Remove 0-ring from solenoid




c. Remove shift solenoid A. shift solenoid B, line pressure solenoid and lock-up solenoid.
d. Remove 0-rings from solenoids.




2. Remove solenoid body.
a. Place lower body facedown and remove bolts. Be careful not to drop solenoid body.




b. Place upper body face down, and remove solenoid body with separator gaskets and separator plate.

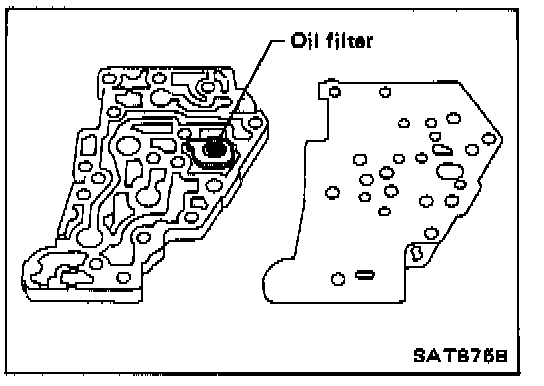

c. Remove separator gaskets, separator plate and oil filter from solenoid body.




3. Disassemble upper and lower bodies.
a. Place lower body facedown, and remove bolts, reamer bolts and support plate.




b. Position upper body downward. Remove lower body with separator plate and separator gasket attached to upper body




c. Remove oil filter, separator gaskets and separator plate from upper body.




d. Check to see that steel balls are properly positioned in upper body and then remove them from upper body.
