CONTROL VALVE ASSEMBLY

Inspection

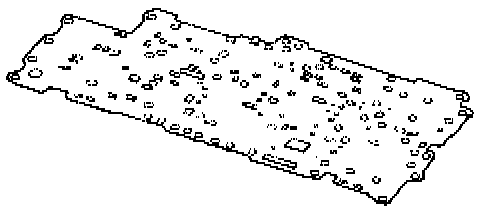

Separator plates
Check to make sure that separator plate is free of damage and not deformed and oil holes are clean.

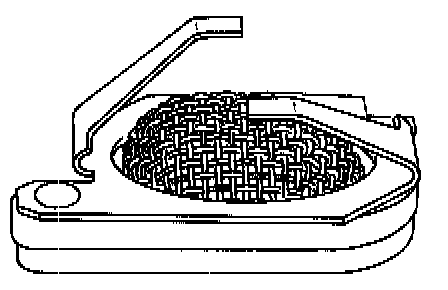

Oil filter
Check to make sure that filter is not clogged or damaged.




Timing solenoid
Measure resistance 20 - 40 ohms

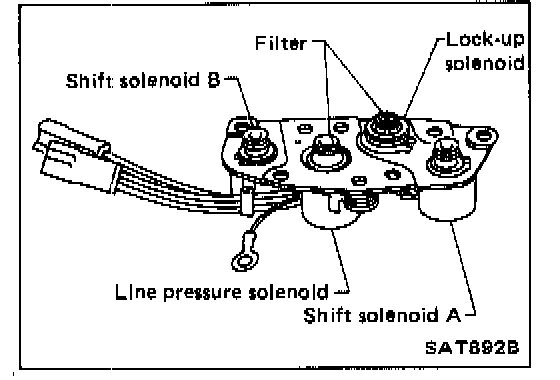

4-unit solenoid assembly (Line pressure solenoid, lock-up solenoid and shift solenoids A and B)
- Check that filter is not clogged or damaged (line pressure solenoid and lock-up solenoid).
- Measure resistance of each solenoid
Solenoids A & B 20 - 40 ohms
Lock-up Solenoid 10 - 20 ohms
Line Pressure Solenoid 2.5 - 5 ohms

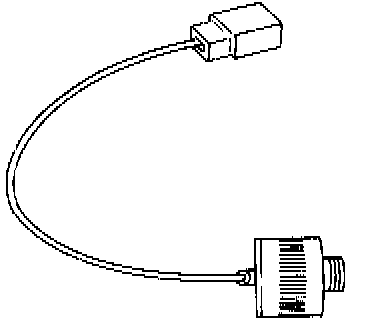

Fluid temperature sensor
Measure resistance 2.5 ohms at 20°C
0.3 ohms at 80°C
