Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Sentra (2 Door) L4-1998cc 2.0L DOHC MFI (SR20DE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Test Procedures
>>
Diagnostic Test Procedure 3
Diagnostic Test Procedure 3

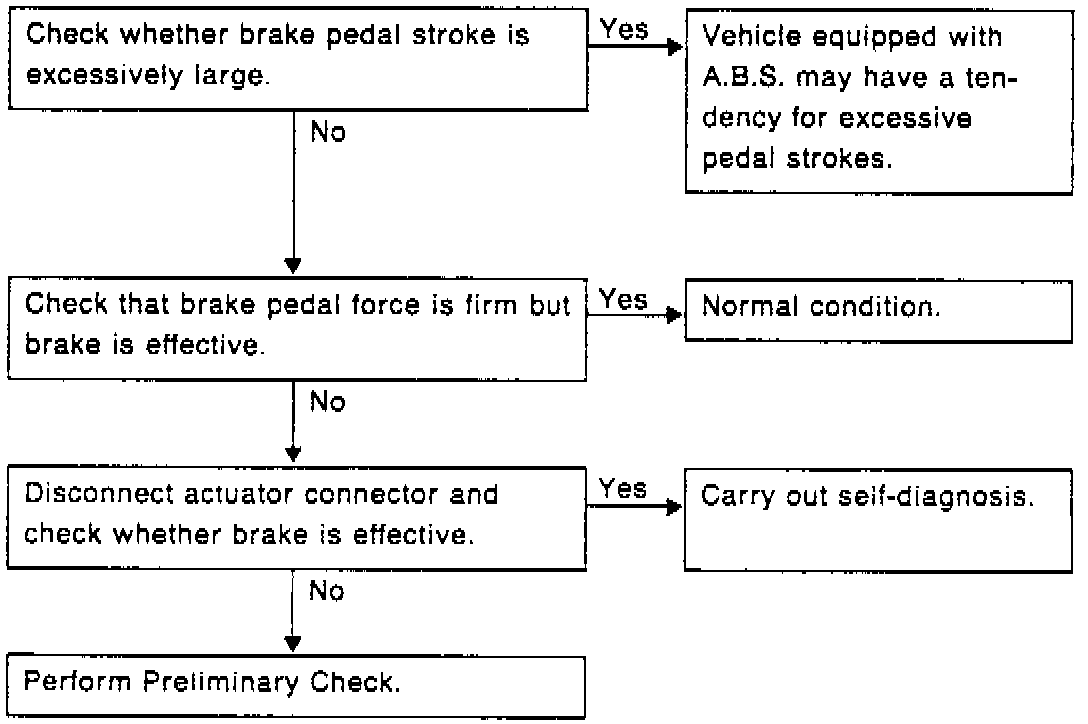

Fig. 129 Test 3: Unexpected Pedal Action:
