Home >> Nissan-Datsun >> 1994 >> Sentra (2 Door) L4-1998cc 2.0L DOHC MFI (SR20DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Test Procedures >> Diagnostic Test Procedure 4

Diagnostic Test Procedure 4

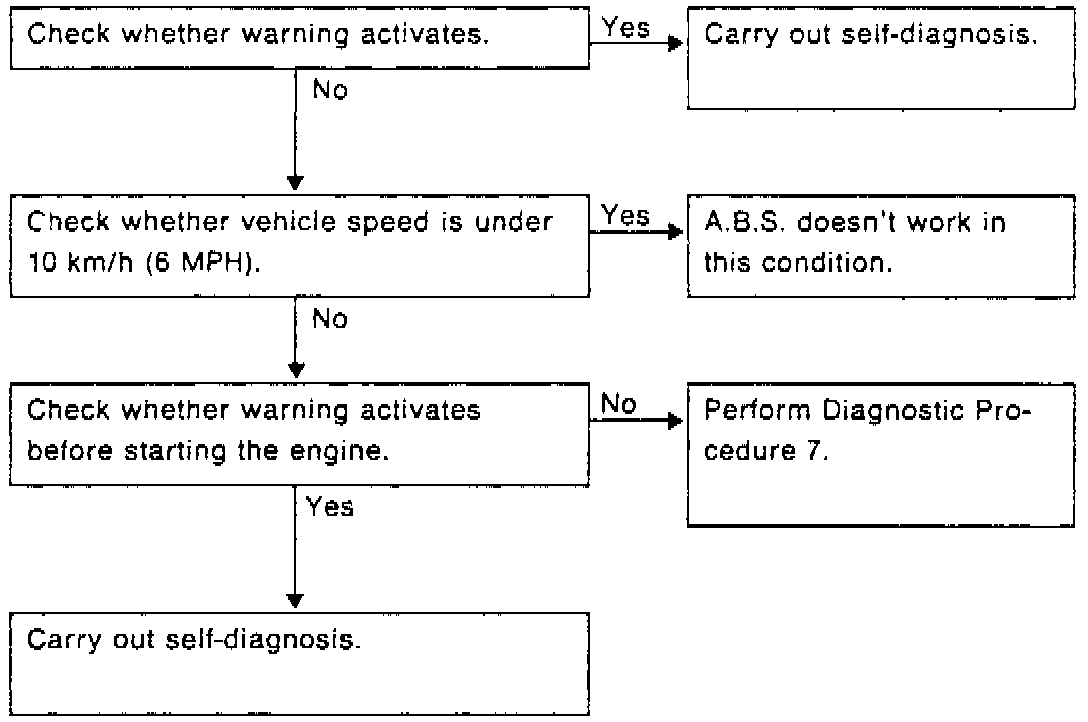

Fig. 130 Test 4: ABS Doesn't Work:
