Electrical Component Check

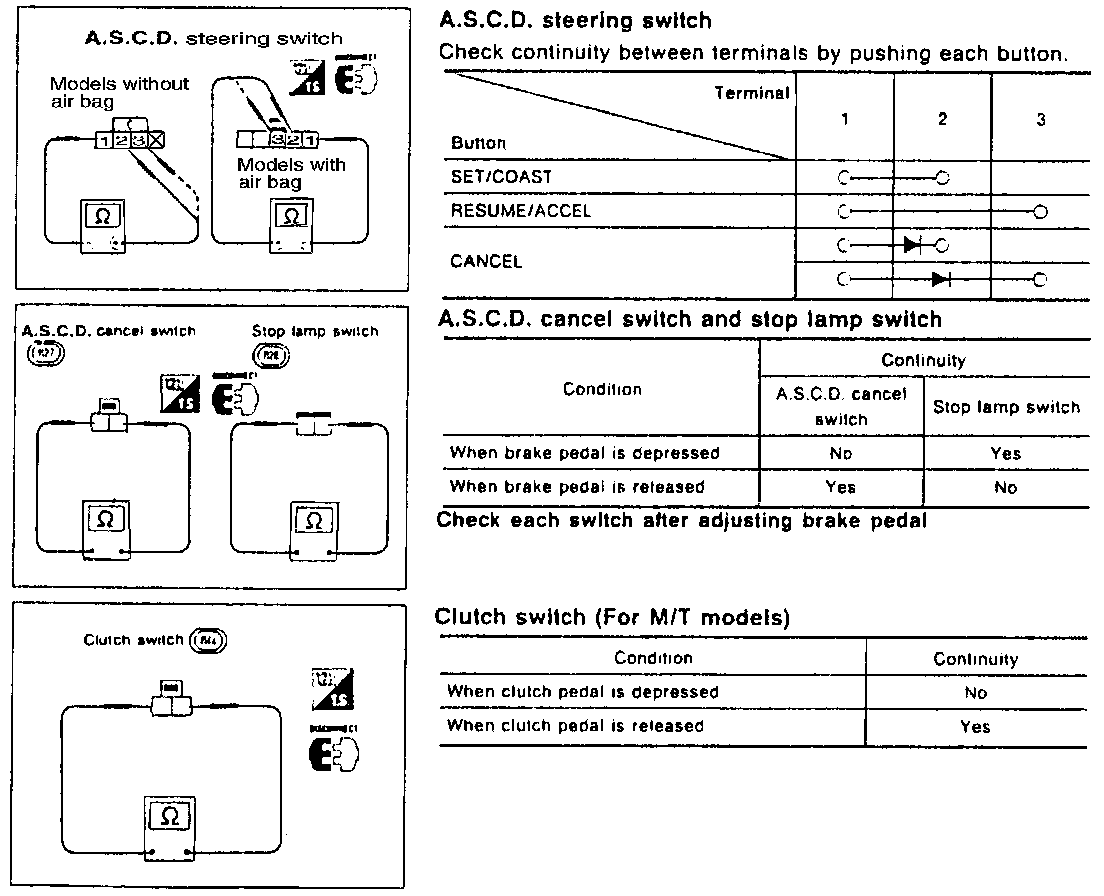

Fig. 73 Electrical Component Check (Part 1 Of 2):

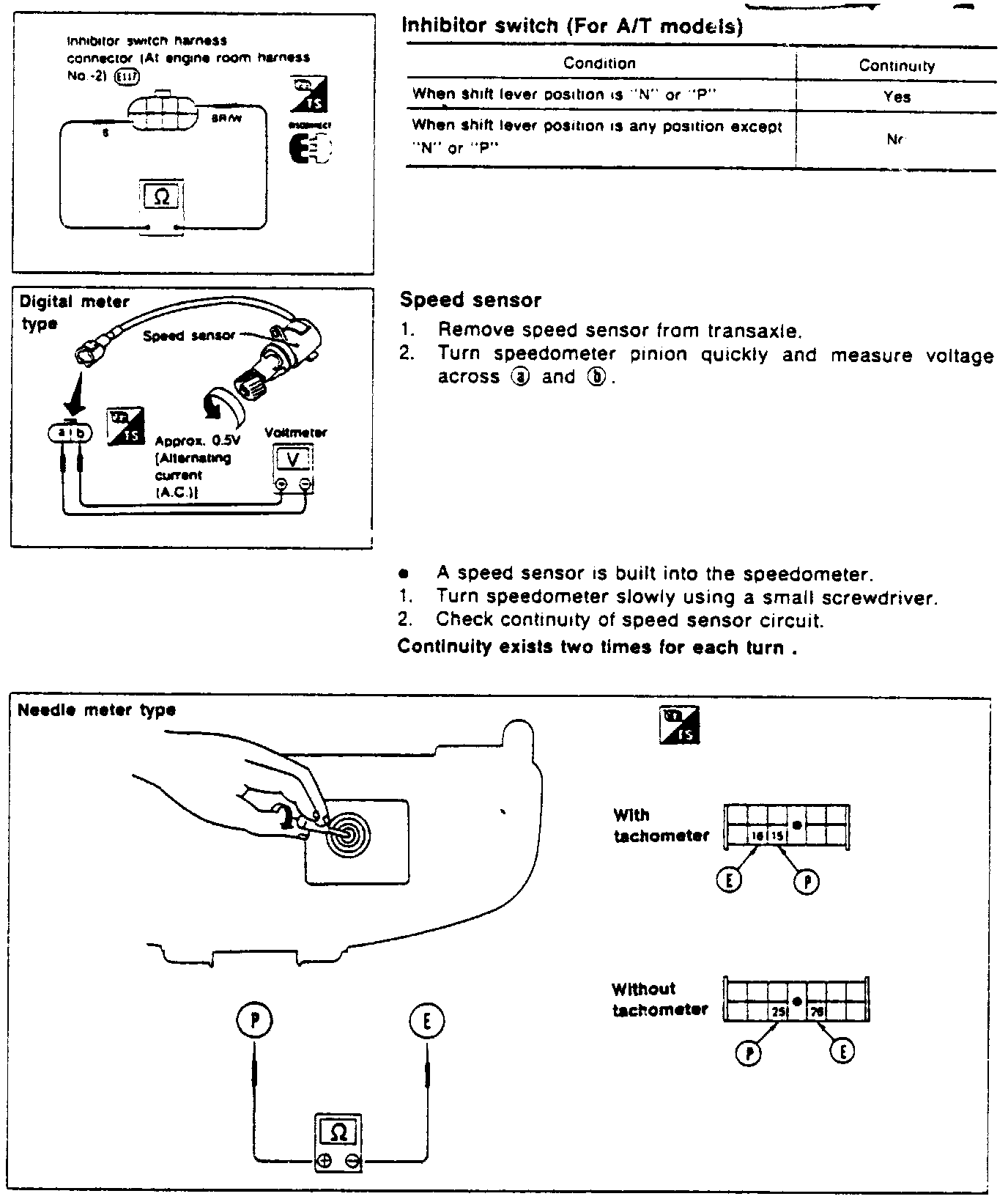

Fig. 73 Electrical Component Check (Part 2 Of 2):
