Emission Control Components Description

EGR And Canister Control System:

PURPOSE
The Exhaust Gas Recirculating (EGR) and Evaporative Canister control system is used to allow precise control of the EGR valve and Canister to suit engine operating conditions.

OPERATION

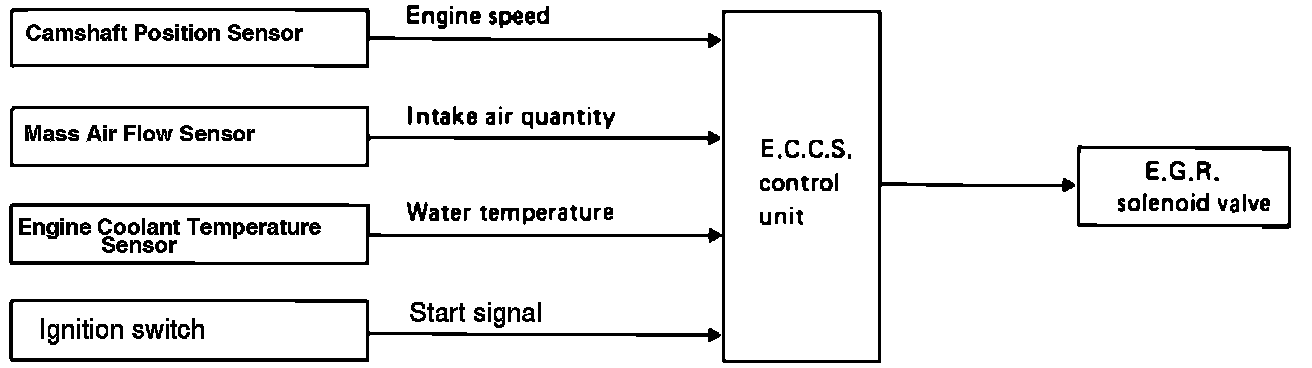

When the Engine Control Module (ECM) detects any of the following conditions, current flows through the Solenoid Valve that is in the EGR and canister control vacuum line. This causes the port vacuum to be discharged into the atmosphere so that the EGR valve and canister remain closed.

These conditions are:
1. Low engine coolant temperature
2. Engine starting
3. High-speed engine operation
4. Engine idling
5. Excessive high engine coolant temperature
6. Mass Air Flow Sensor malfunction
