Auxiliary Air Control (AAC) Valve Circuit

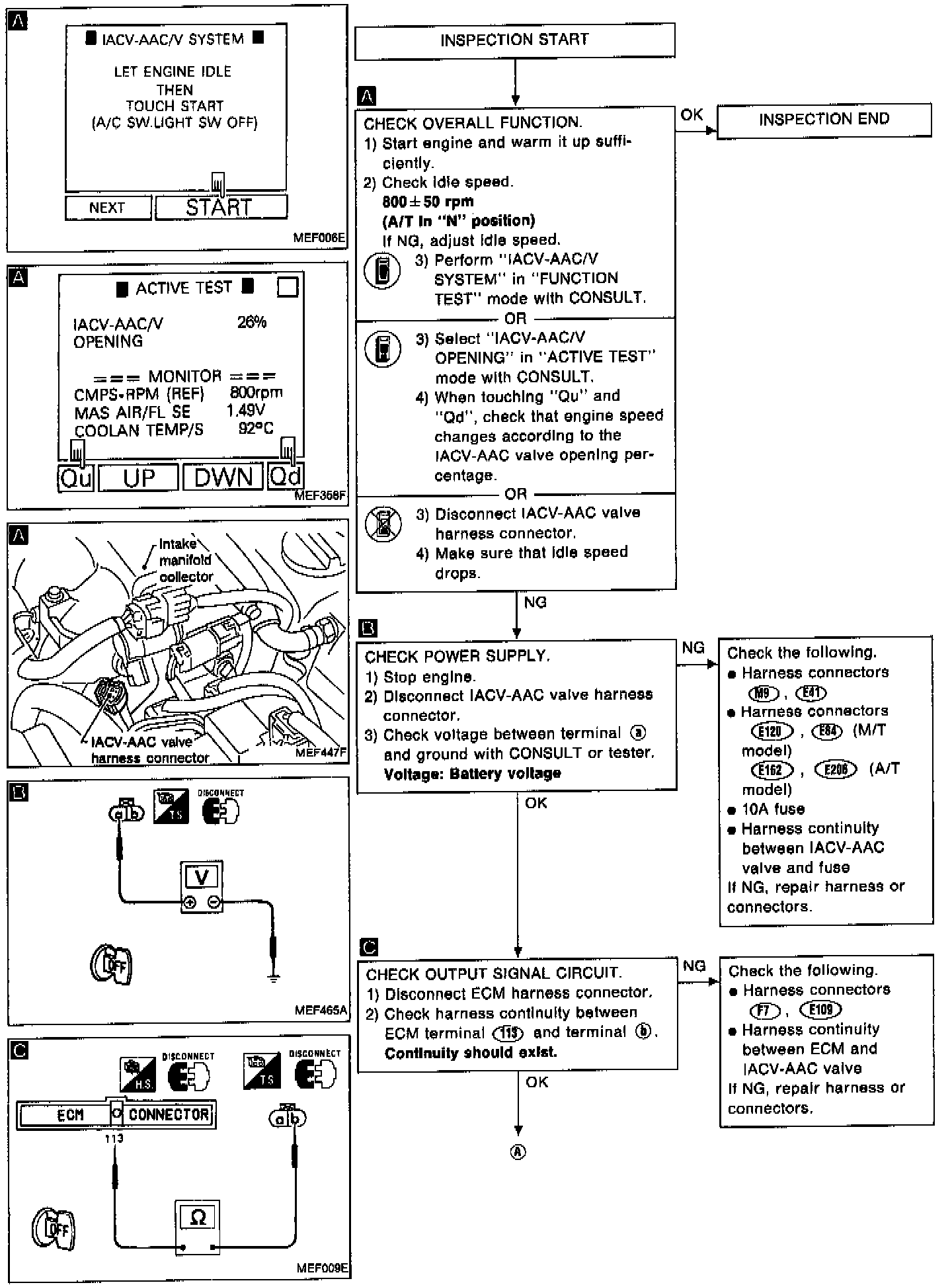

IAC Valve-AAC Valve Circuit Diagnostic Chart:

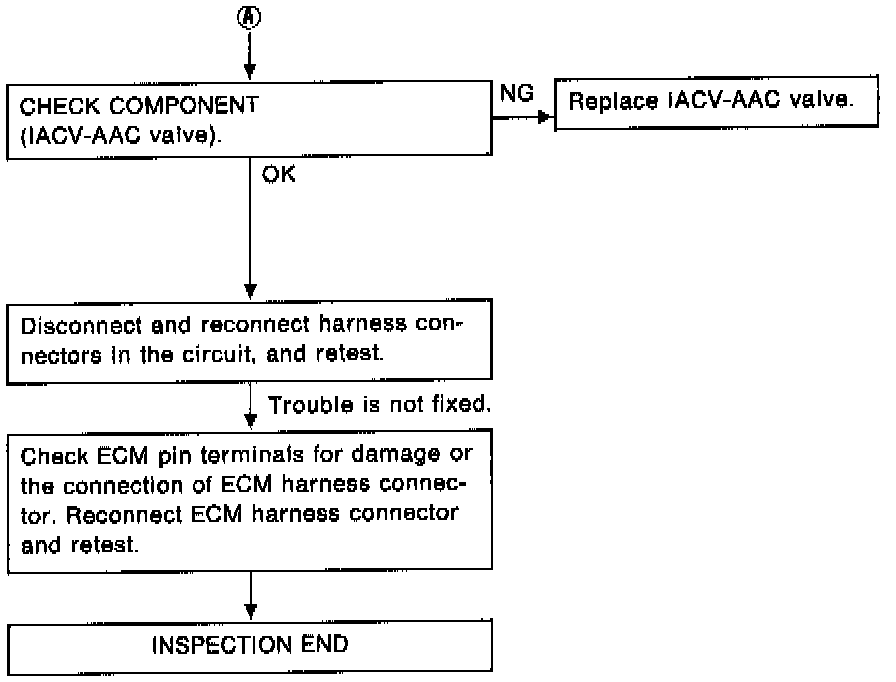

IAC Valve-AAC Valve Circuit Diagnostic Chart:





DIAGNOSTIC CHART

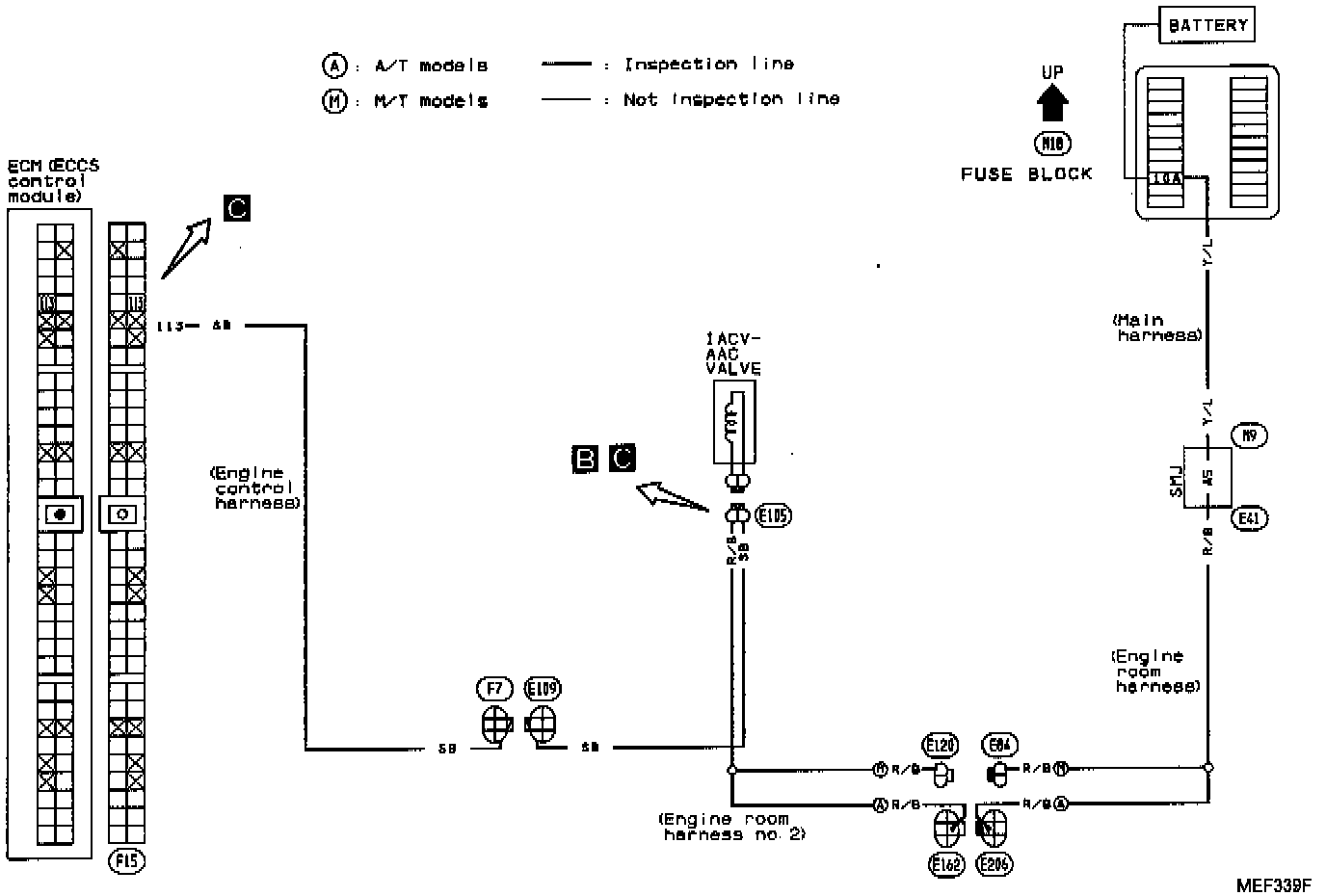

Idle Air Control Valve-AAC Valve Circuit:





CIRCUIT DIAGRAM

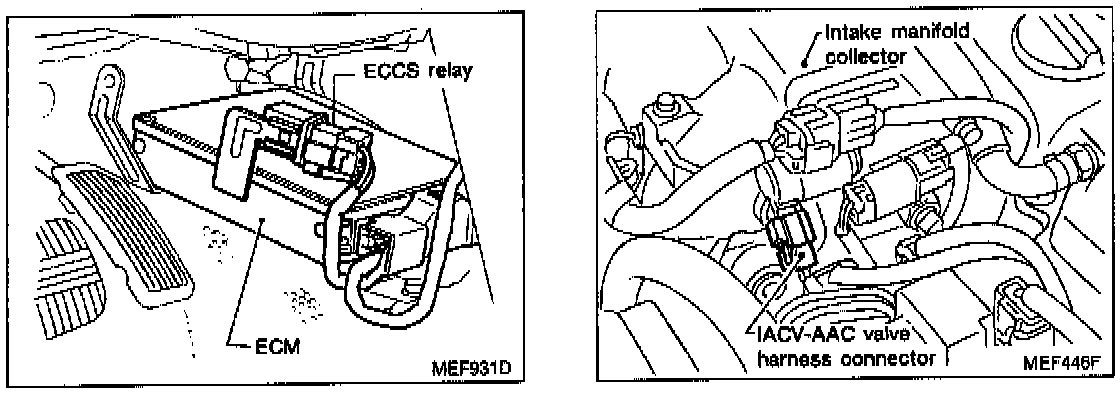

Harness Layout:





HARNESS LAYOUT
