Sentra (2 Door) L4-1998cc 2.0L DOHC MFI (SR20DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Camshaft Position Sensor
Camshaft Position Sensor

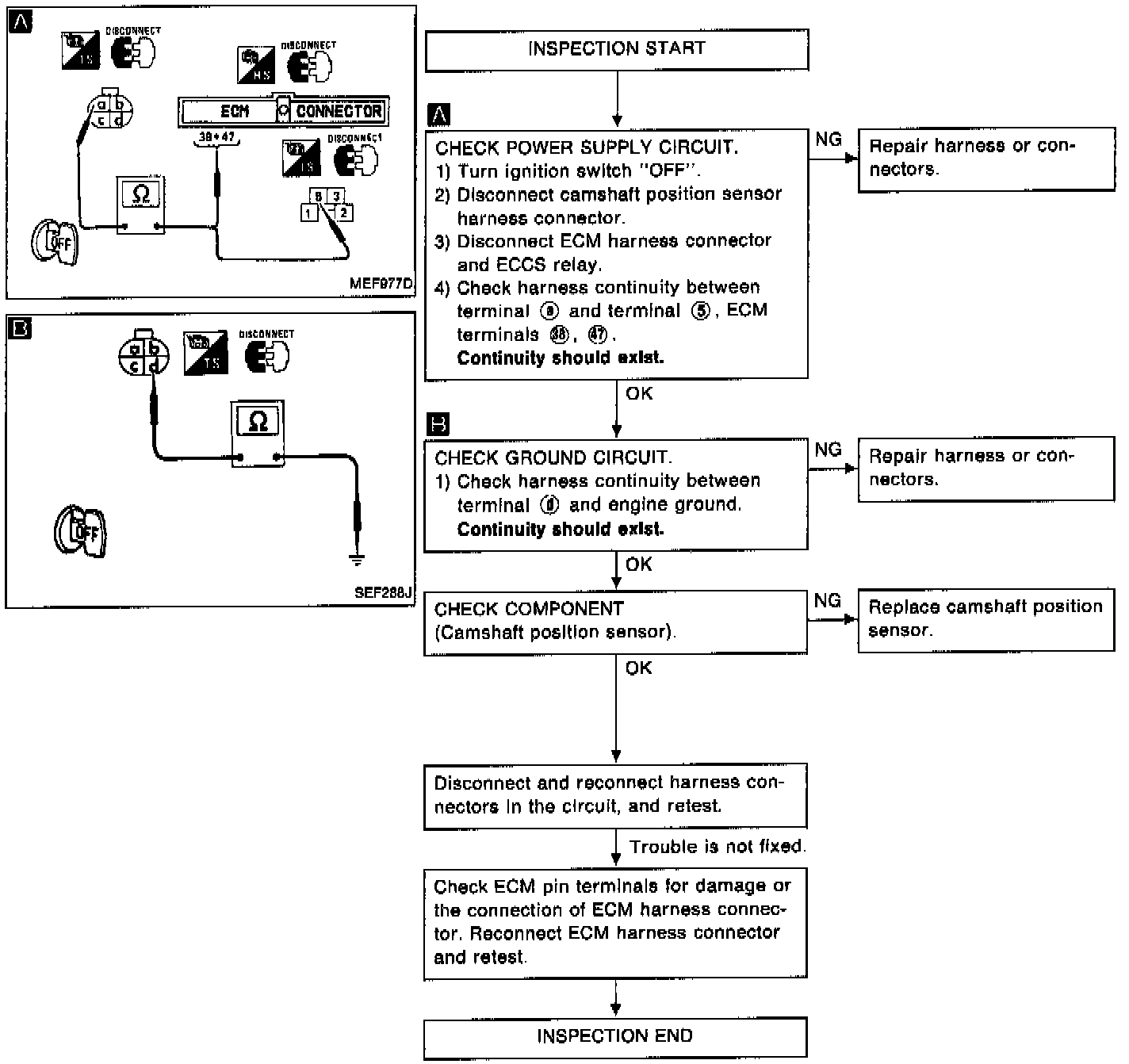

Camshaft Position Sensor Circuit Diagnostic Chart:
DIAGNOSTIC CHART

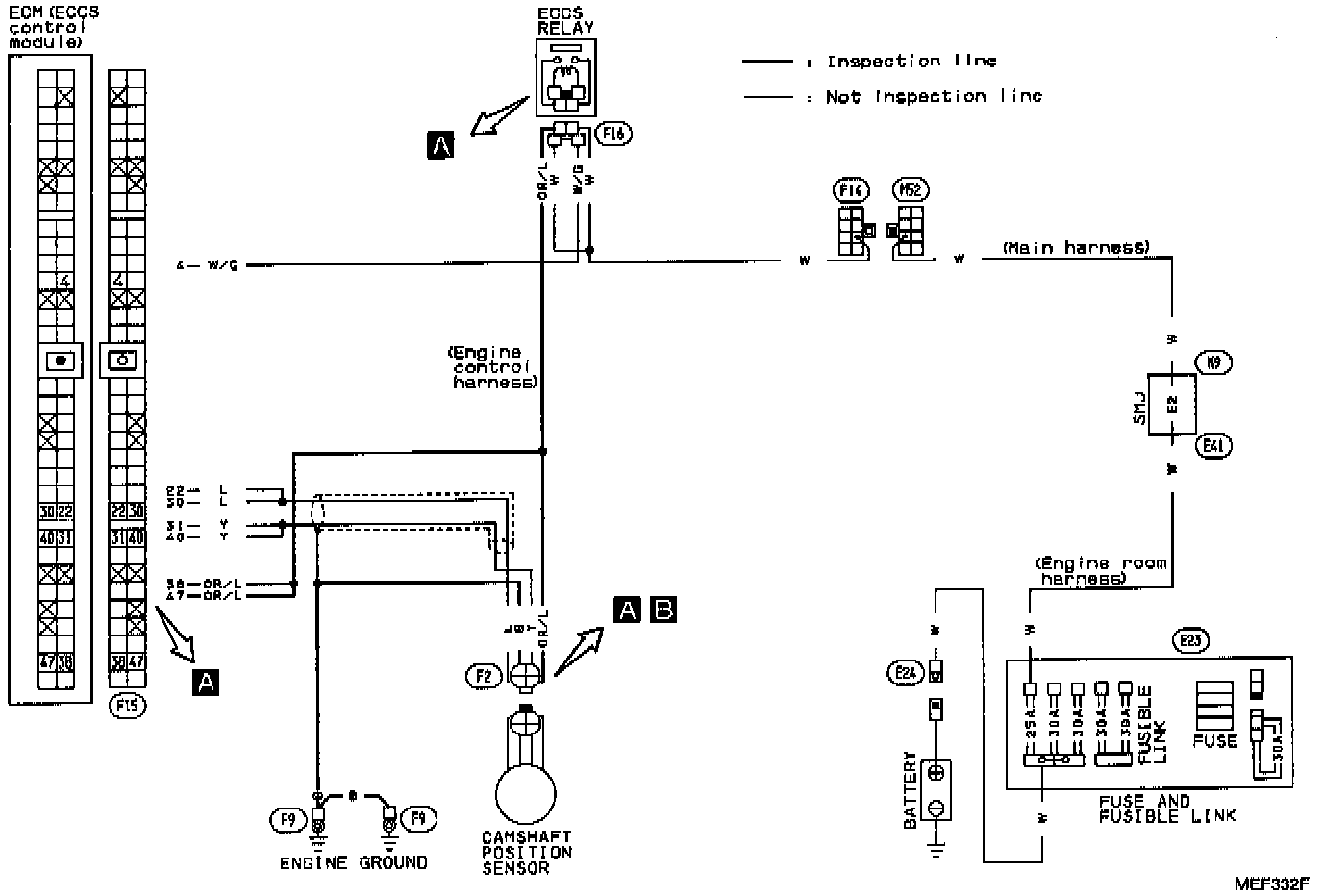

Camshaft Position Sensor Circuit:
CIRCUIT DIAGRAM

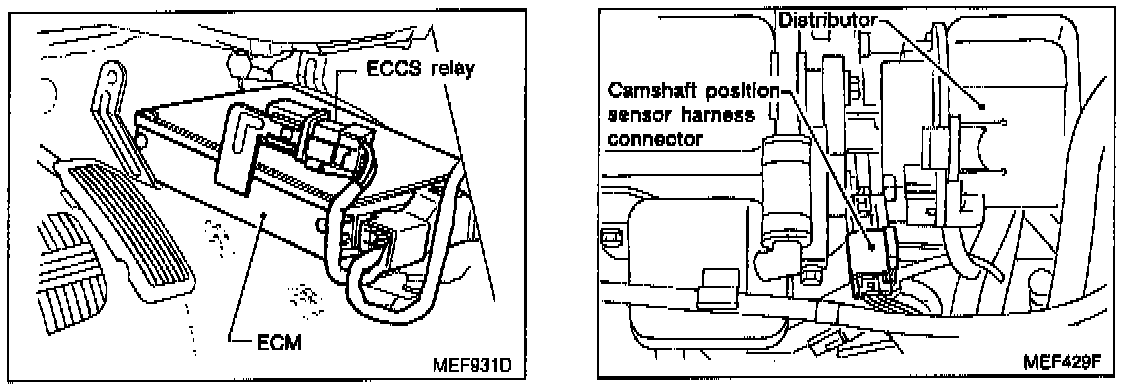

Harness Layout:
HARNESS LAYOUT
