Automatic Transmission

Cooling Fan Control Circuit Diagnostic Chart - A/T:

Cooling Fan Control Circuit Diagnostic Chart - A/T:

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE A:

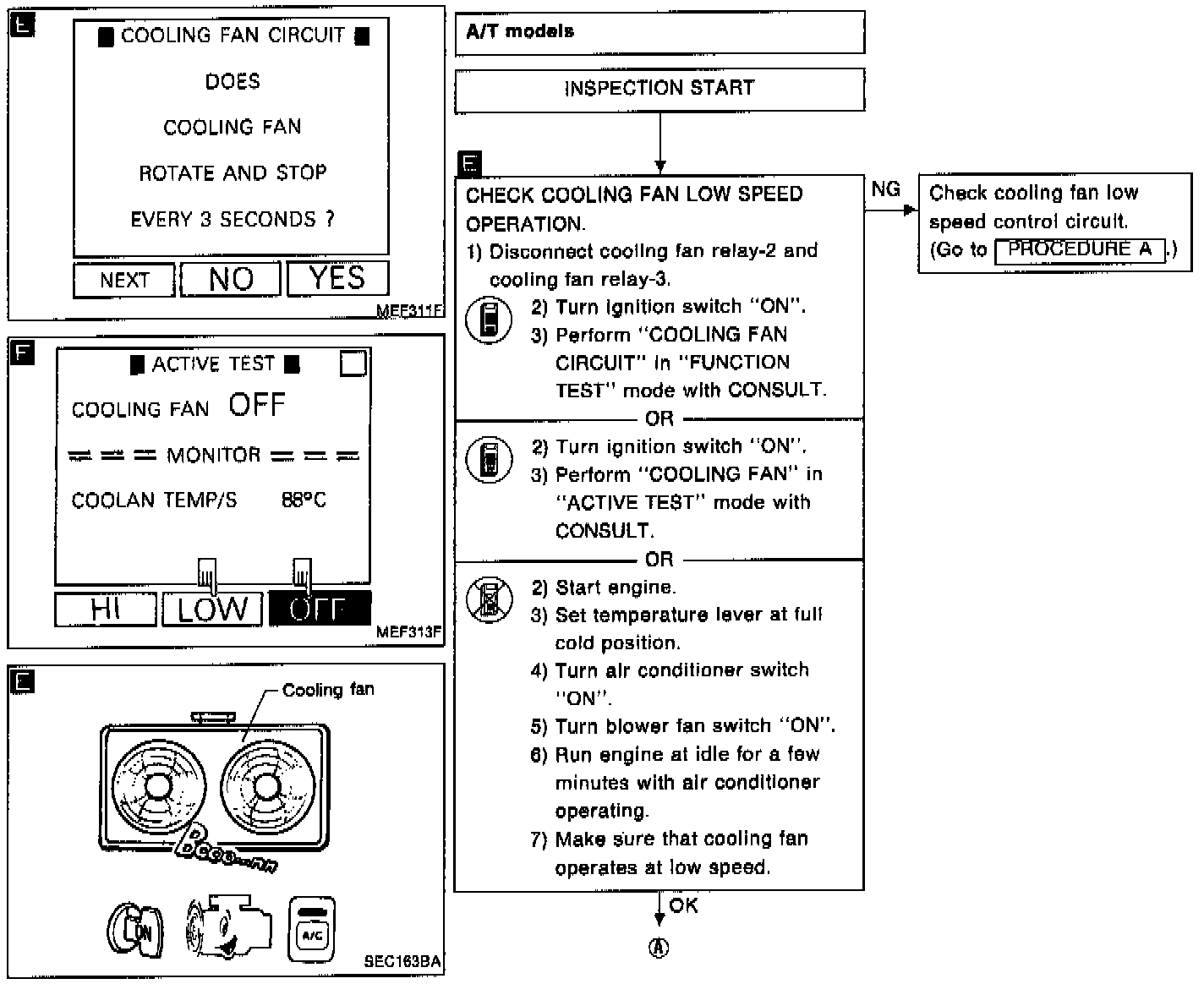

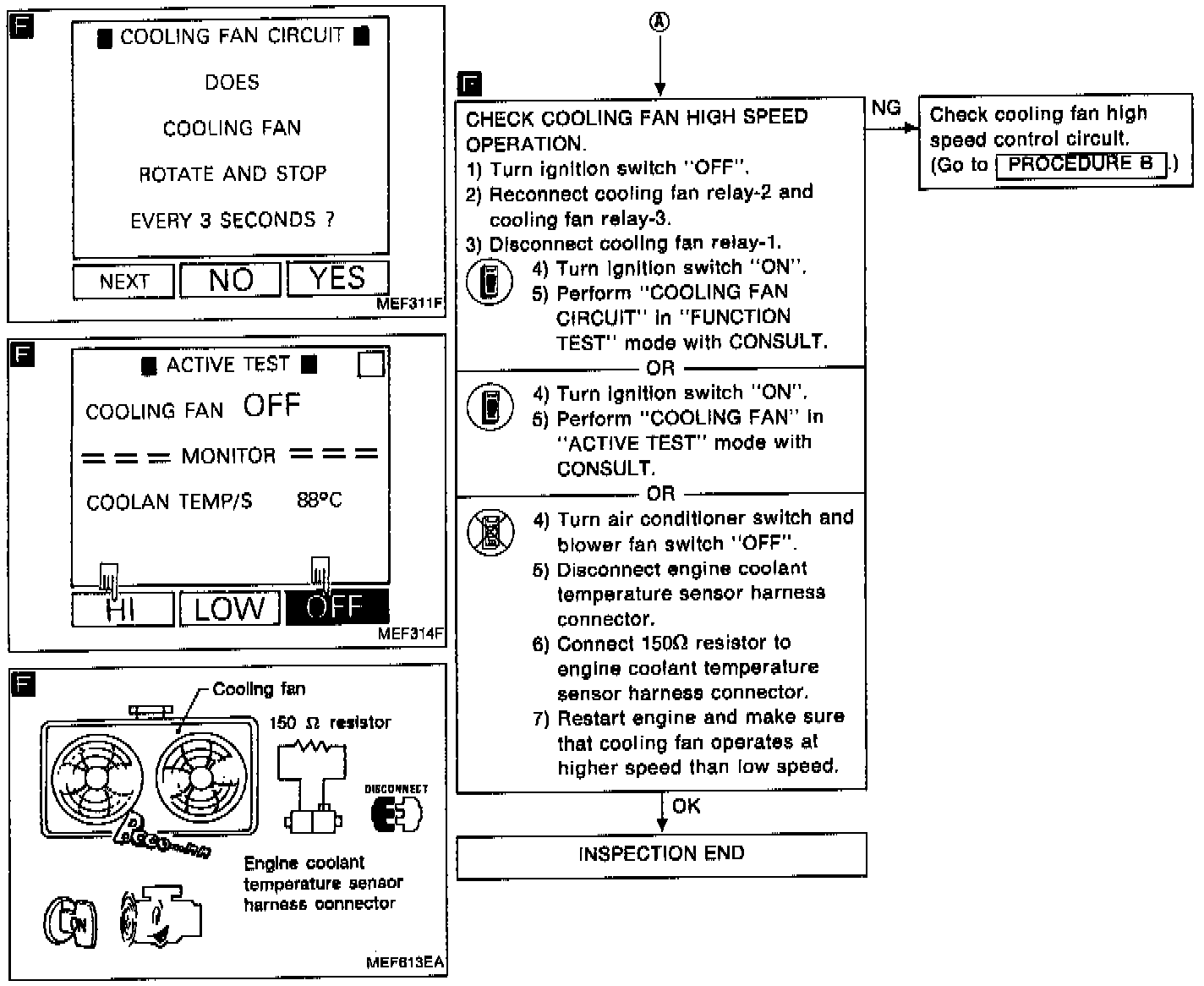

DIAGNOSTIC CHART

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE A:

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE A:

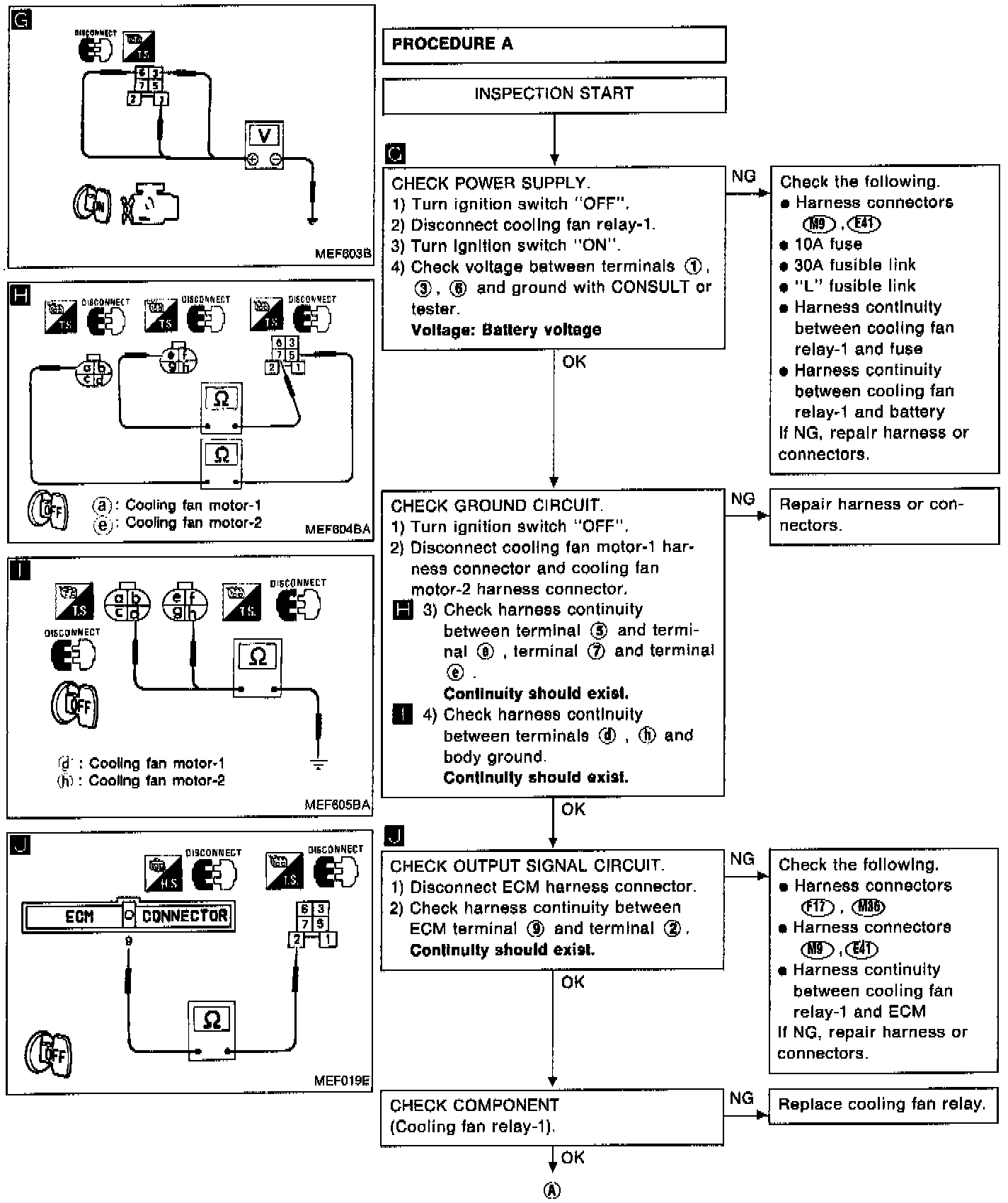

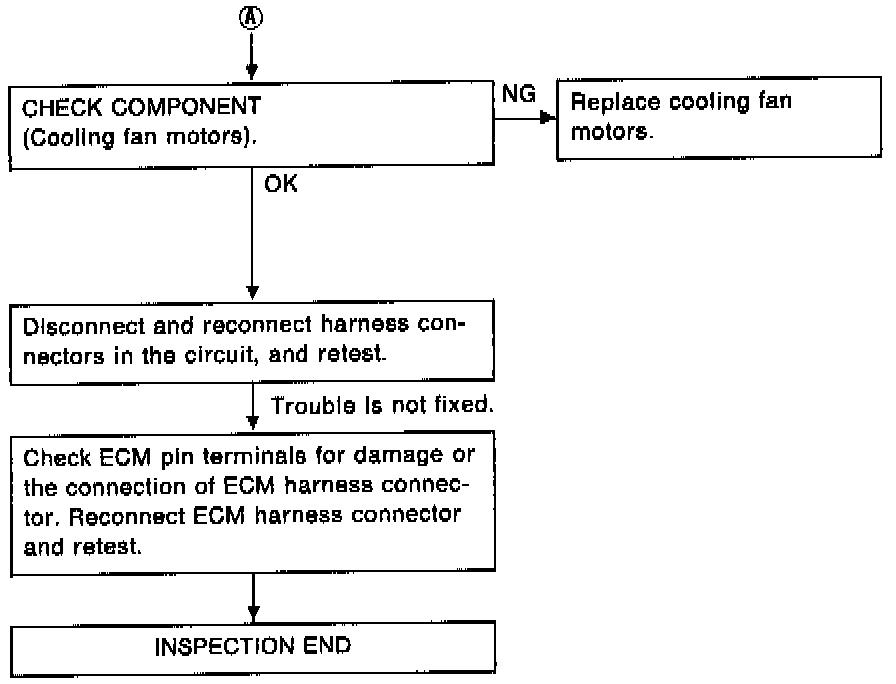

PROCEDURE A

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE B:

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE B:

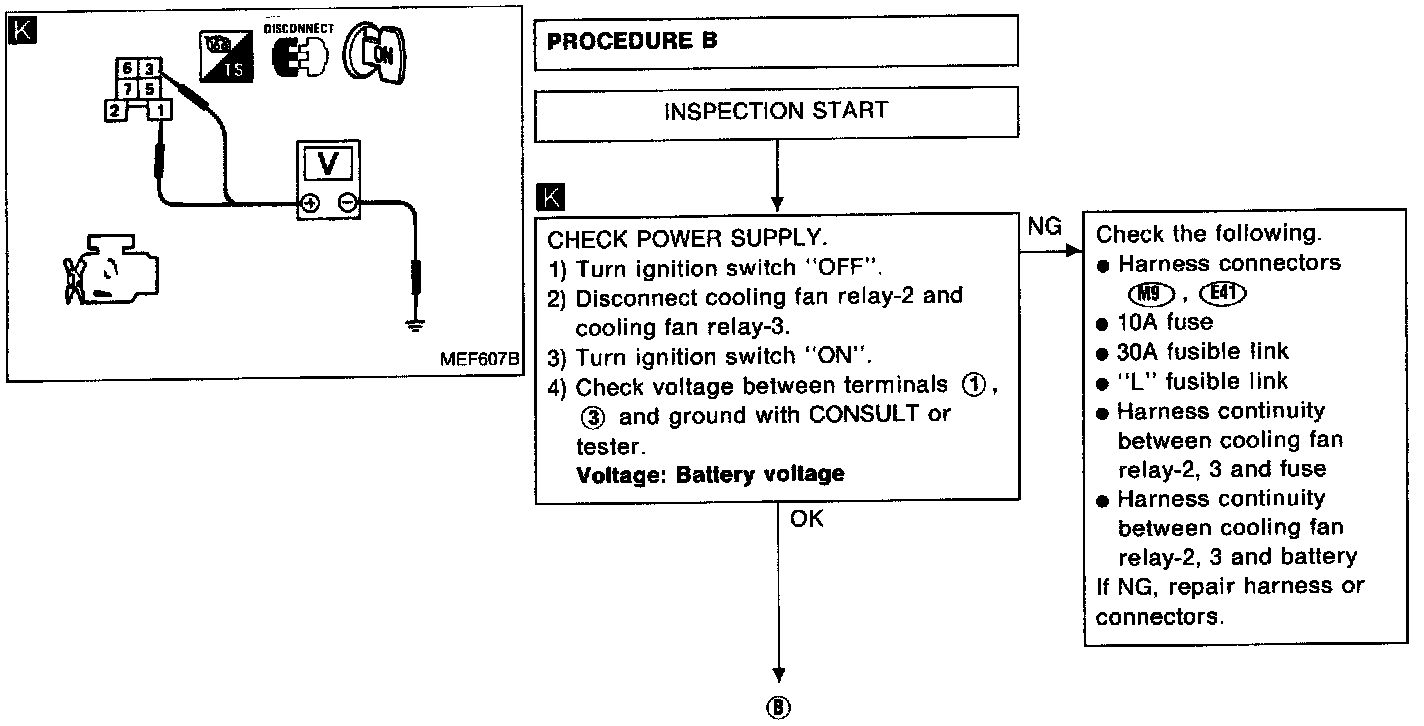

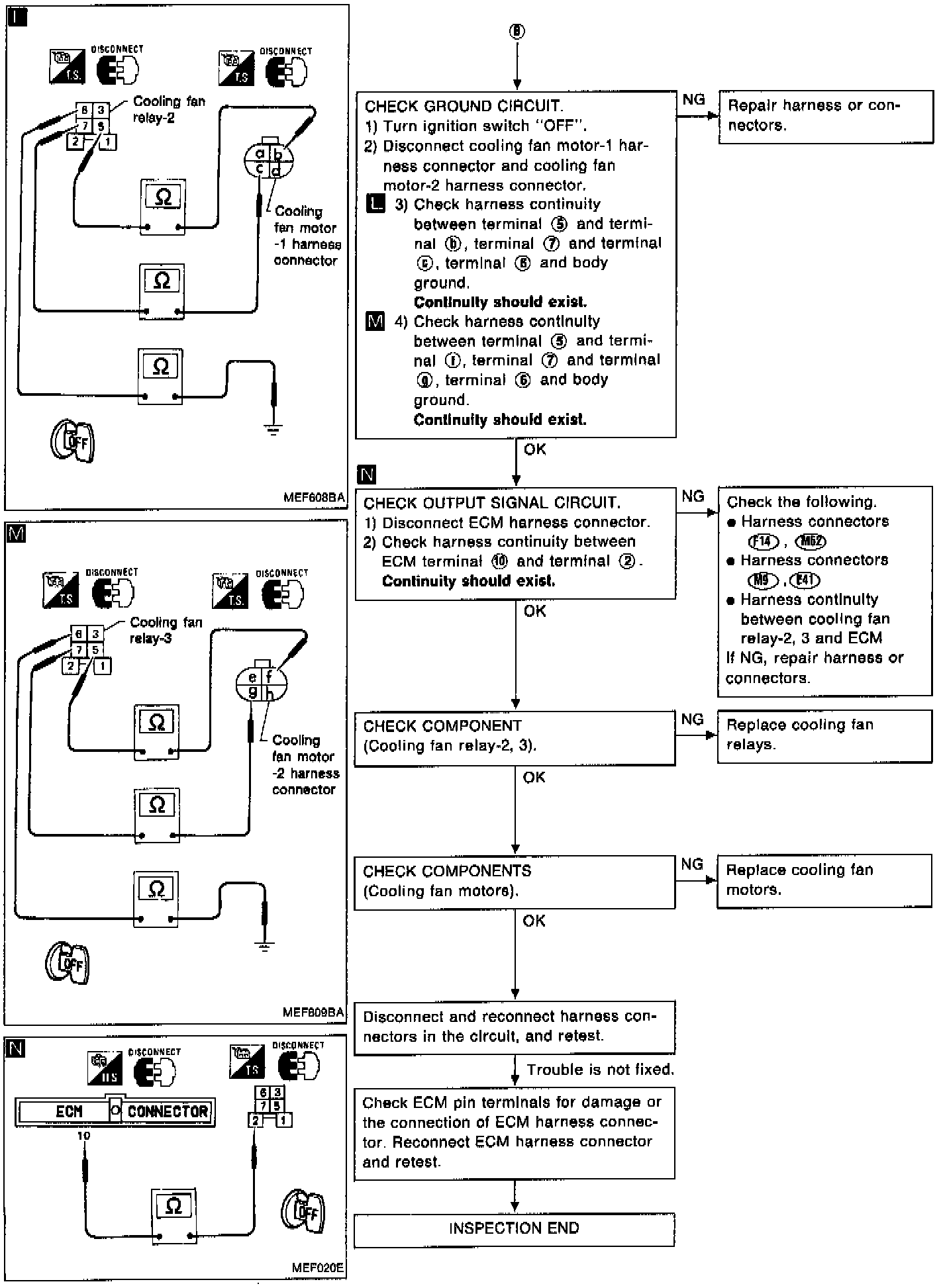

PROCEDURE B

Cooling Fan Control Circuit:

CIRCUIT DIAGRAM

Harness Layout:

HARNESS LAYOUT
