Manual Transmission

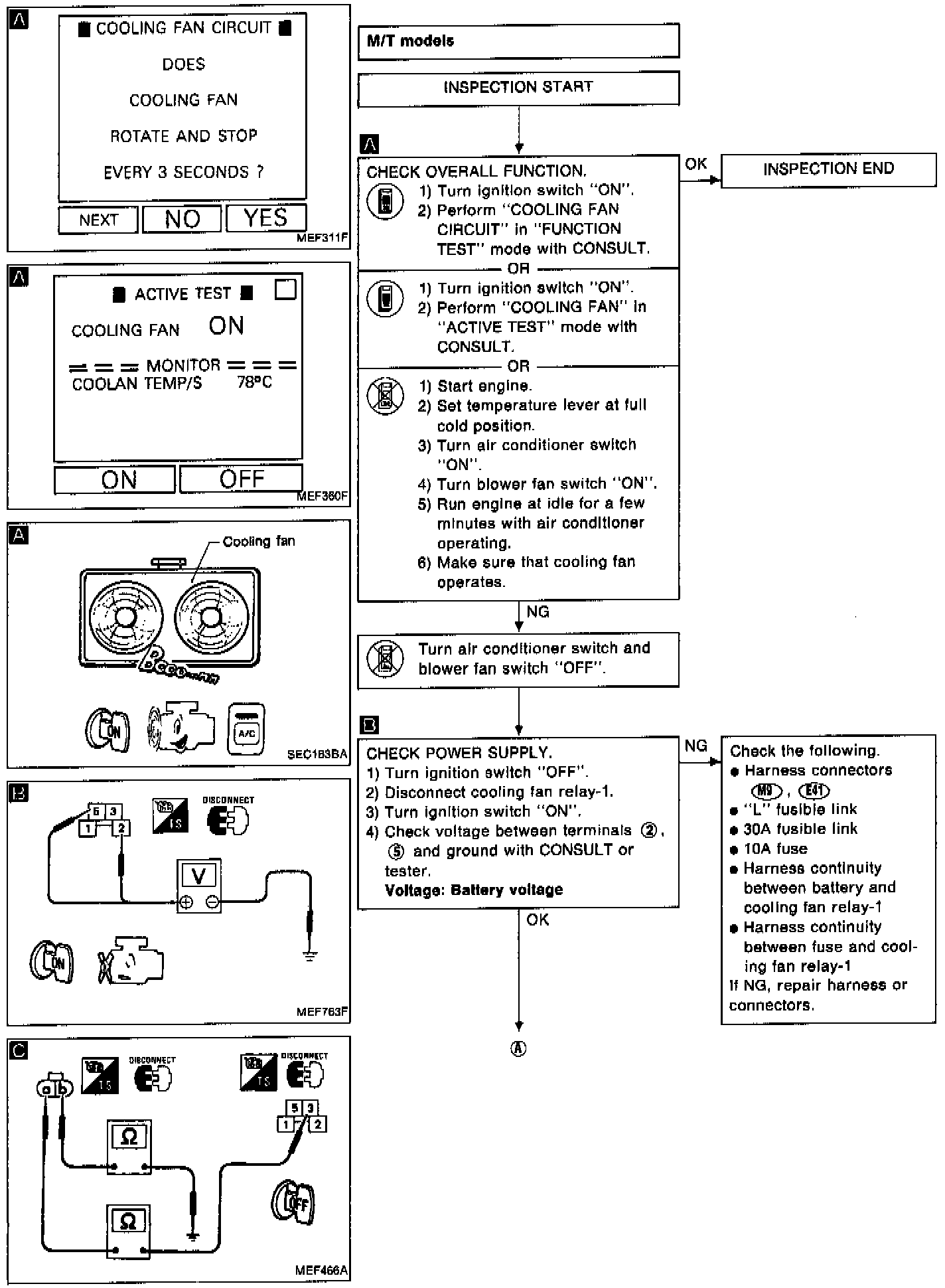

Cooling Fan Control Circuit Diagnostic Chart - M/T:




Cooling Fan Control Circuit Diagnostic Chart - M/T:

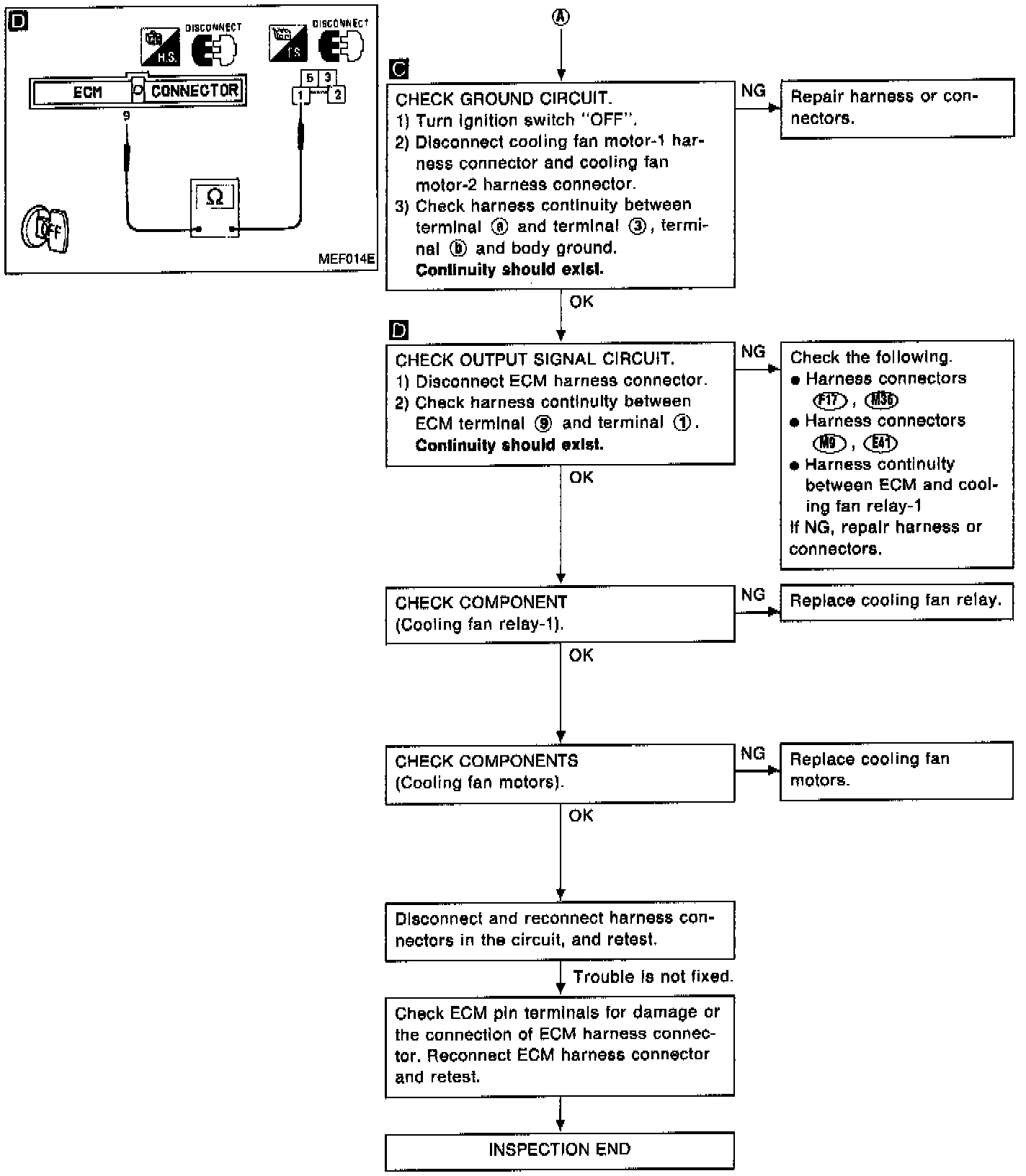

DIAGNOSTIC CHART

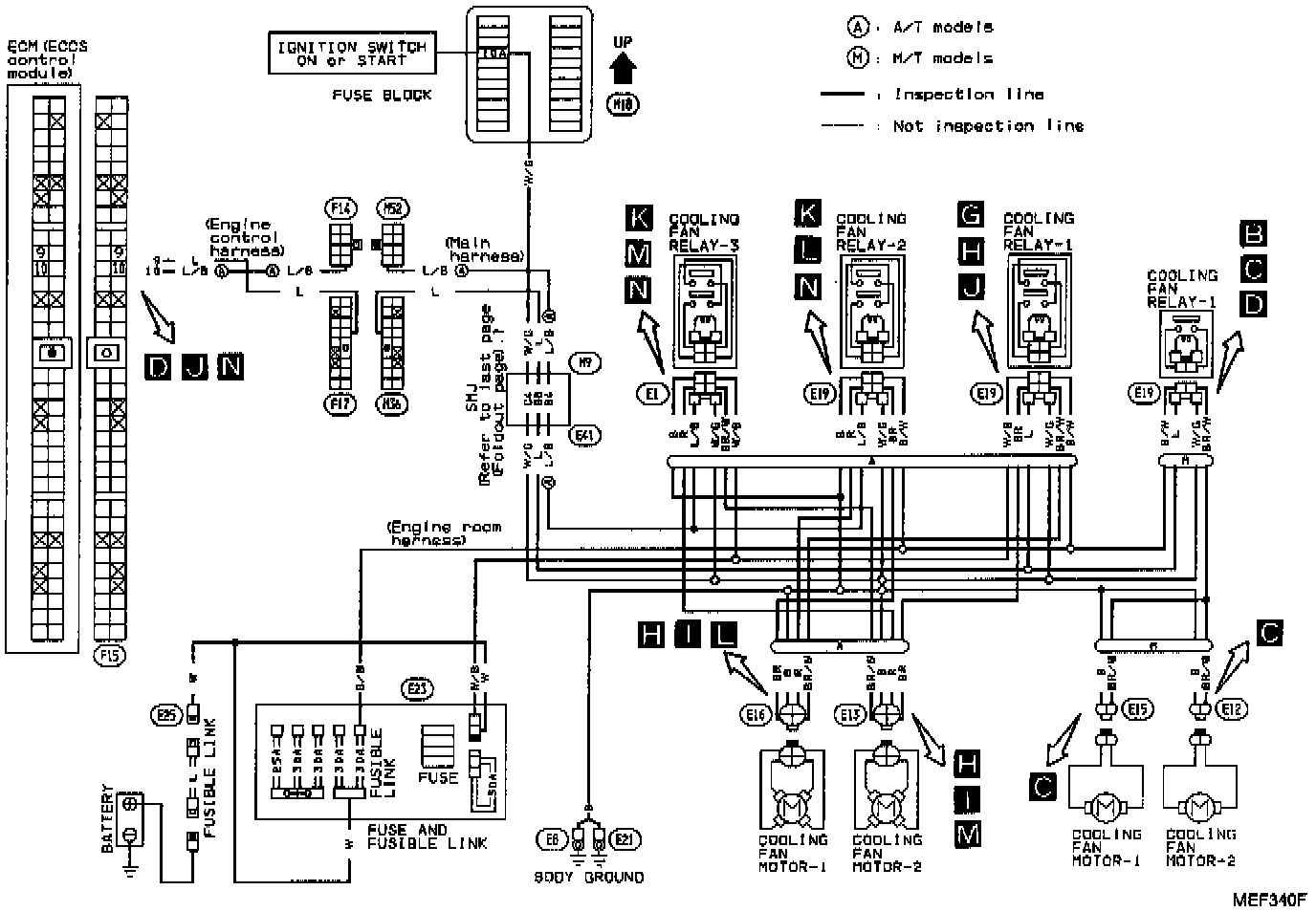

Cooling Fan Control Circuit:





CIRCUIT DIAGRAM

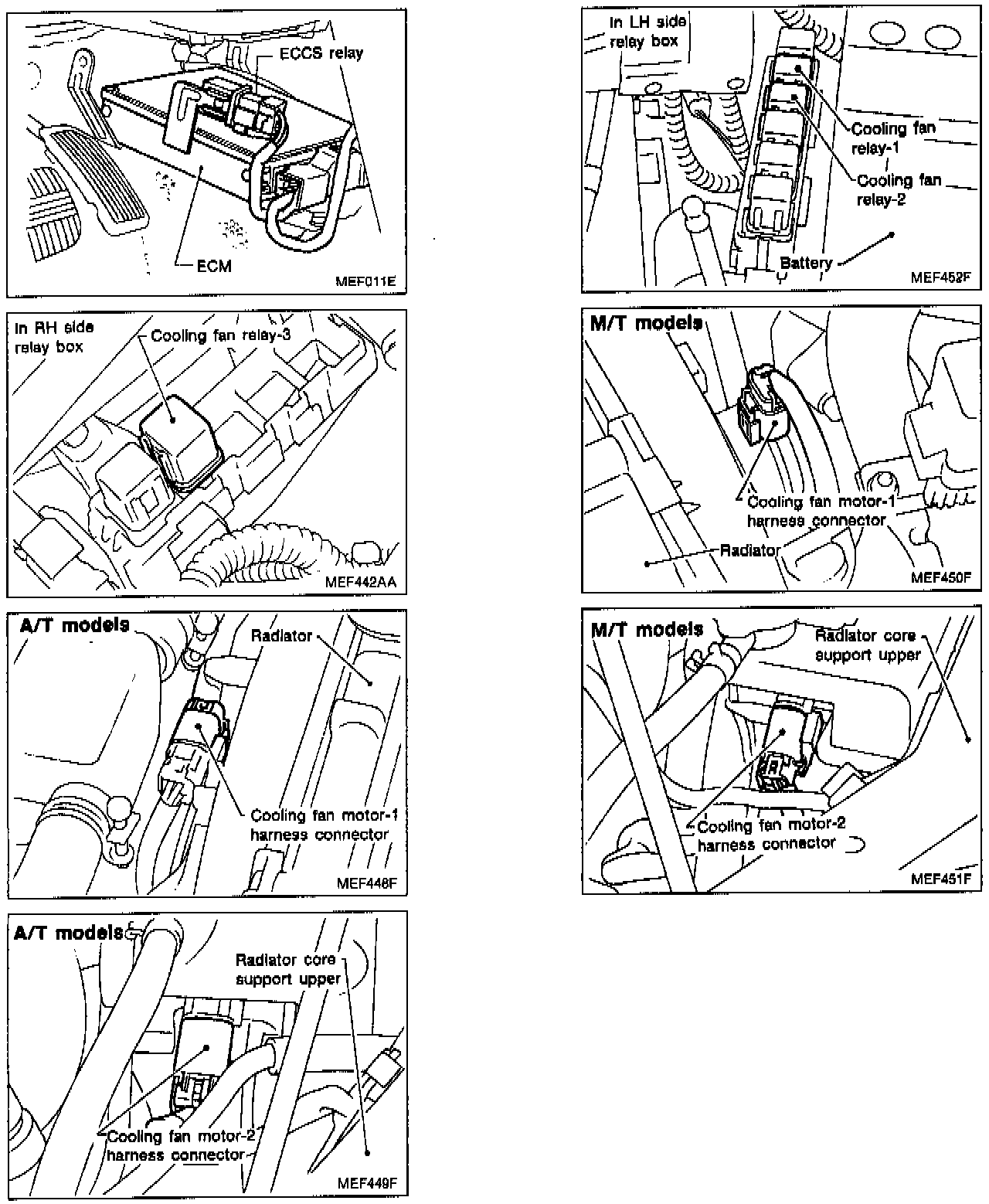

Harness Layout:





HARNESS LAYOUT
