EGR Control (Federal)

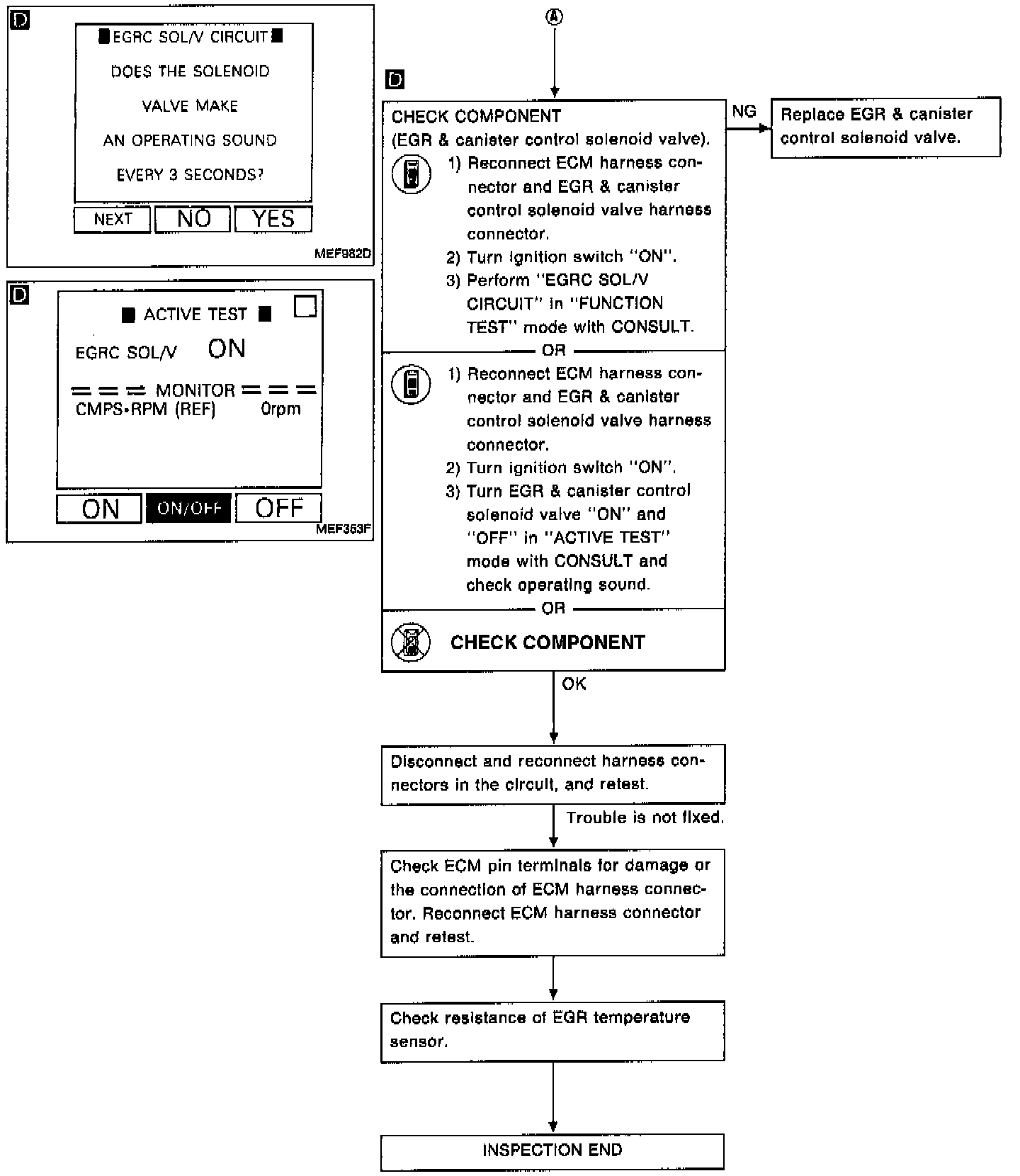

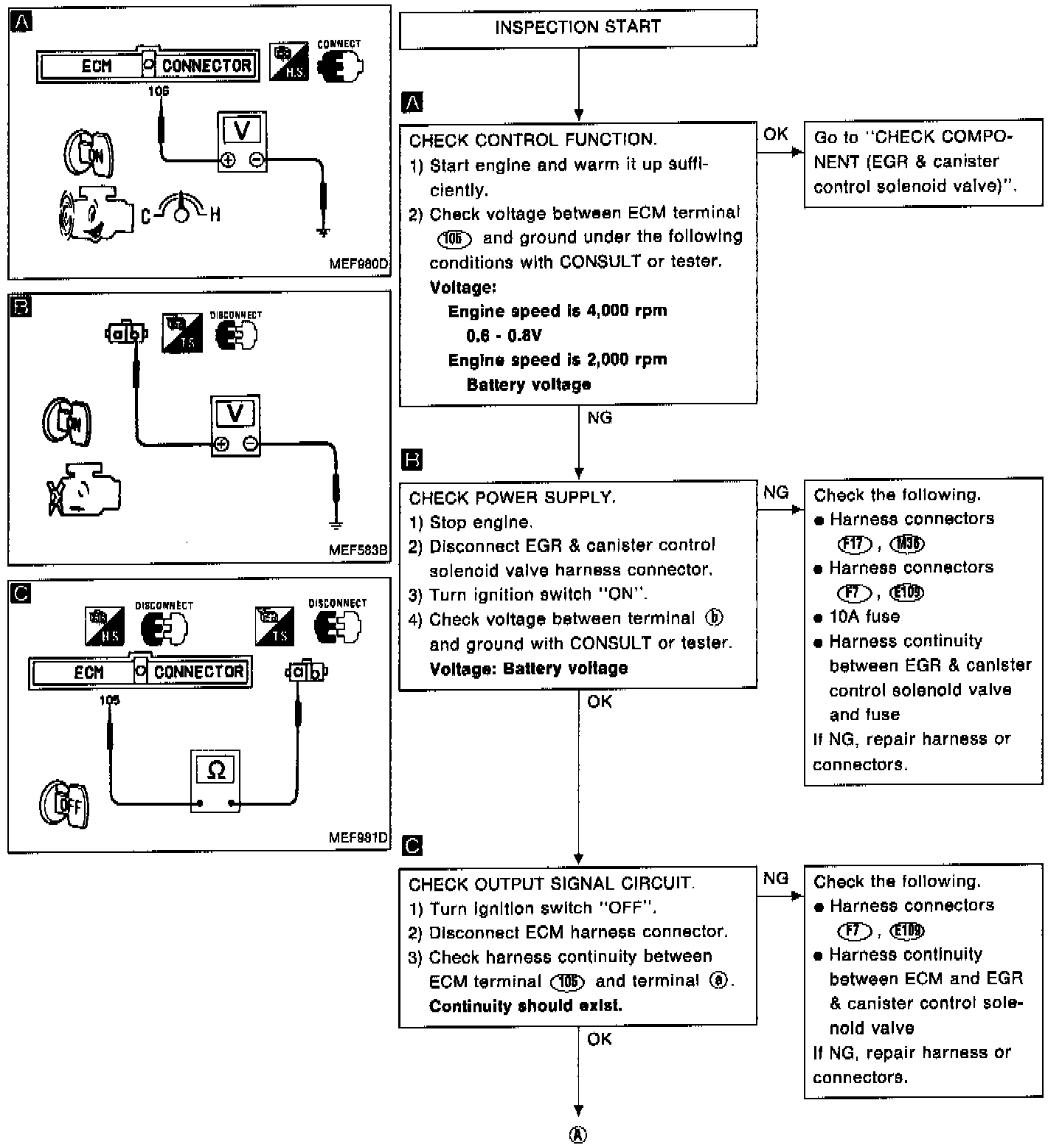

EGR/Canister Purge Control Circuit Diagnostic Chart:




EGR/Canister Purge Control Circuit Diagnostic Chart:





DIAGNOSTIC CHART

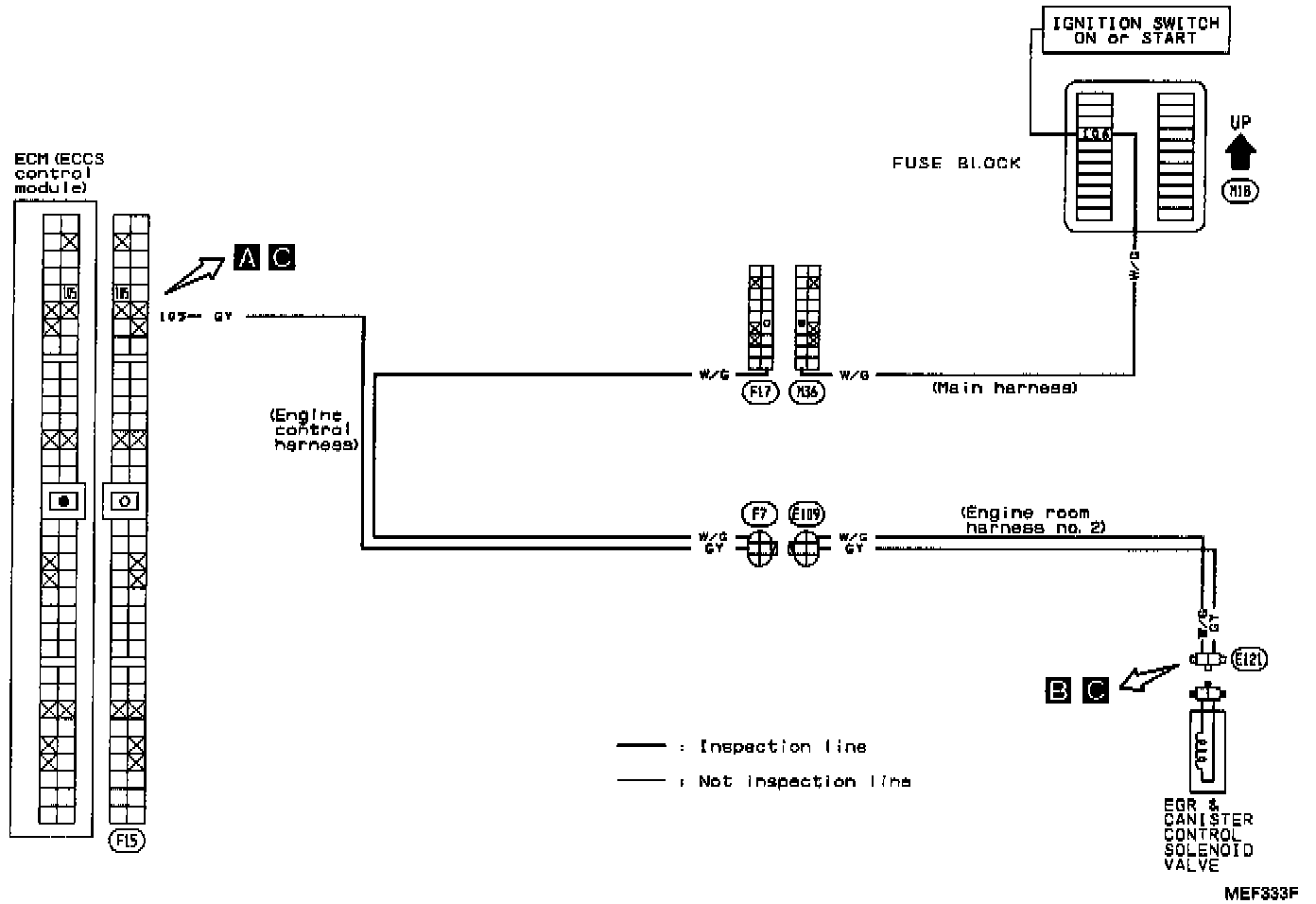

EGR/Canister Purge Control Circuit:





CIRCUIT DIAGRAM

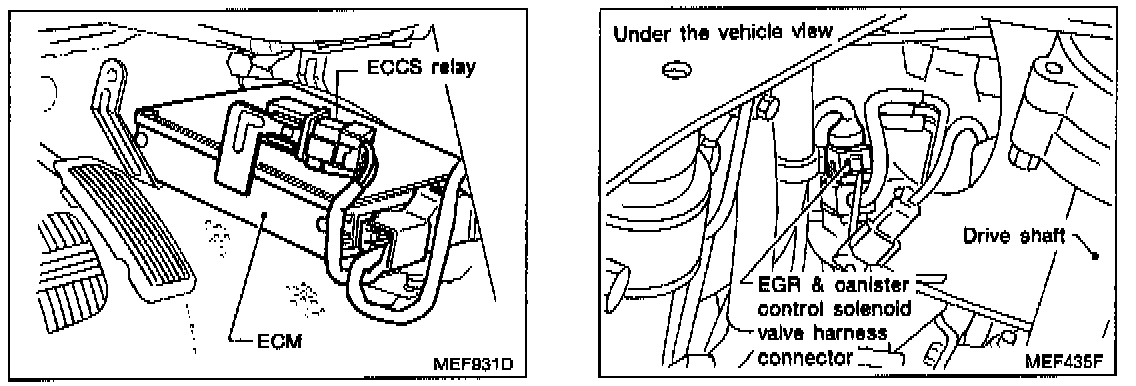

Harness Layout:





HARNESS LAYOUT
