Oxygen Sensor

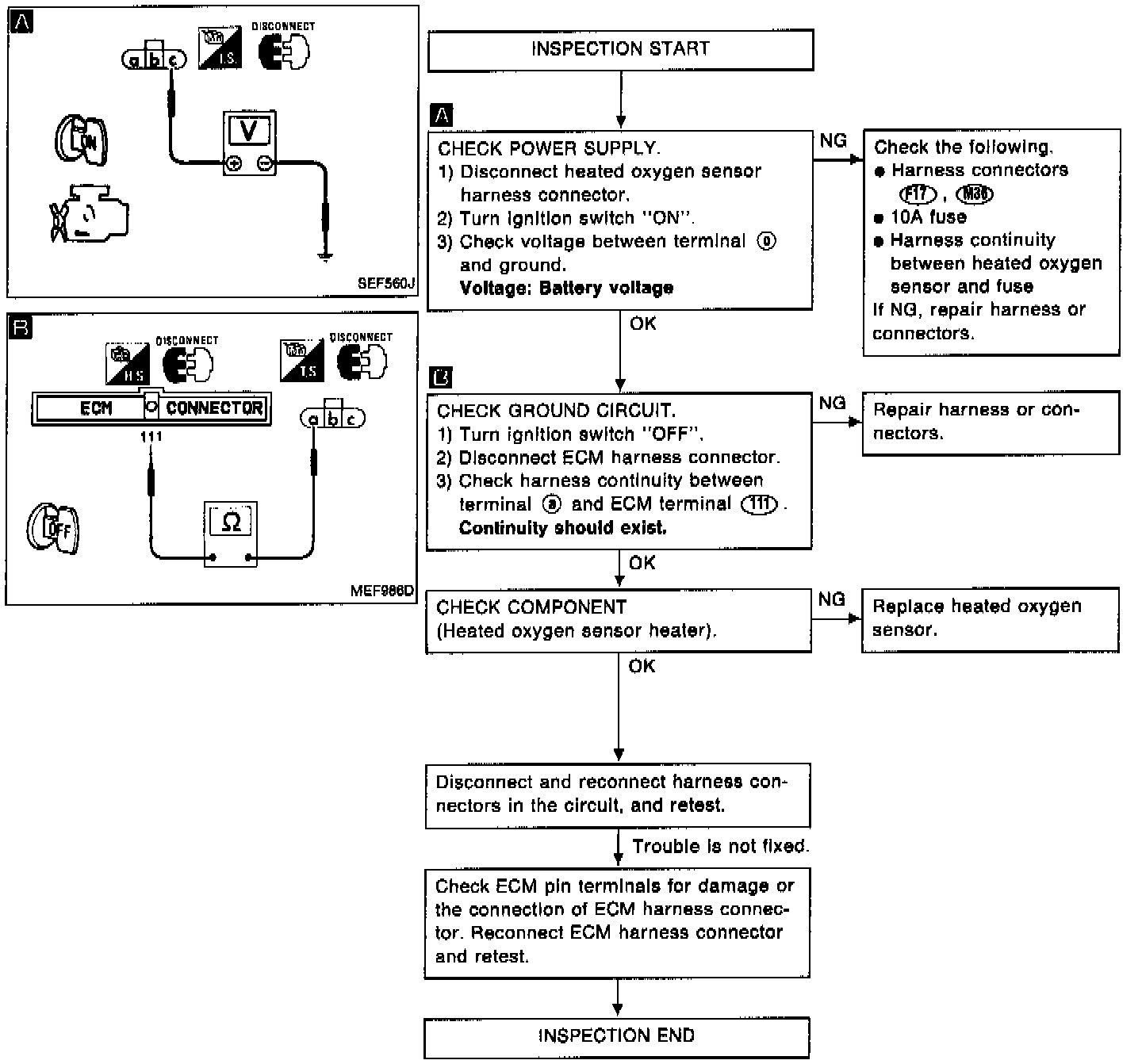

Heated 02 Sensor Circuit Diagnostic Chart:





DIAGNOSTIC CHART

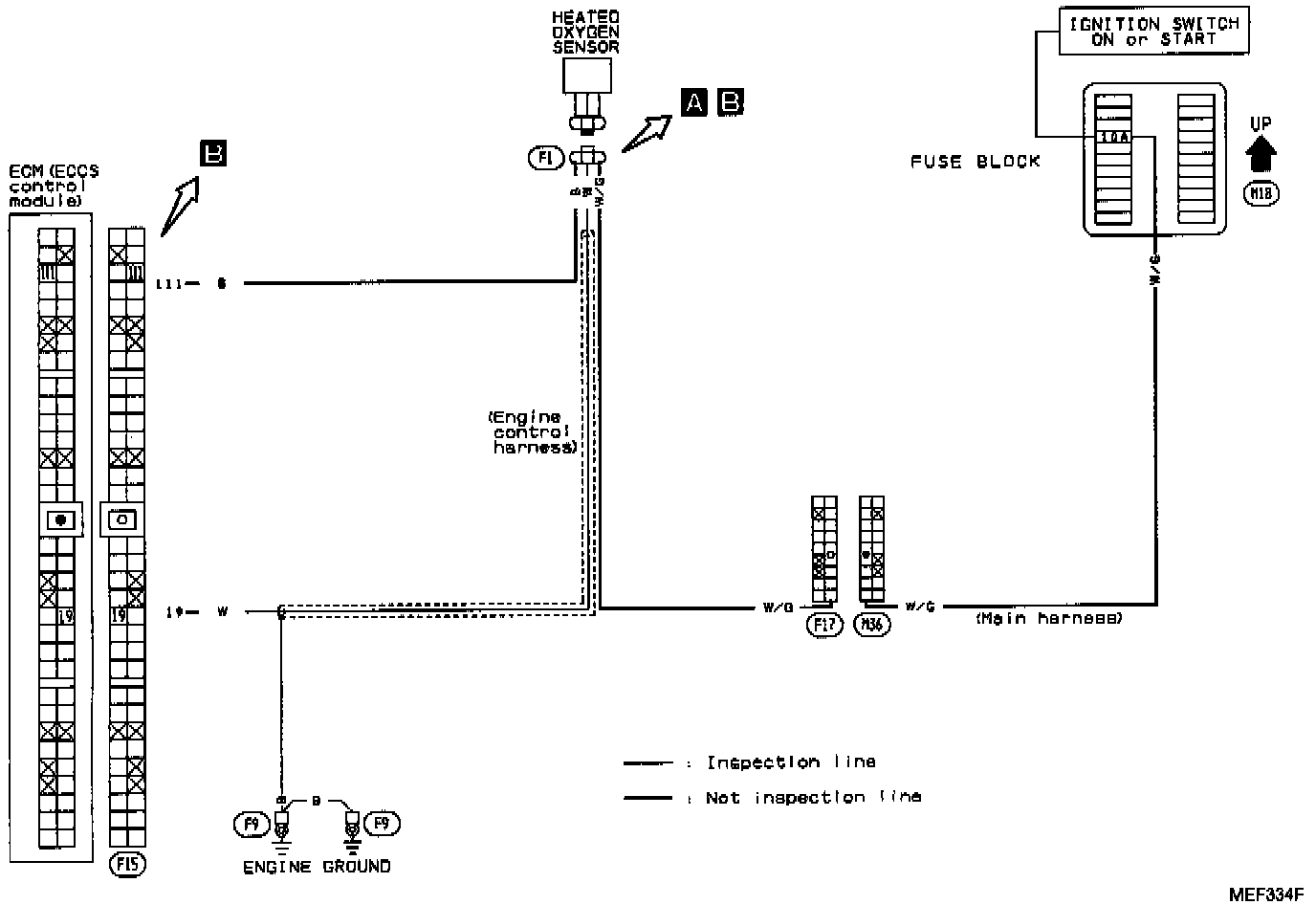

Heated O2 Sensor Circuit:





CIRCUIT DIAGRAM

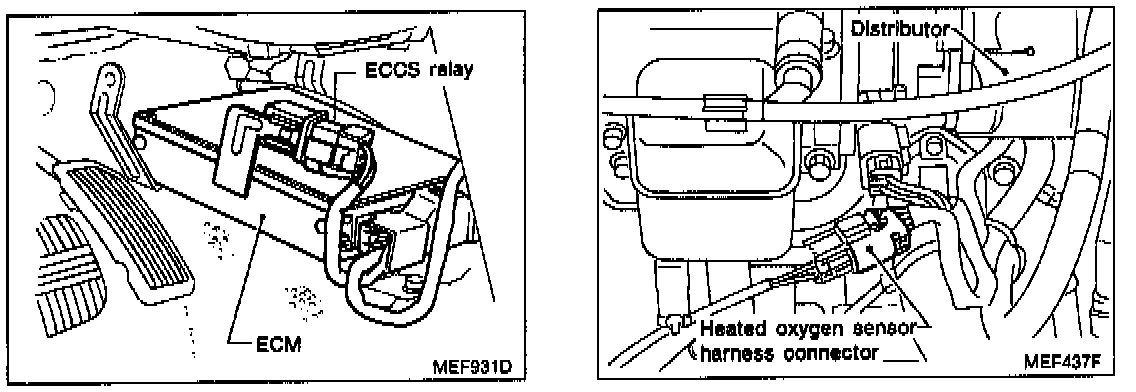

Harness Layout:





HARNESS LAYOUT
