Power Steering Oil Pressure Switch

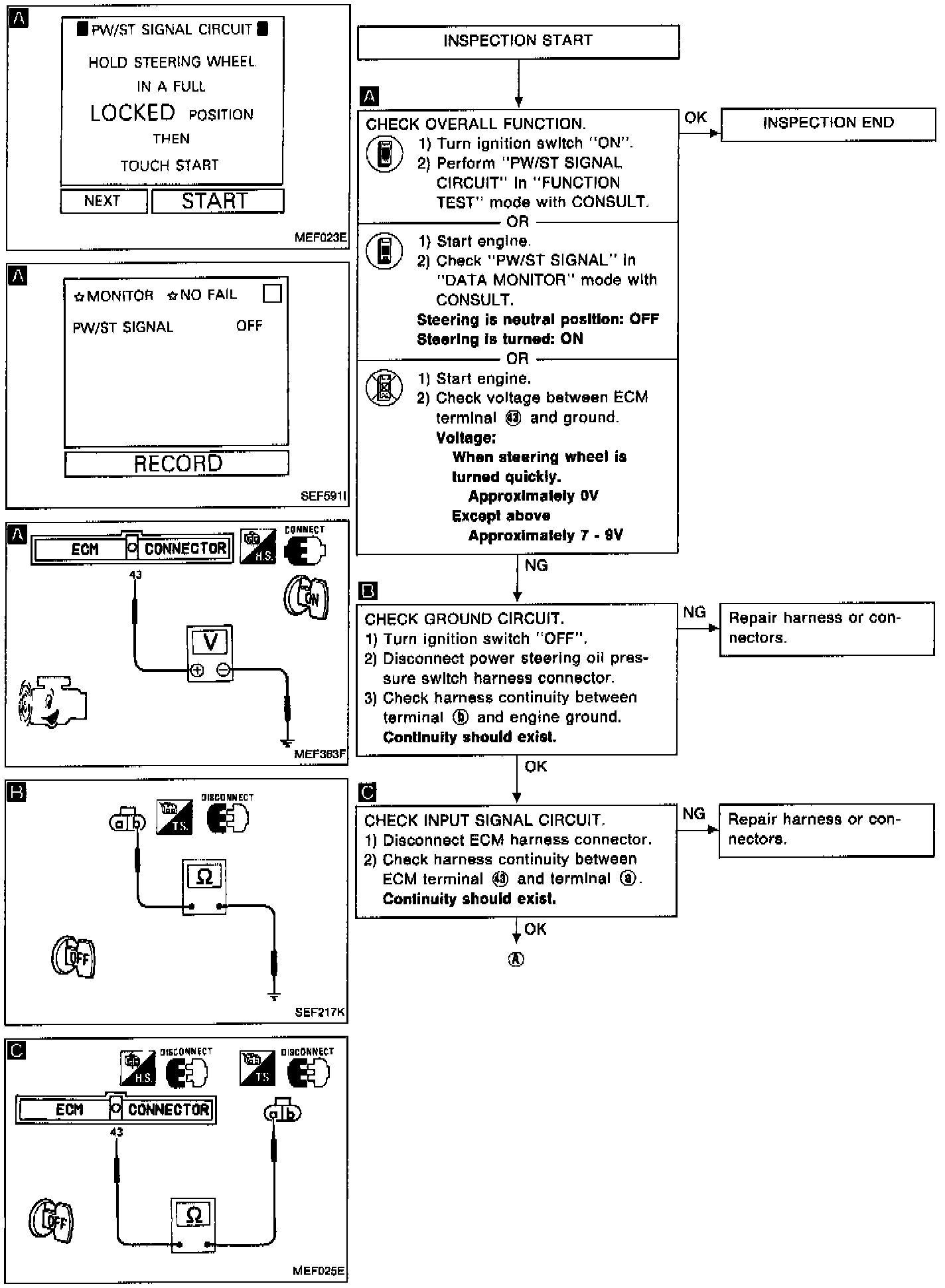

Power Steering Switch Circuit Diagnostic Chart:

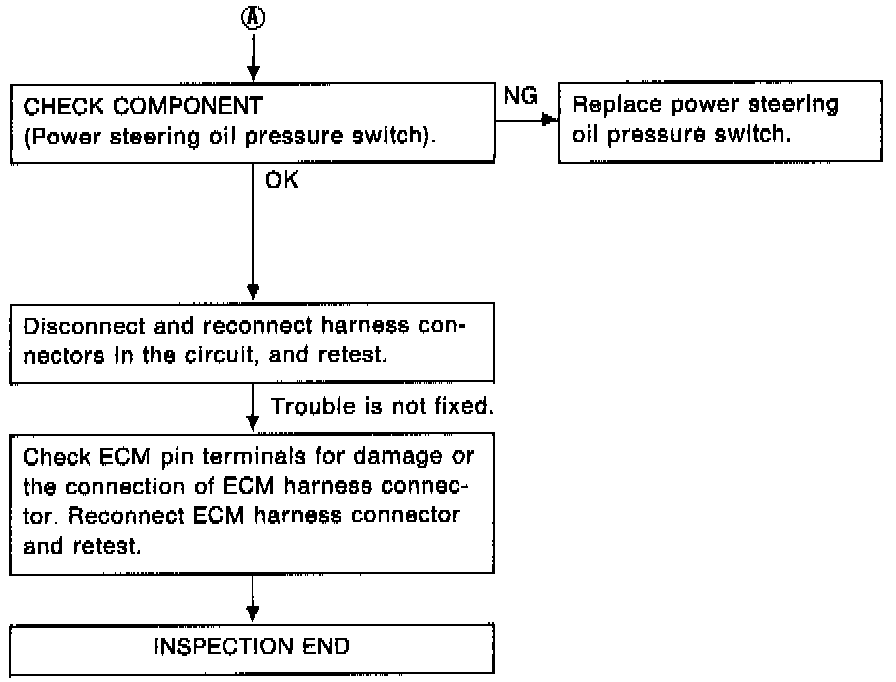

Power Steering Switch Circuit Diagnostic Chart:





DIAGNOSTIC CHART

Power Steering Switch Circuit:





CIRCUIT DIAGRAM

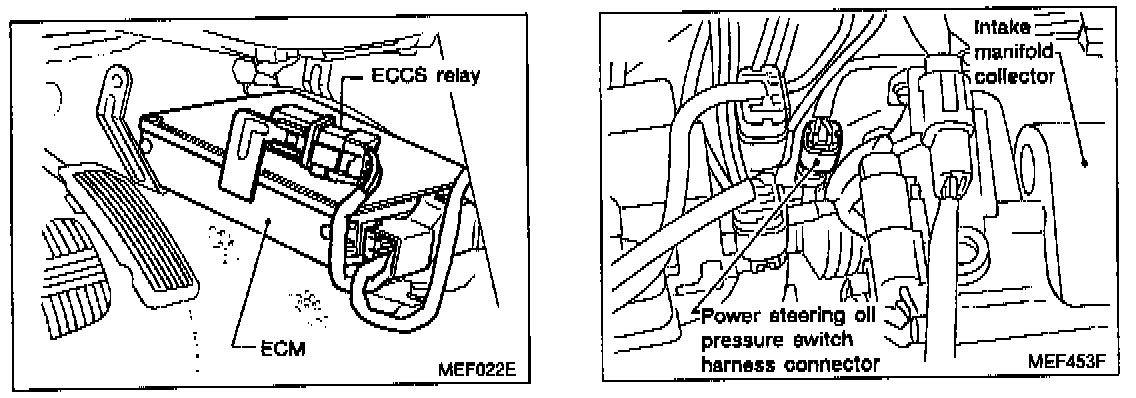

Harness Layout:





HARNESS LAYOUT
