Home >> Nissan-Datsun >> 1994 >> Sentra (2 Door) L4-1998cc 2.0L DOHC MFI (SR20DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures

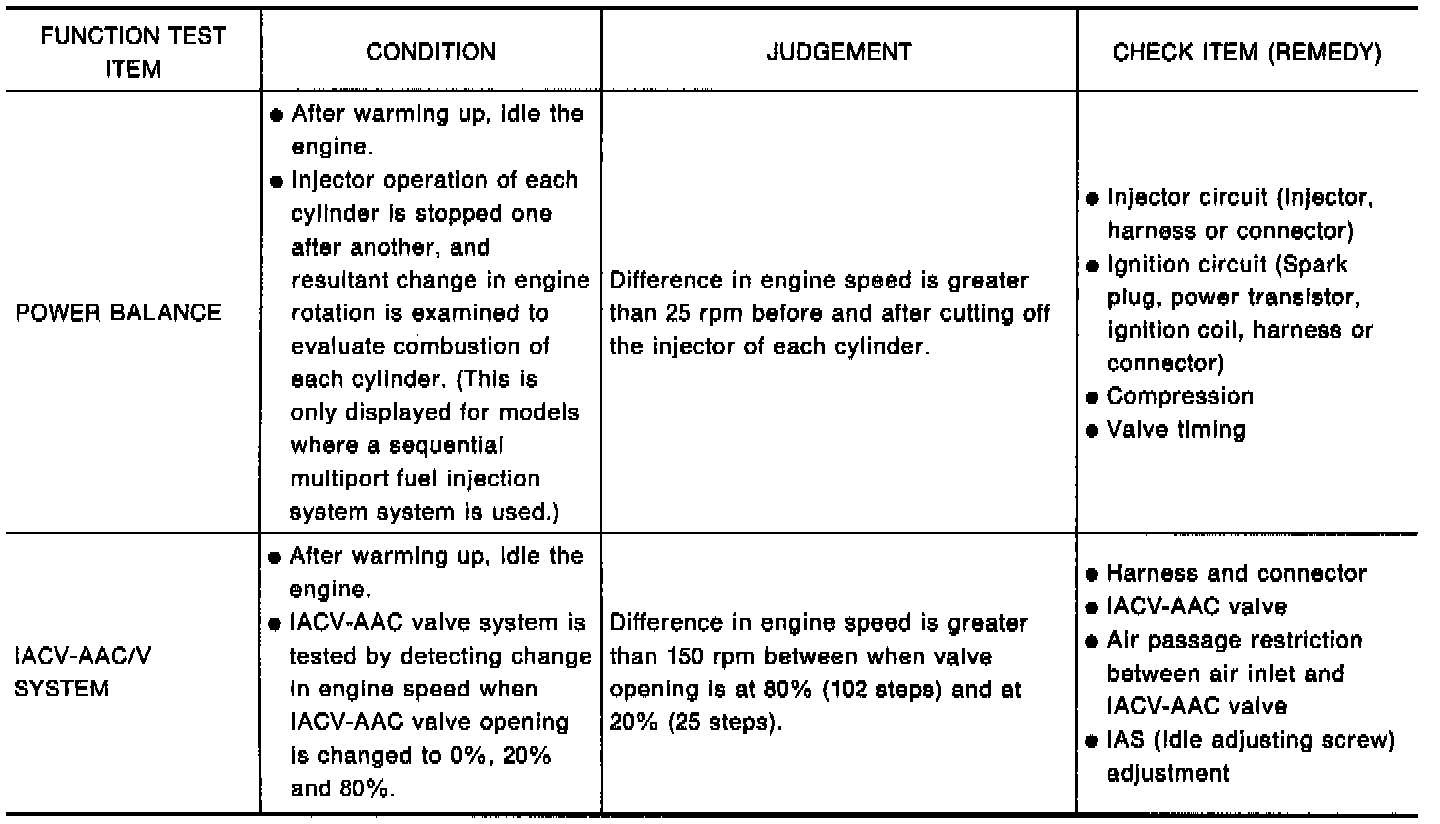

CONSULT Chart:

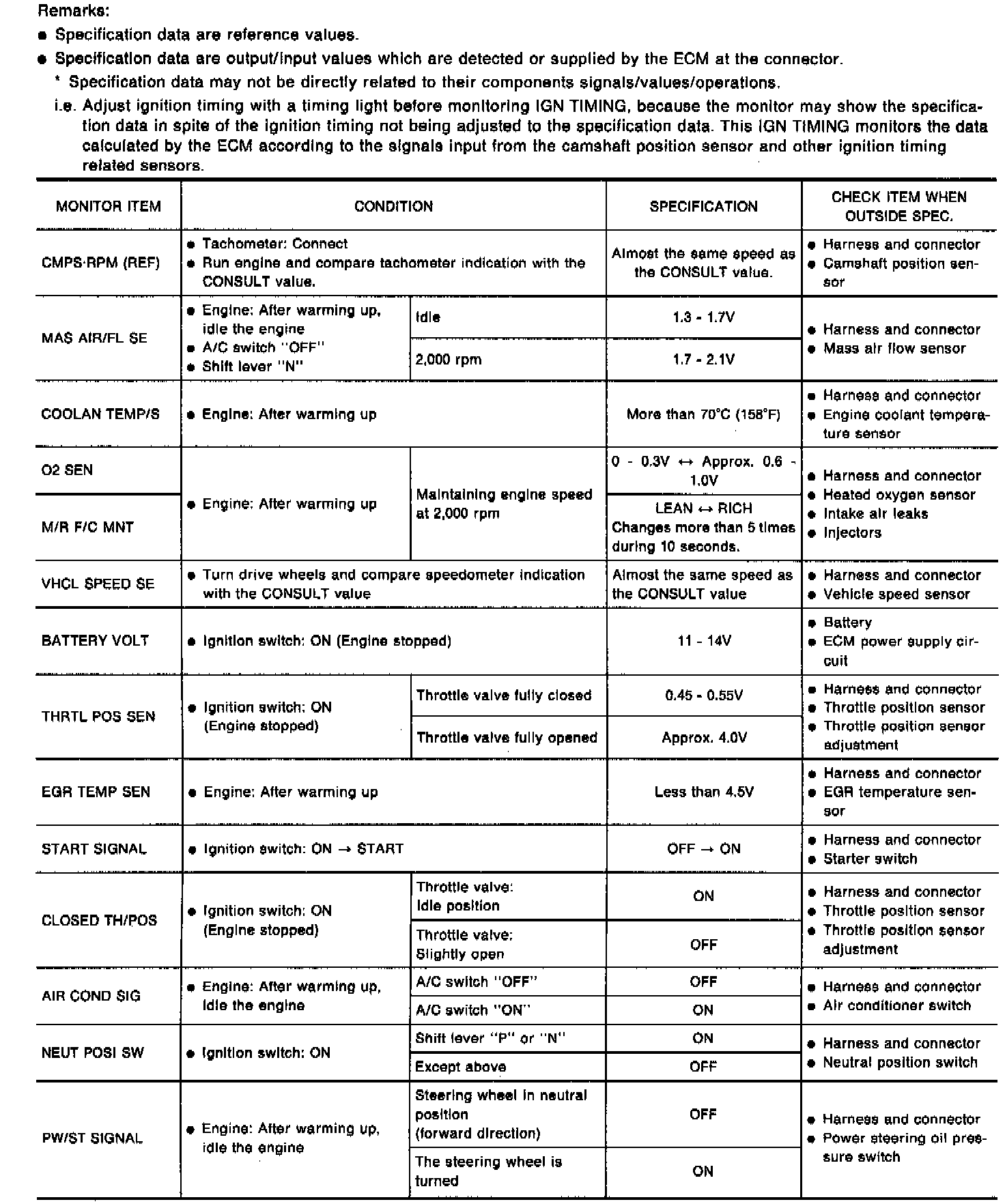

CONSULT Chart:

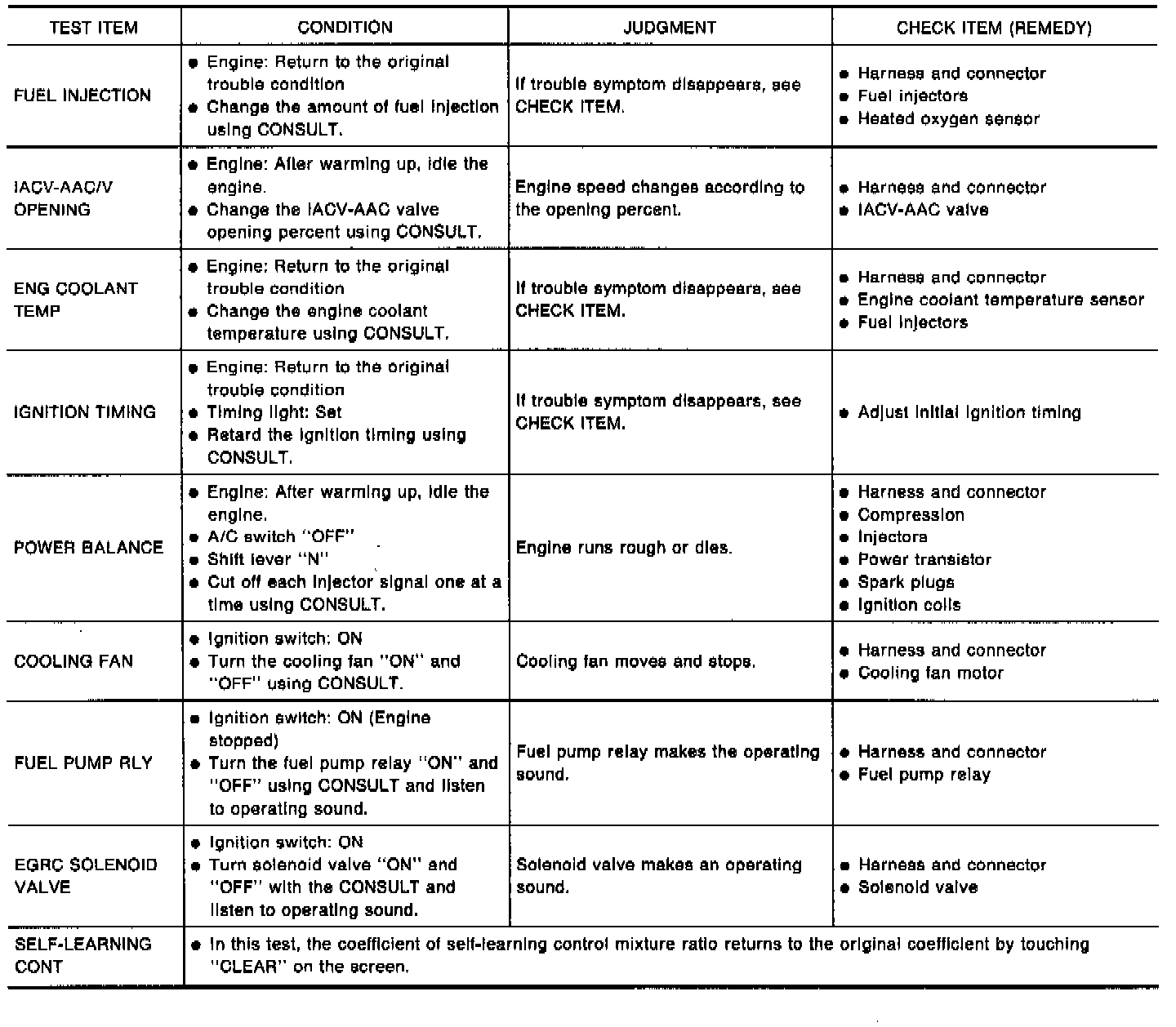

CONSULT Chart:

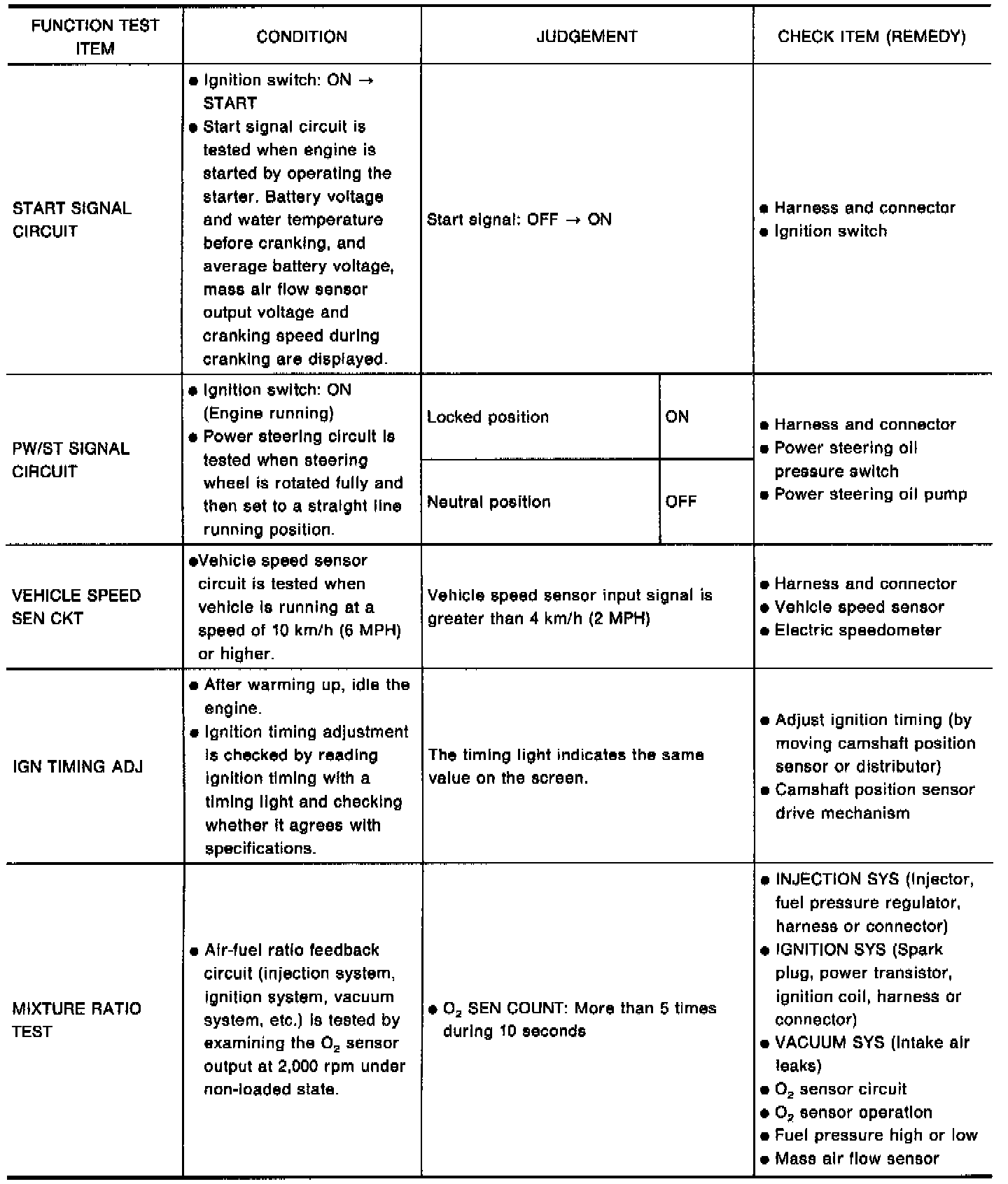

CONSULT Chart:

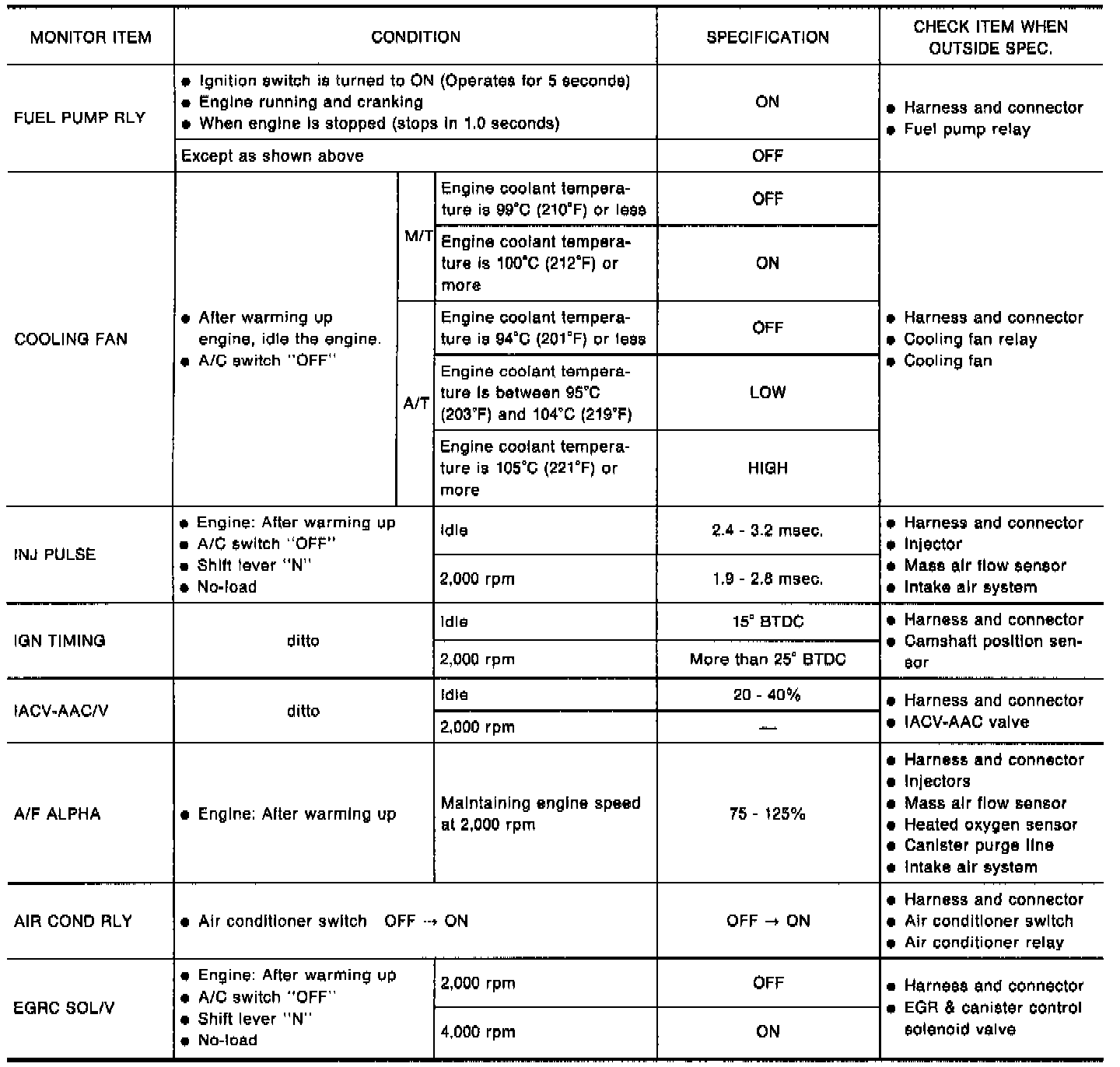

CONSULT Chart:

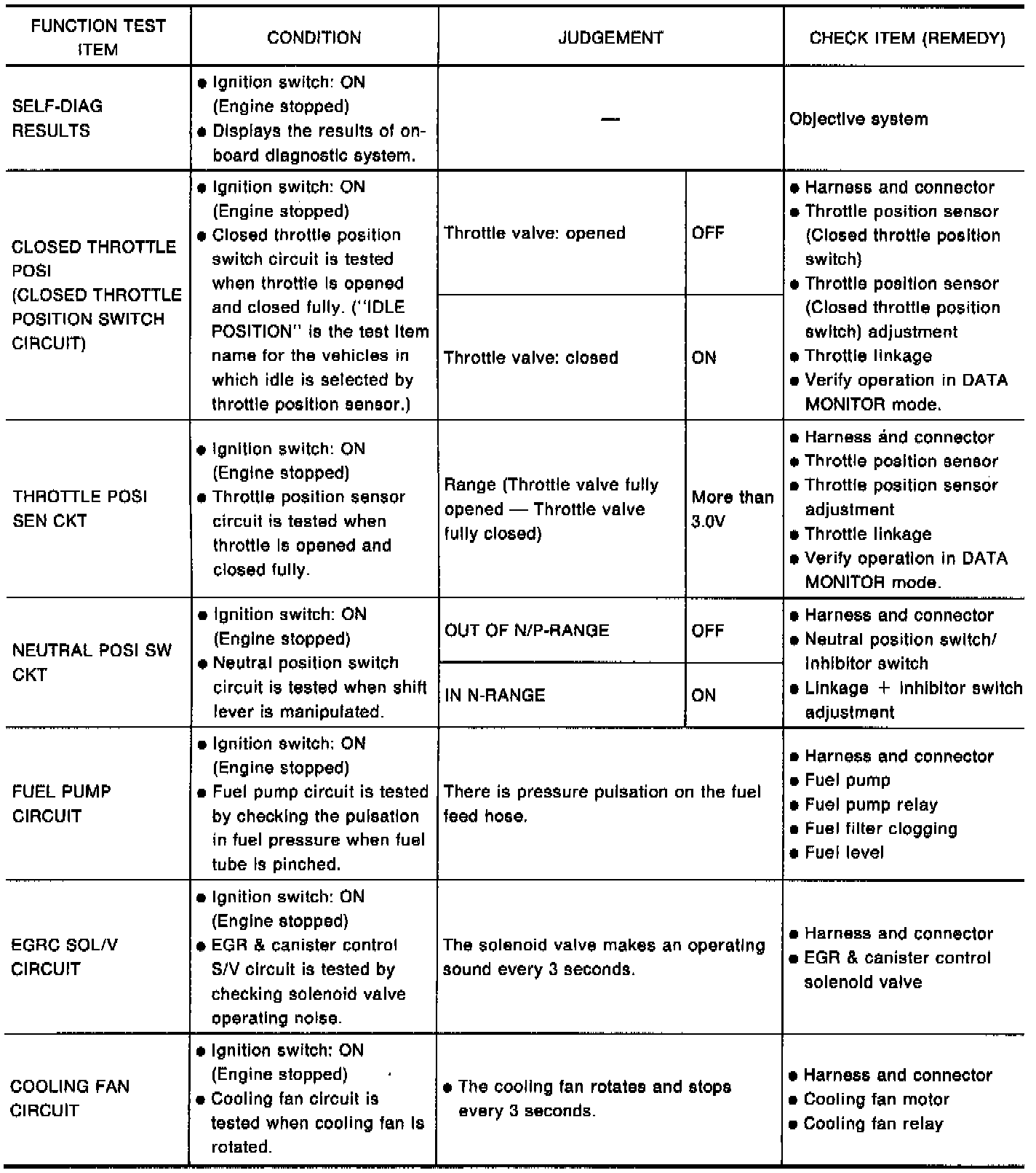

CONSULT Chart:
