Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Sentra (2 Door) L4-1998cc 2.0L DOHC MFI (SR20DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

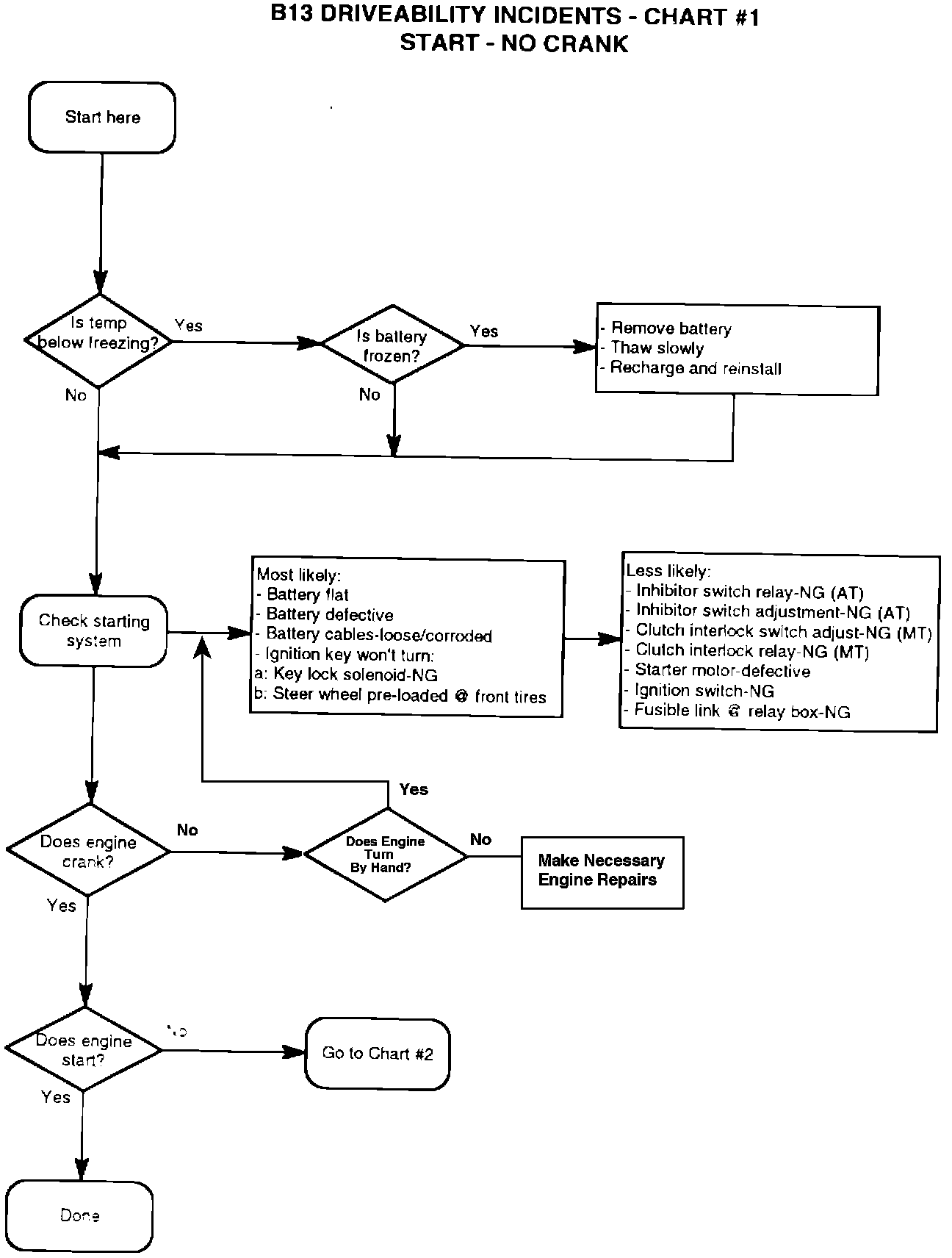

Chart 1 - Start-No Crank
Chart 1 - Start-No Crank
Chart 1:
