EGR Temperature Sensor
>>
Locations
EGR Temperature Sensor: Locations

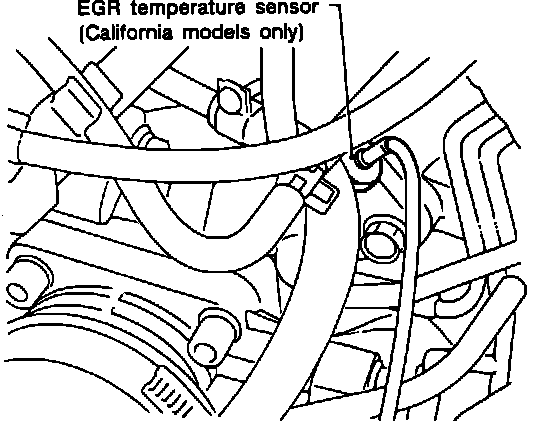

EGR Temperature Sensor Location:
California Only
Located near the throttle housing in the intake manifold exhaust passage.
