Home >> Nissan-Datsun >> 1994 >> Sentra (2 Door) L4-1998cc 2.0L DOHC MFI (SR20DE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Relays and Modules - Ignition System >> Ignition Relay >> Locations >> Ignition Relay 1

Ignition Relay 1

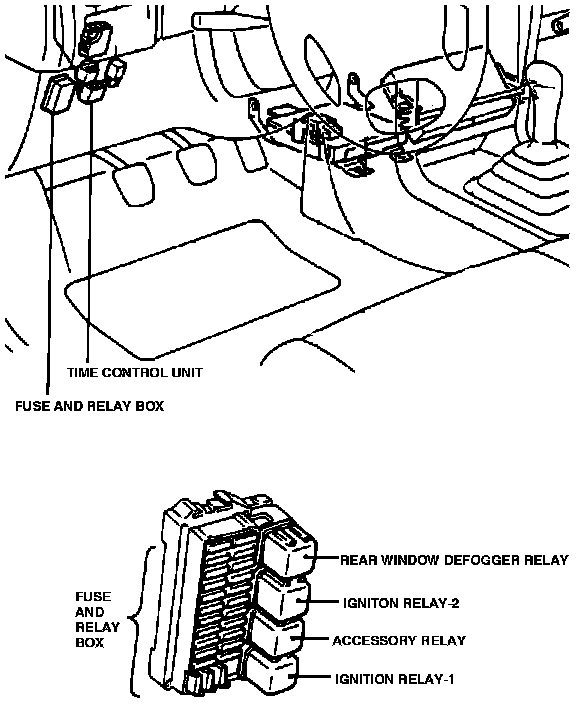

Ignition Relay Locations:




In Fuse & Relay Box, behind lower left-hand side of the instrument panel.
