Inspection and Adjustment

Gear End Play:

Clearance Between Baulk Ring And Gear - 1st, 4th, 5th Baulk Ring:

Clearance Between Baulk Ring And Gear - 2nd And 3rd Baulk Ring:

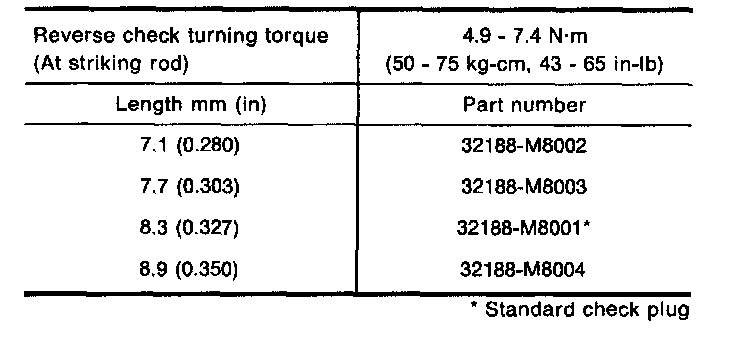

Available Reverse Check Plugs:

Available Case Covers:

Available Snap Ring - Input Shaft Front Bearing:

Available Snap Rings - Input Shaft 5th Synchronizer Hub:

Mainshaft C-ring:

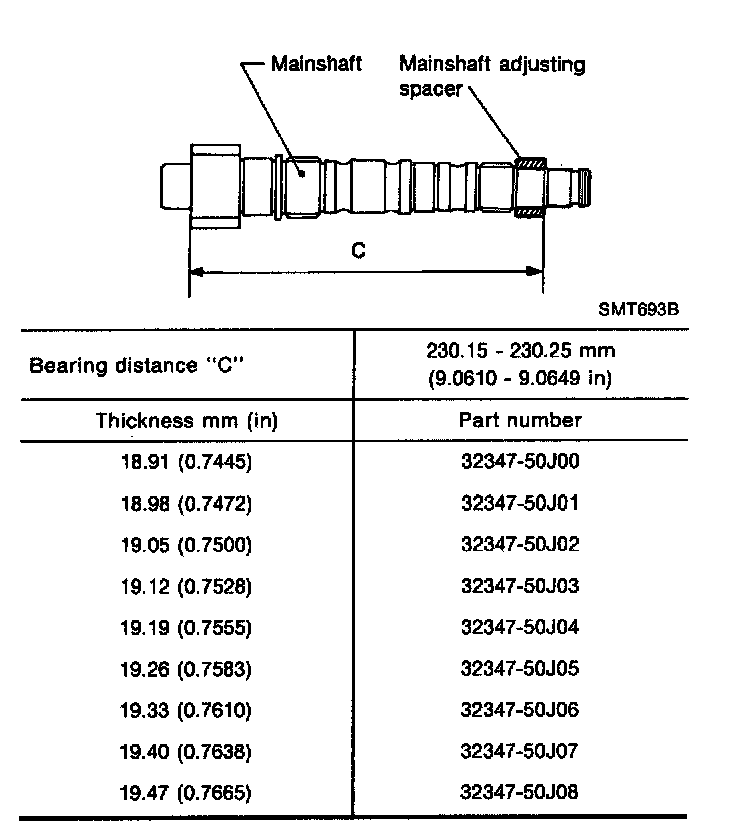

Mainshaft Bearing Adjusting Spacer:

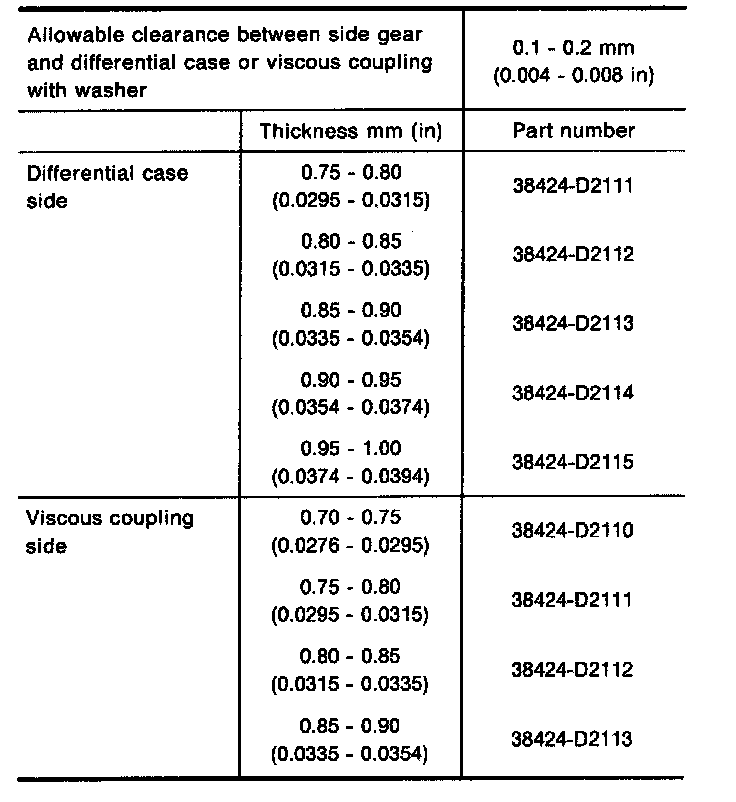

Differential Side Gear Thrust Washer (1 Of 2):

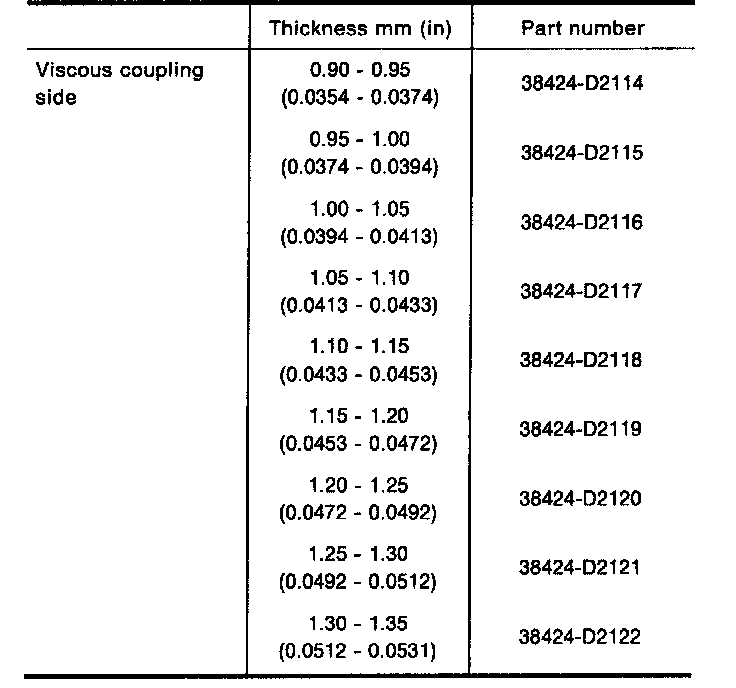

Differential Side Gear Thrust Washer (2 Of 2):

Input Shaft Braking Mechanism - Reverse Brake Cam:

Input Shaft Braking Mechanism - Reverse Brake Cam:

Bearing Preload:

Turning Torque (New Bearing):

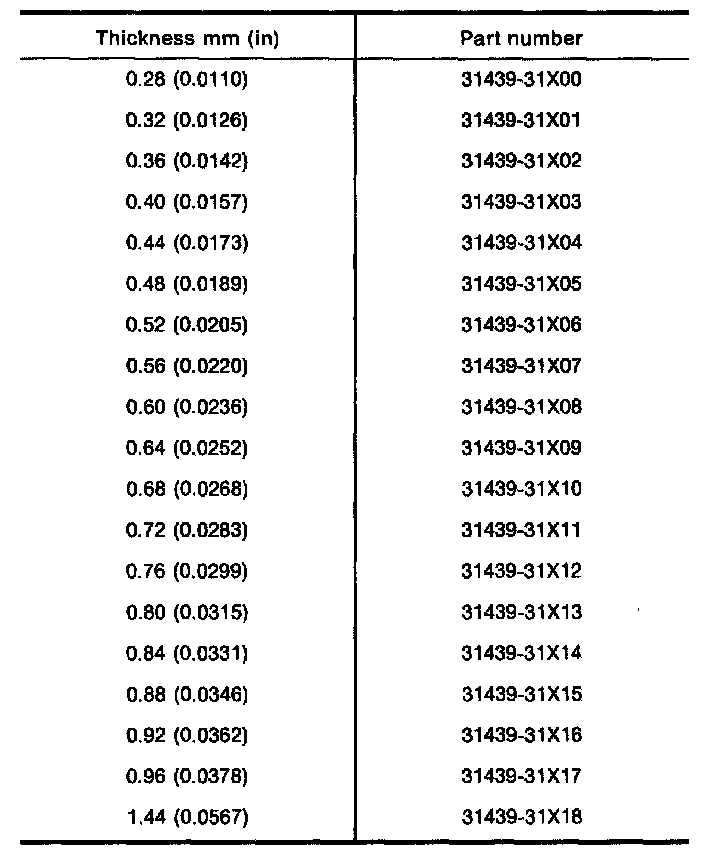

Available Shims - Differential Side Bearing Adjusting Shims:

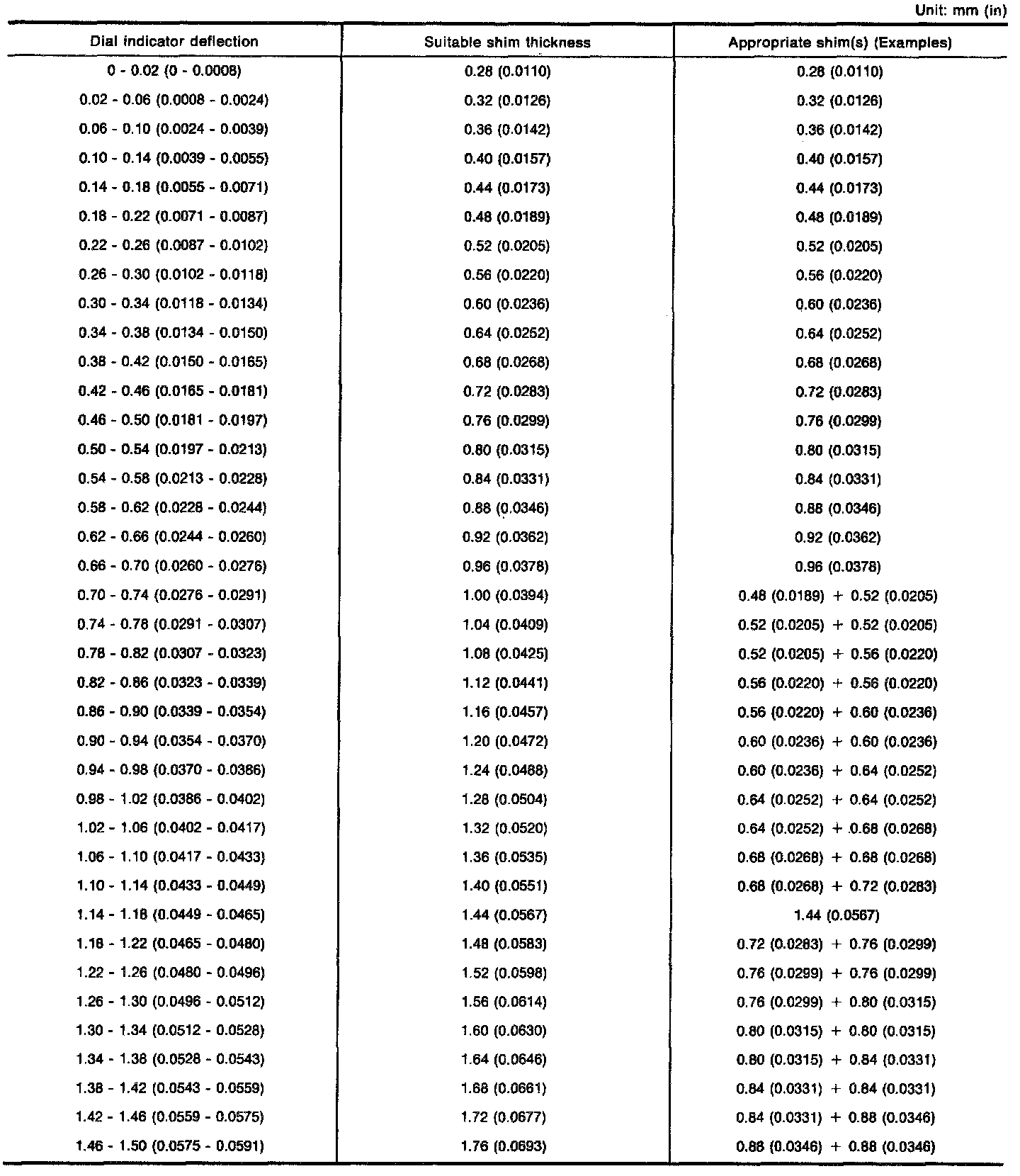

Available Shims - Table For Selecting Differential Side Bearing Adjusting Shims:
