ASSEMBLY
-
Install control valves.
For installation procedures, refer to "ASSEMBLY" of Control Valve Upper Body.
-

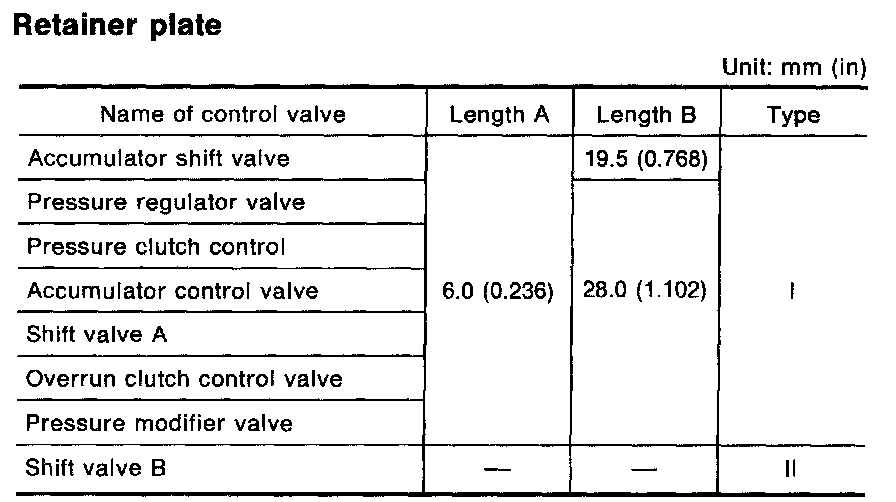

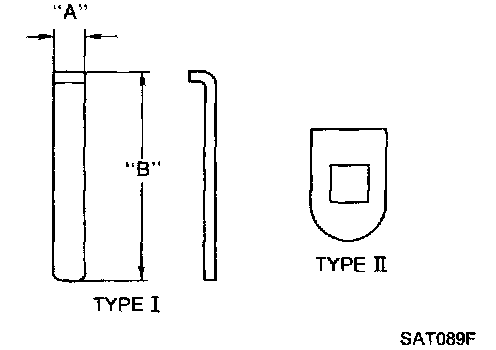

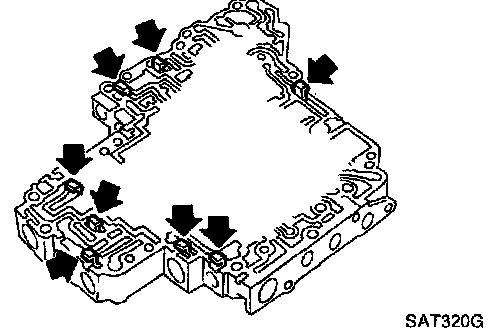

Install proper retainer plates
