Shift Interlock Solenoid: Testing and Inspection

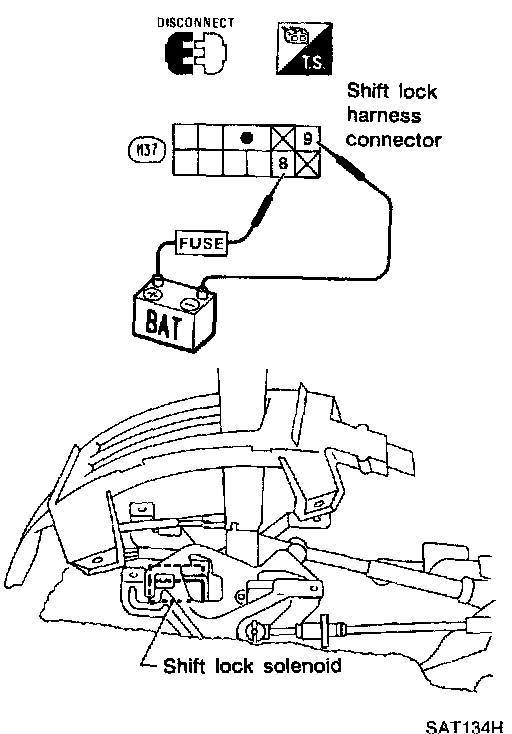

SHIFT LOCK SOLENOID
-
Check operation by applying battery voltage to shift lock harness connector.
