Diesel Data: Automotive Repair
Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Reclining Seats

Reclining Seats

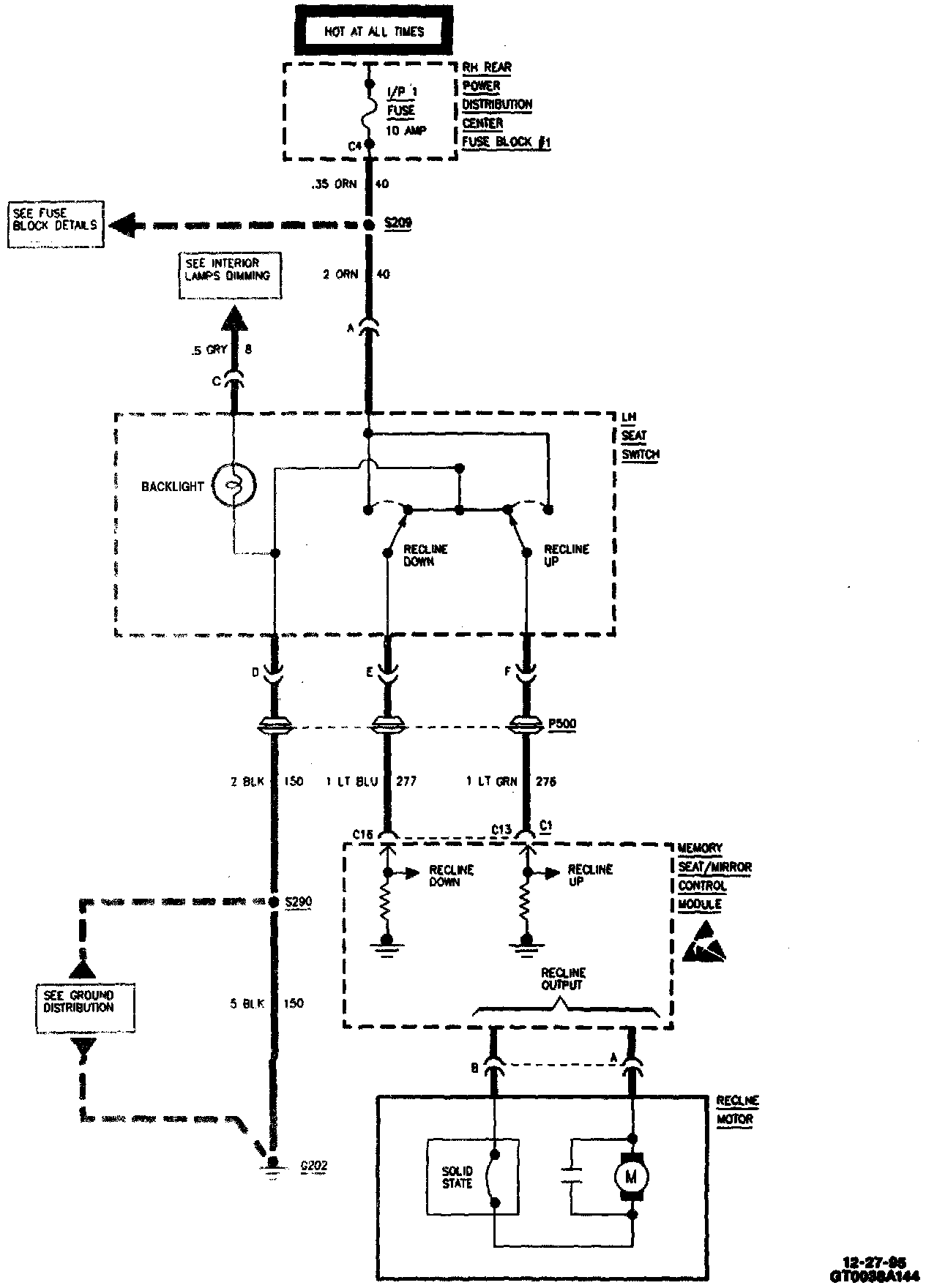

Reclining Seats:

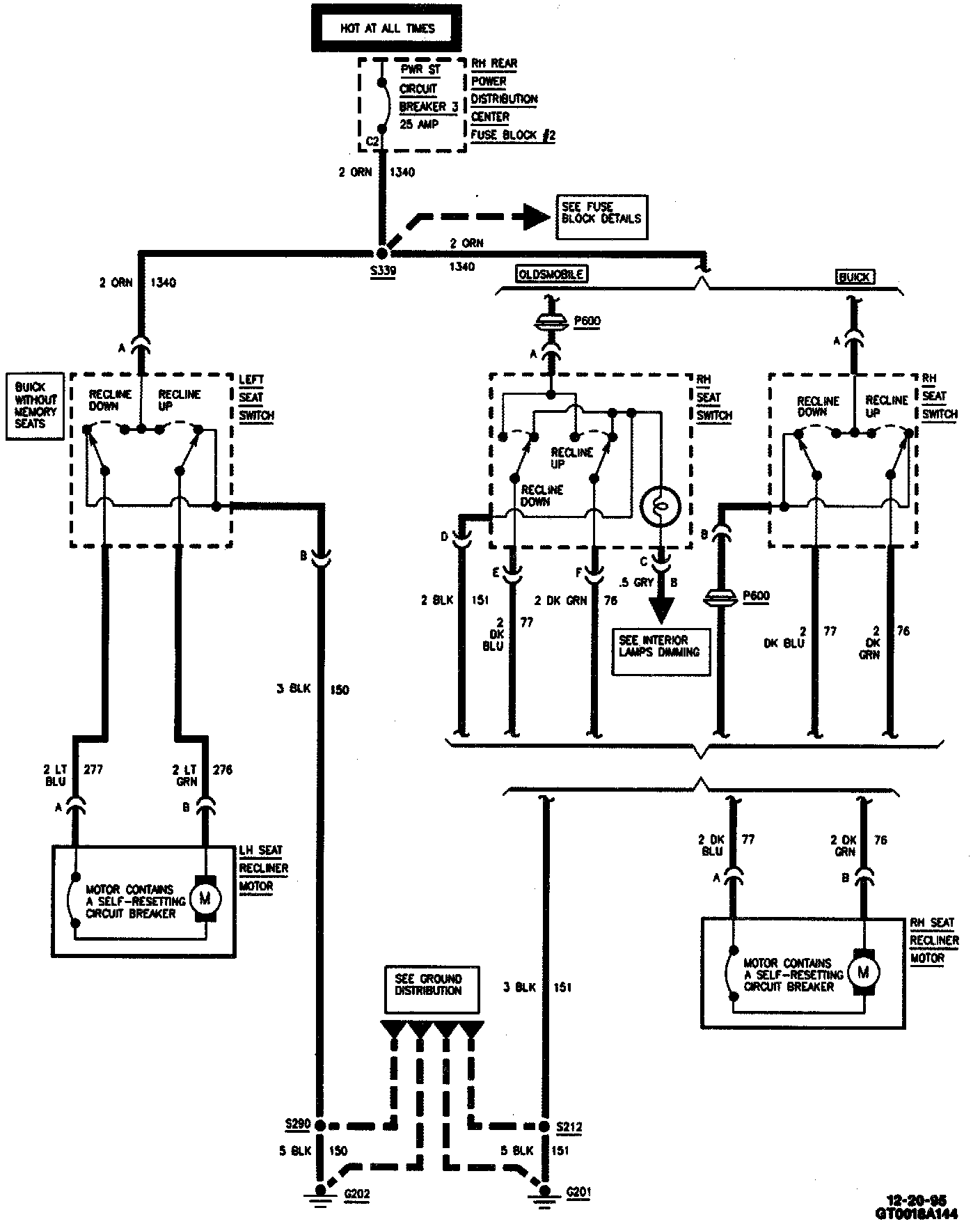

Reclining Seats - Driver Seat:
