Diesel Data
: Automotive Repair
Home
>>
Oldsmobile
>>
1999
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
>>
Driver Actuator
Driver Actuator

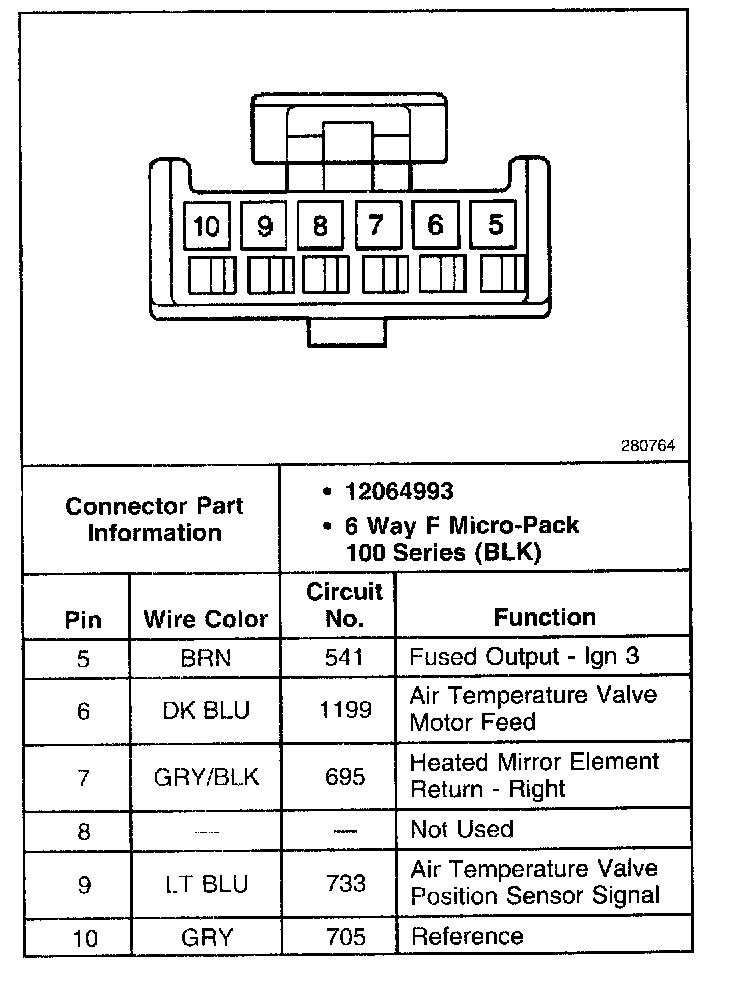

Driver Actuator:
