Power Door Lock Actuator
>>
Door Lock Actuator, LH Rear - C1
Door Lock Actuator, LH Rear - C1

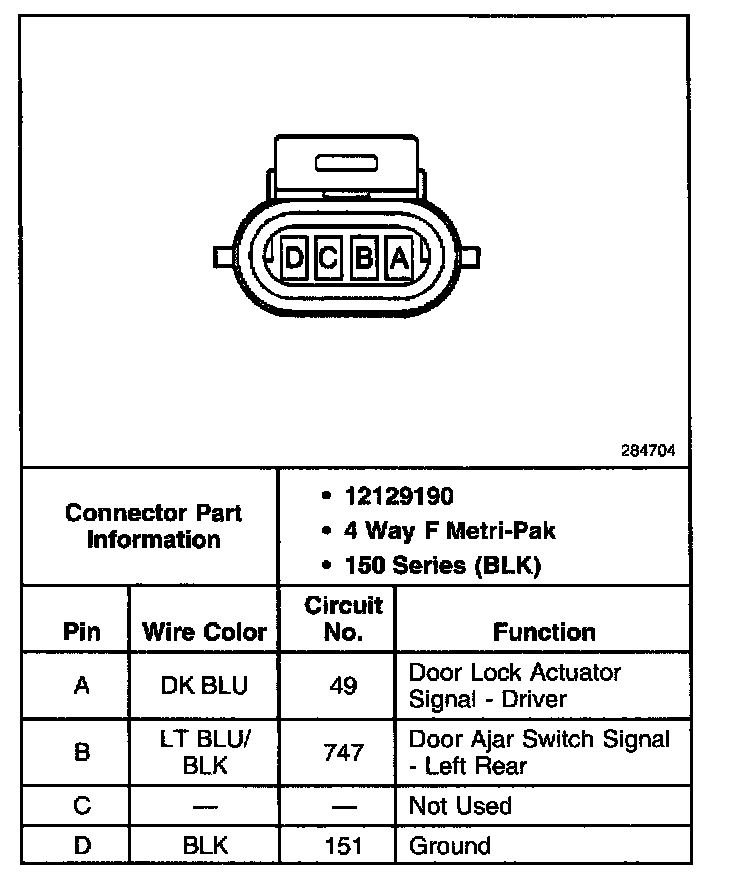

LH Rear Door Lock Actuator C1 (Oldsmobile):
