Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Seat Recline Motor, LH

Seat Recline Motor, LH

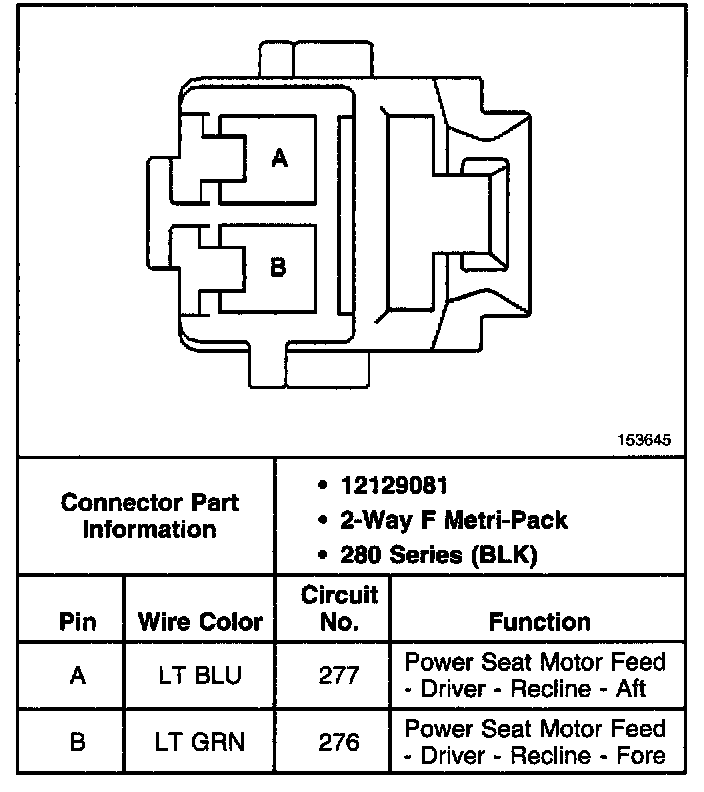

LH Seat Recline Motor:
