Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Speaker >> Front >> LH Front Door Speaker

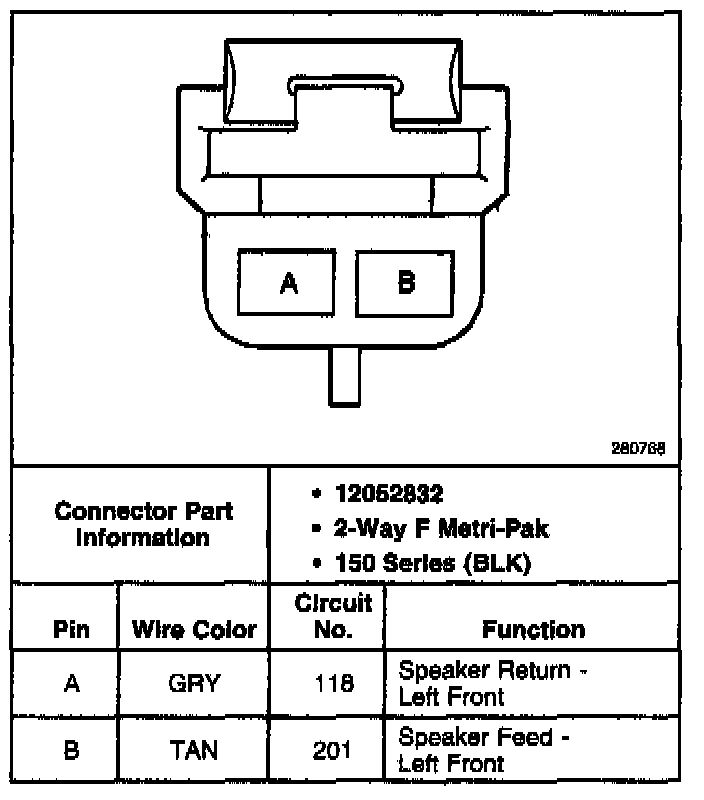

LH Front Door Speaker

LH Front Door Speaker:
