Lower Control Valve Body Fluid Passages

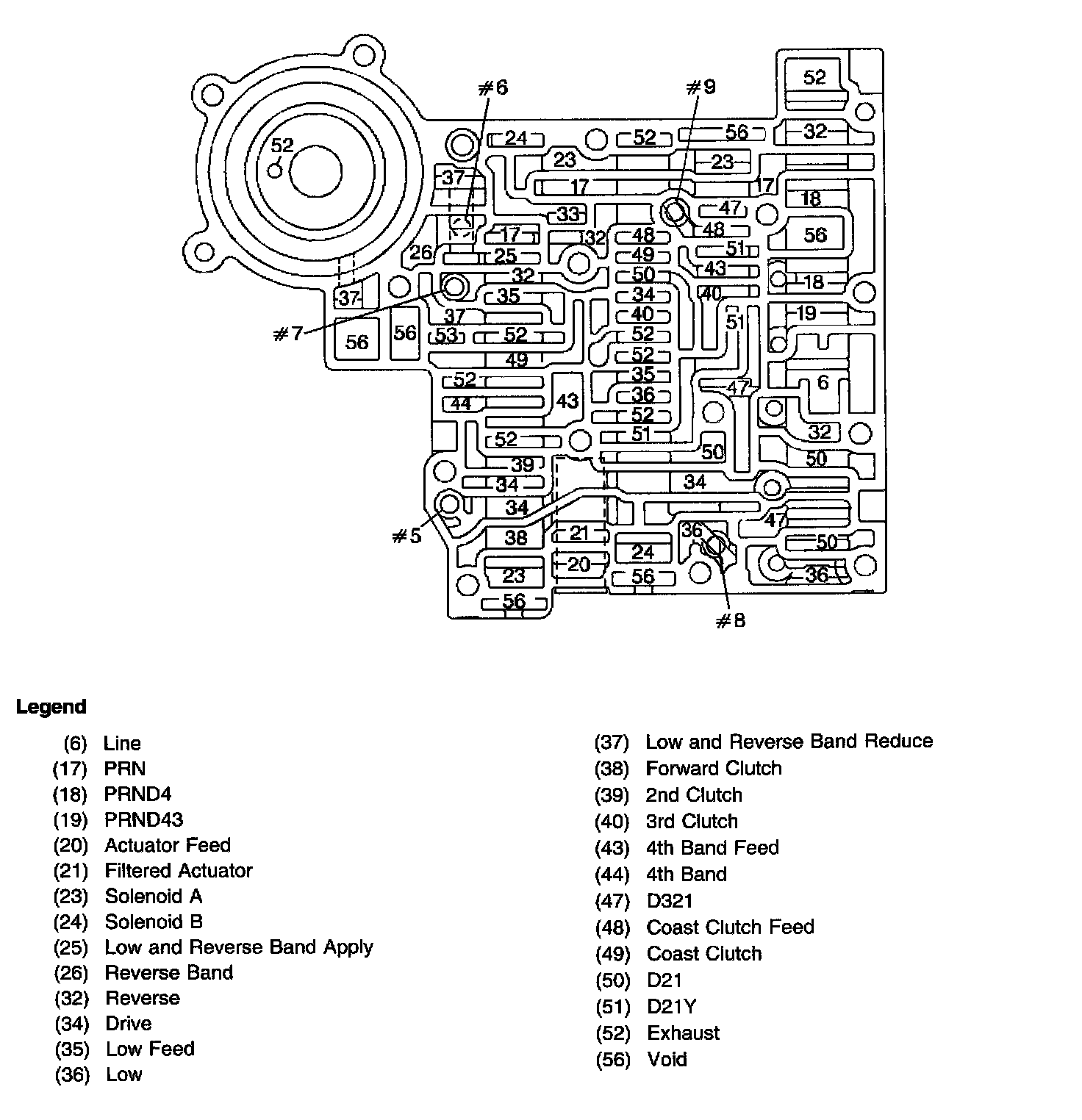

Lower Control Valve Body Fluid Passages (lower Channel Plate Side):
