Diesel Data: Automotive Repair
Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Fluid Passages >> Spacer Plate Fluid Passages

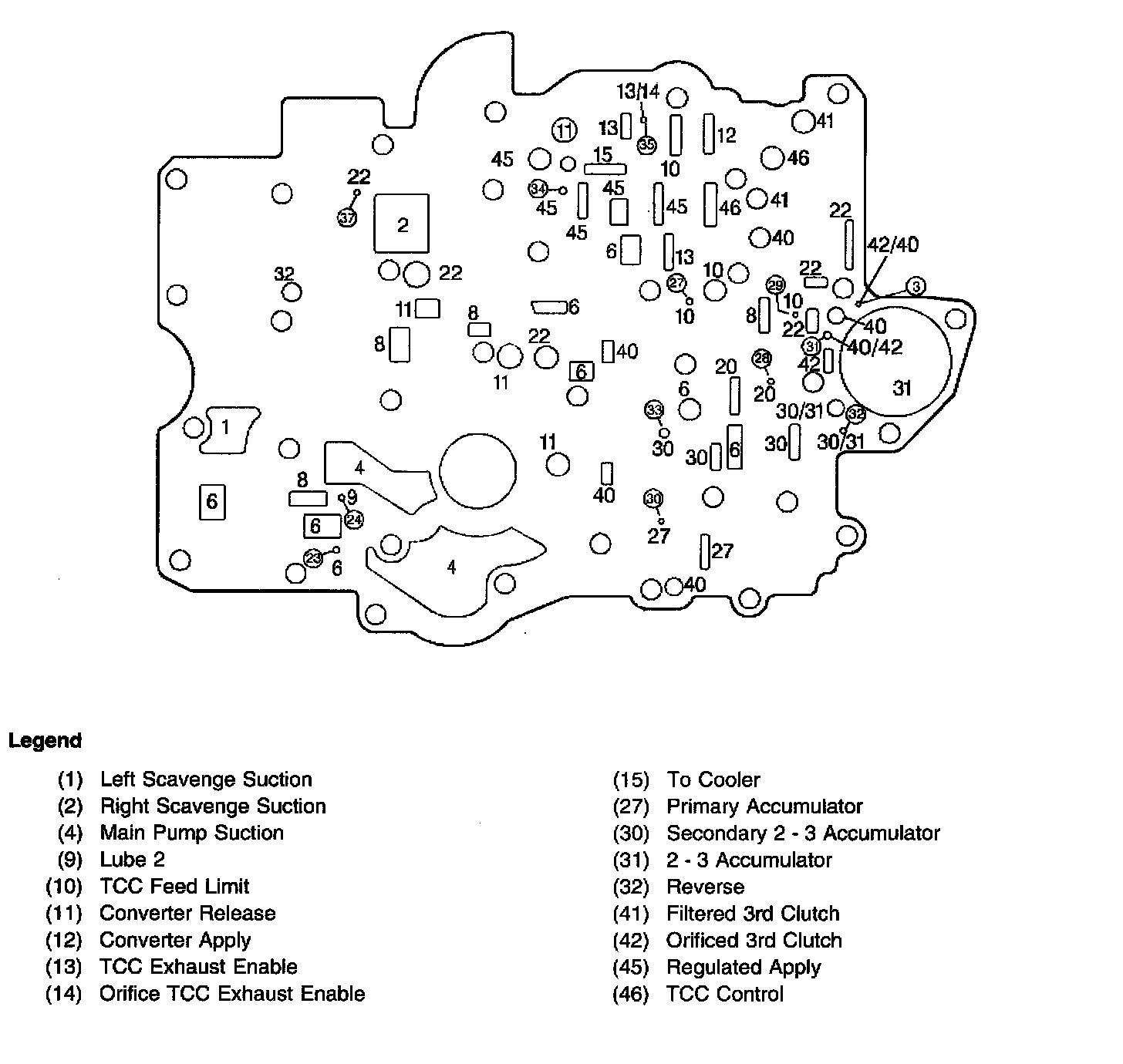

Spacer Plate Fluid Passages

Spacer Plate Fluid Passages (Secondary Pump Body and Upper Control Valve Body to Case Cover):
