Speaker Replacement - Rear Door

SPEAKER REPLACEMENT - REAR DOOR

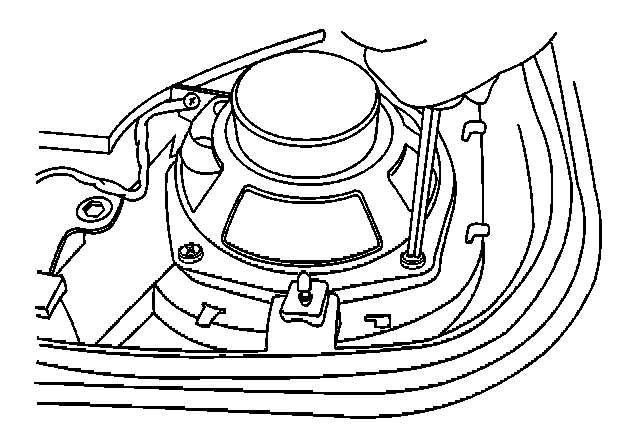

REMOVAL PROCEDURE




1. Remove the rear door trim panel.
2. Disconnect the electrical connector from the rear door speaker.
3. Remove the rear door speaker fasteners.
4. Remove the rear door speaker.

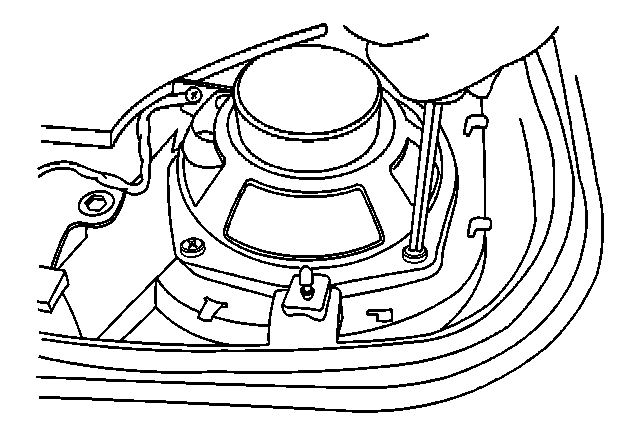

INSTALLATION PROCEDURE




1. Position the rear door speaker to the rear door trim panel.
2. Install the fasteners in order to secure the rear door speaker to the rear door trim panel.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the door speaker fasteners to 1.8 N.m (16 lb in).

3. Connect the electrical connector.
4. Install the rear door trim panel.
