Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Powertrain Control Module C2
Powertrain Control Module C2

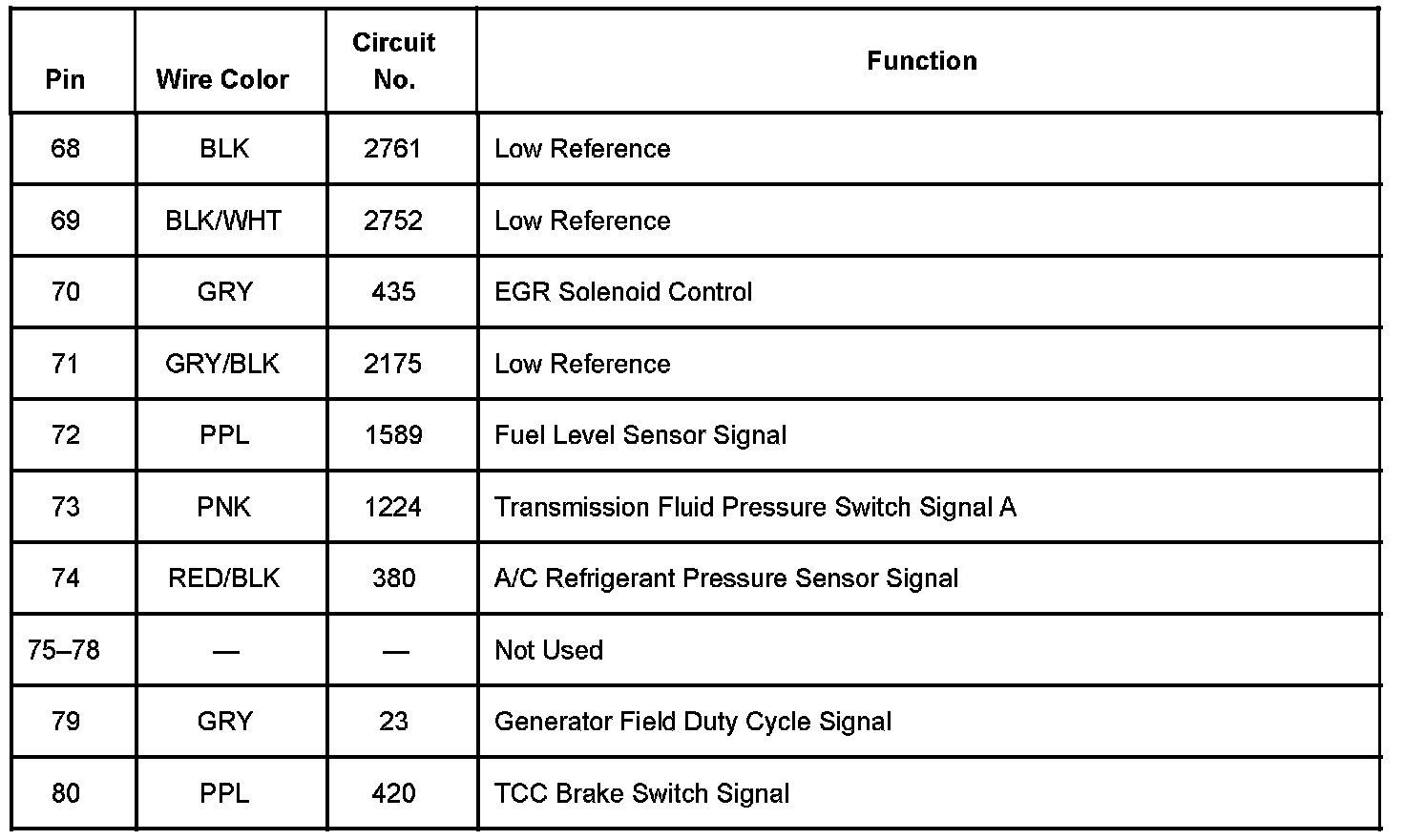

PCM Connector C2 Part 1:
PCM Connector C2 Part 2:
PCM Connector C2 Part 3:
PCM Connector C2 Part 4:
PCM Connector C2 Part 5:
