Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Speaker-LF Door
Speaker-LF Door

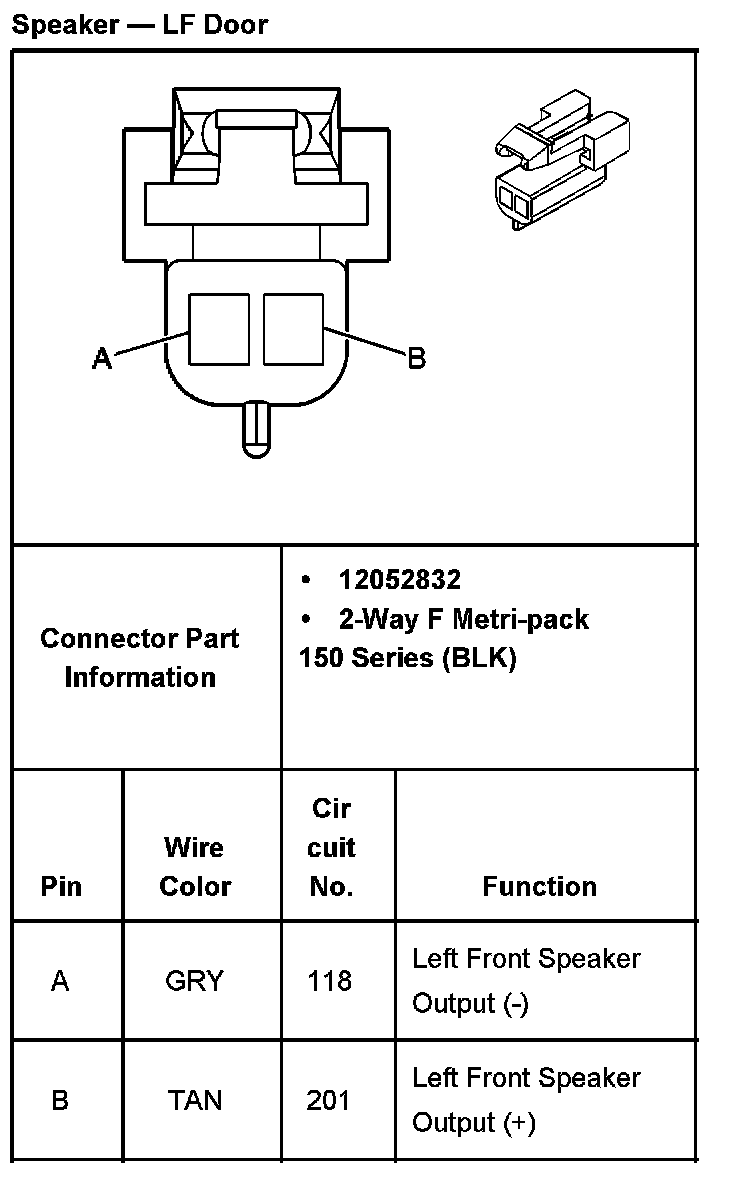

Speaker-LF Door:
