Diesel Data
: Automotive Repair
Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Speaker-RF Door
Speaker-RF Door

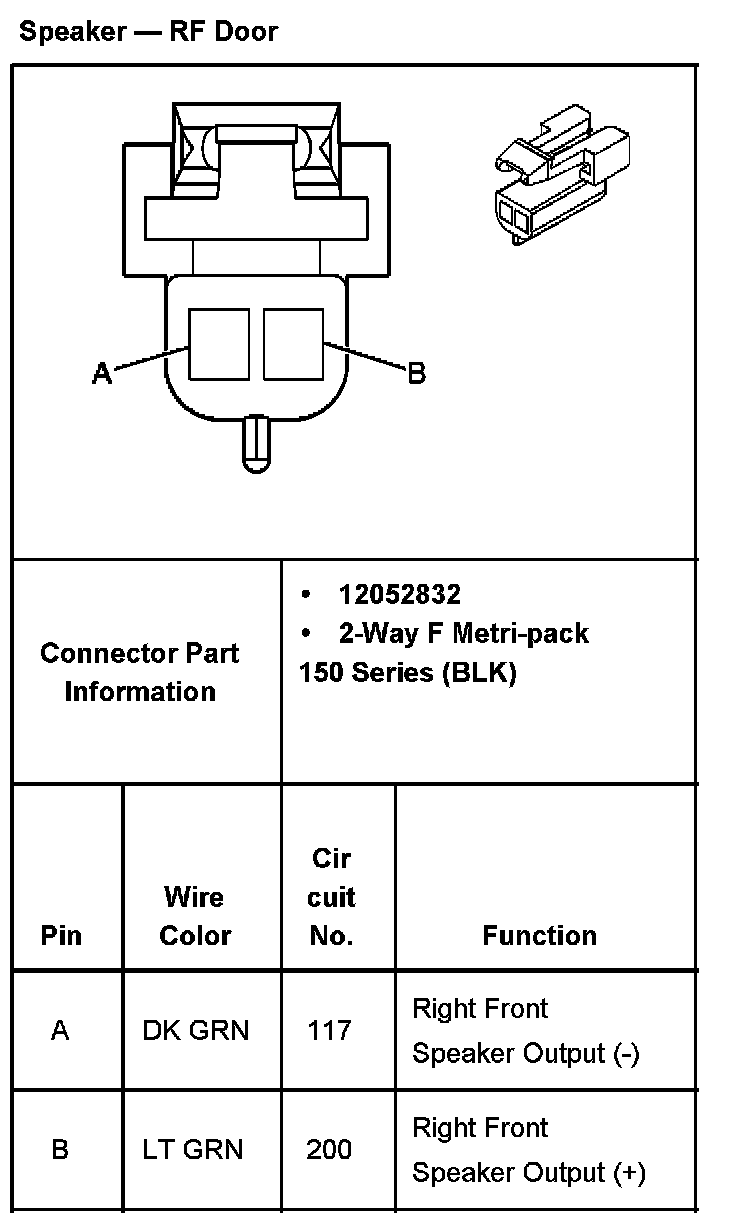

Speaker-RF Door:
